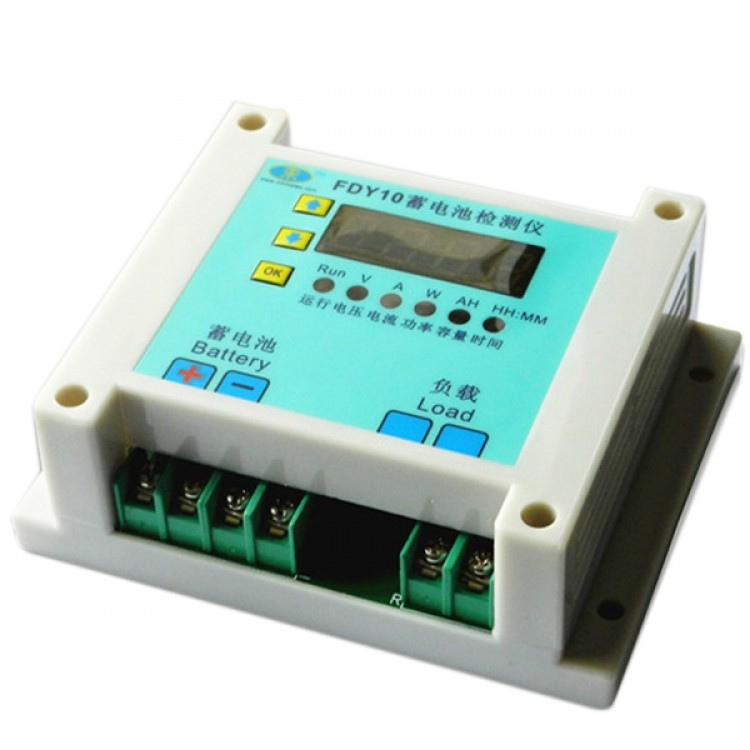

Battery Capacity Tester High Voltage Discharge Instrument FDY10-H1V-60V Battery for Electronic Load

Battery Capacity Tester High Voltage Discharge Instrument FDY10-H1V-60V Battery for Electronic Load

Description:
FDY10-HPortableBattery Tester is a compact, battery capacity can be detected, the specificCan be used to measure the battery discharge time and dischargeAn hours, it is aCombines the dual function of the detection and measurement of new measurement devices.It was adapted 1V ~ 60V voltage in the range fromThe different varieties of different types of batteries, the main measure:Nickel-cadmium batteries, nickel metal hydride batteries, lithium batteries, polymer batteries, lithium iron phosphate battery, 18650, lead-acid batteries, etc., measuring currentRange0.1A ~ 10A automatic constant current, discharge voltageSetting range0V~ 60VBetweenArbitrarily set,Battery discharge process, the product can be real timeShowIs dischargedBattery voltage,Electric current,Power,Hours and SafetyGrand totalTimeWait,BatteryAfter the discharge endCan be displayedAn hours and discharge timeAnd other measurements.

Features:
1. Host using a portable design, small volume, easy to carry
2.Using the host and separating the heat generating element design,Host guarantee continuous long job security
3. Measurement4-wire measurement, Eliminating the voltage drop generated due to cable resistance(BatteryAndEven between productWiring)Caused by measurement error,More accurate measurements
4. Shows the wayAdoptionLED andLEDDigital combination of the way,LED indicatesCurrently displayedContent, LED digital display of measured values, four LED digital display, displayResolutionCanReach0.01V, 0.01A
5. Auto rotate function, LED digital control switch automatically turns the display, using a set of LED digital tube, in order toImprove the efficiency of the display, using the auto rotate display measurement parameters, LED digital tube display with LEDLEDs indicate status changes vary
6. Voice prompts discharge end, when the batteryAfter discharge, the buzzerWill produceCall the police
7. Measuring less than 5V battery, you need an external power adapter to power!
8. Applicable battery pack: lithium polymer, lithium iron, lead-acid batteries, voltage: 12V, 16V, 24V,36V,48V
9. After a quick test function is enabled, you can set1-10Within minutes, the rapid detection of a reservoirApproximate capacity of the battery.

Performance indicators:
- Twenty oneDischarge current: 0.1A~ 10A Adjustable
- Twenty twoDischarge voltage: 0.1~ 60V adjustable, different voltage battery discharge voltage is not the same need to set their own to four 12V lead-acid batteries in series, for example,
- Termination voltage: 4 x 10.5 = 42V
- Voltage measurement accuracy: 4 LED digital display, 0.00V ~ 60.00V, accurate to 0.01V,ErrorFor±0.5%
- Current measurement accuracy: 4 display, 0.00A ~ 10.00A, accurate to 0.01A, error±1%
- Battery power measurement accuracy: 4 display, accurate to 0.1W
- Battery capacity measurement accuracy: accurate to within 100AH 0.01AH, more than 100AH, accurate to 0.1AH,Maximum display 999.9AH
- Battery discharge time display: hours (2): Minutes (2), such as 02:15, said the two hours 15 minutes
- Discharge end Tip: The flashing LED digital display + buzzer alarm in two ways, suggesting that the discharge end, press any key to stop the alarm, digital display battery capacity measurement results
- External cooling power resistors release type: natural cooling, high-power resistance temperature, note the use of in a safe location

Package Included:
- 1 x  Host
- 1 x 5V Adapter
- 1 x Power resistoe 1Ohm 200W
- 1 x Clip
- 1 x Resistance wiring board
