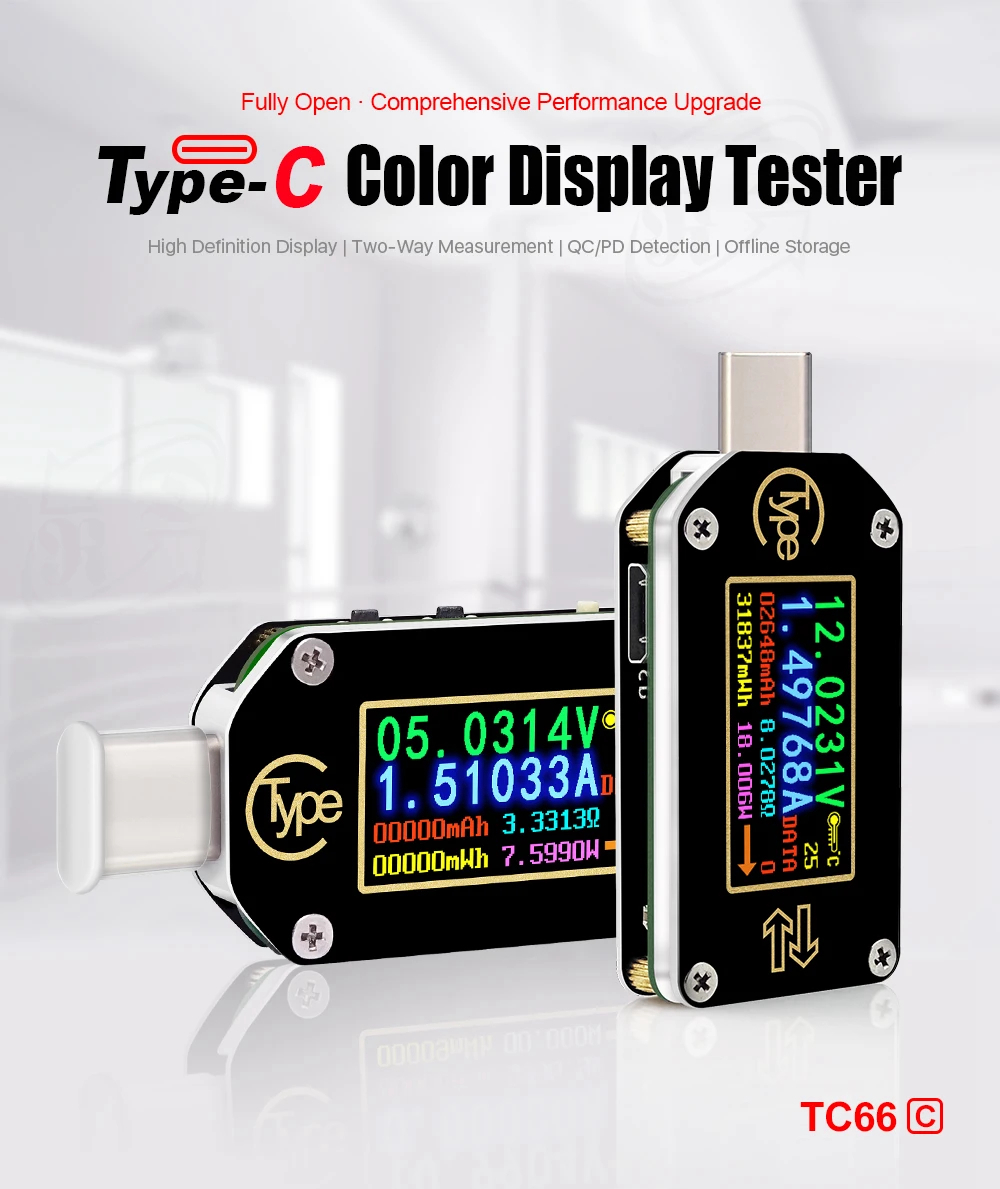

TC66C Type-C Current Voltage Tester Meter Fast Charging USB PD Trigger USB & Bluetooth Communication

TC66C Type-C Current Voltage Tester Meter Fast Charging USB PD Trigger USB & Bluetooth Communication

Technical Parameters:
- Model: TC66/TC66C

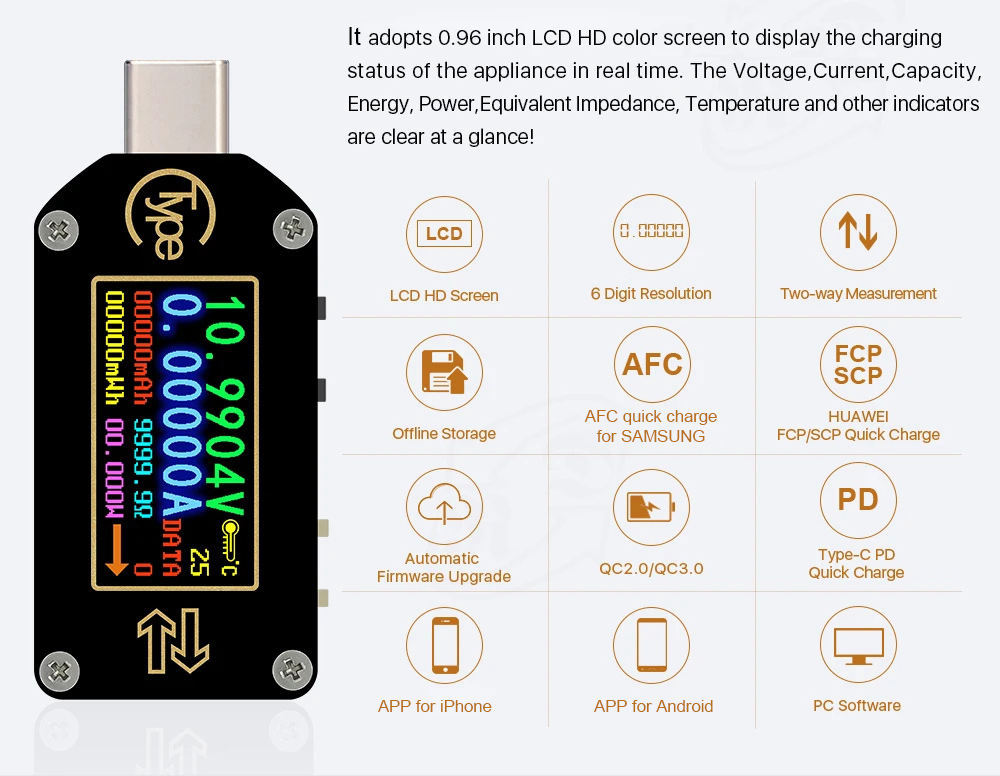

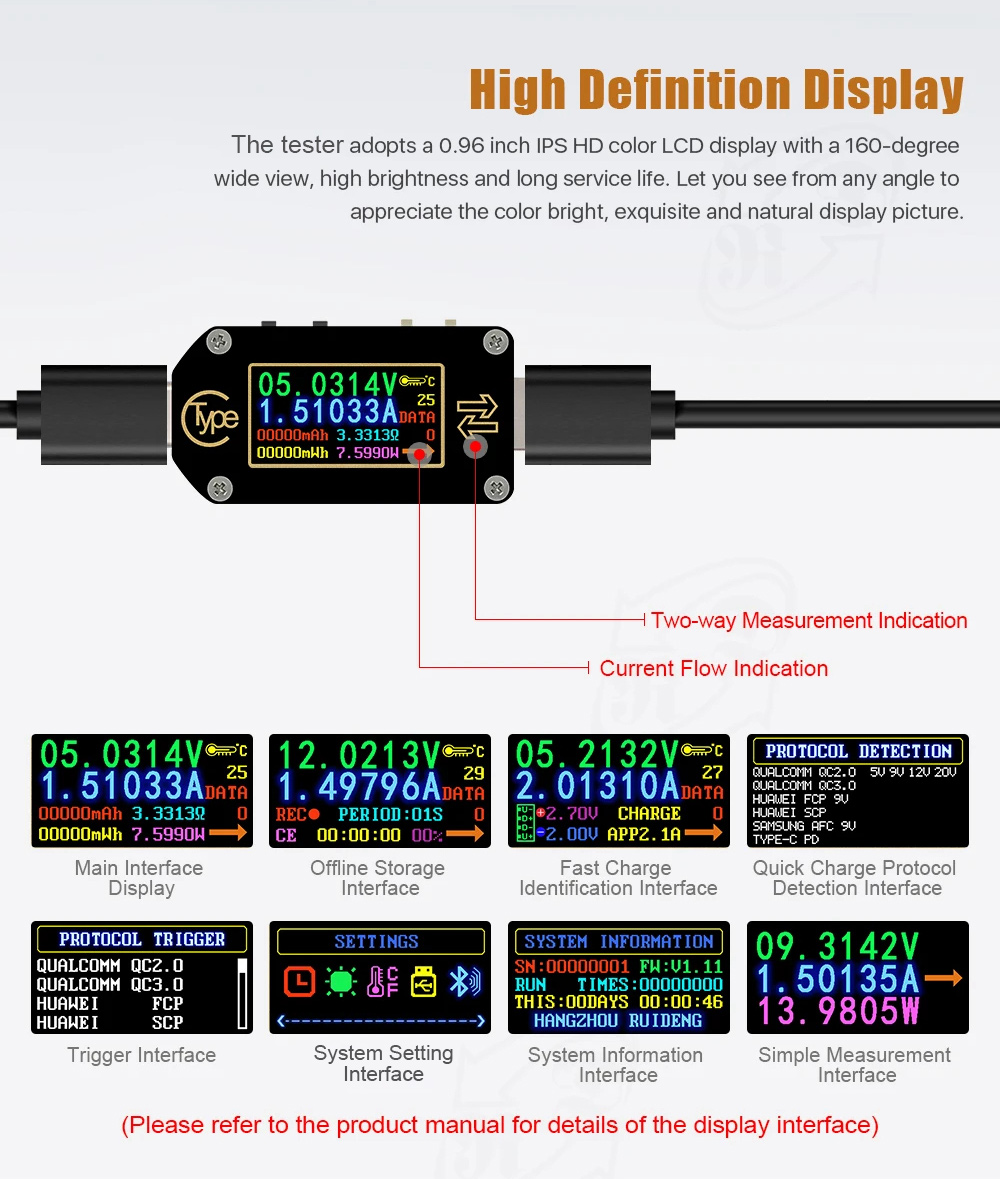

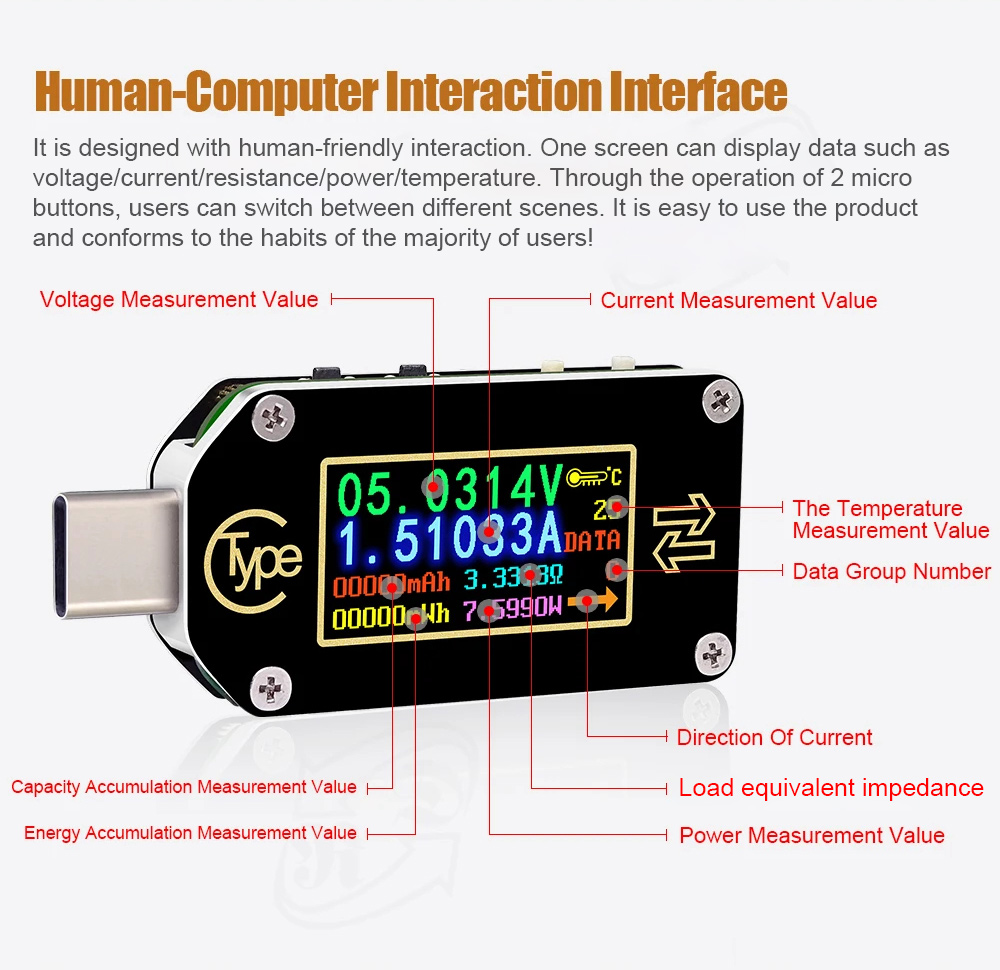

- Display screen: 0.96" color IPS display
- Screen resolution: 160*80
- Voltage measurement range: 0.005V-30.0000V

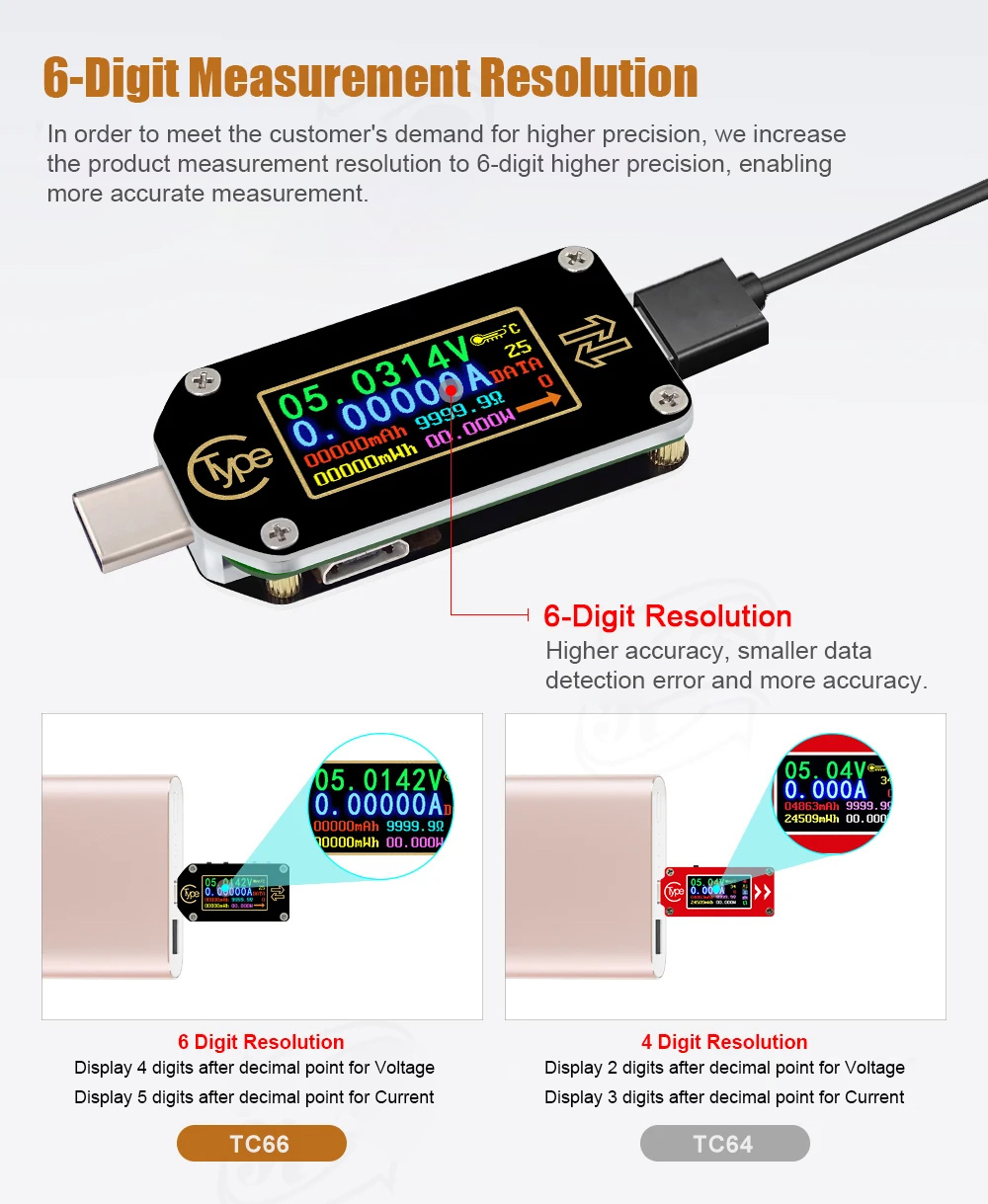

- Voltage measurement resolution: 0.0001V (0.1mV)

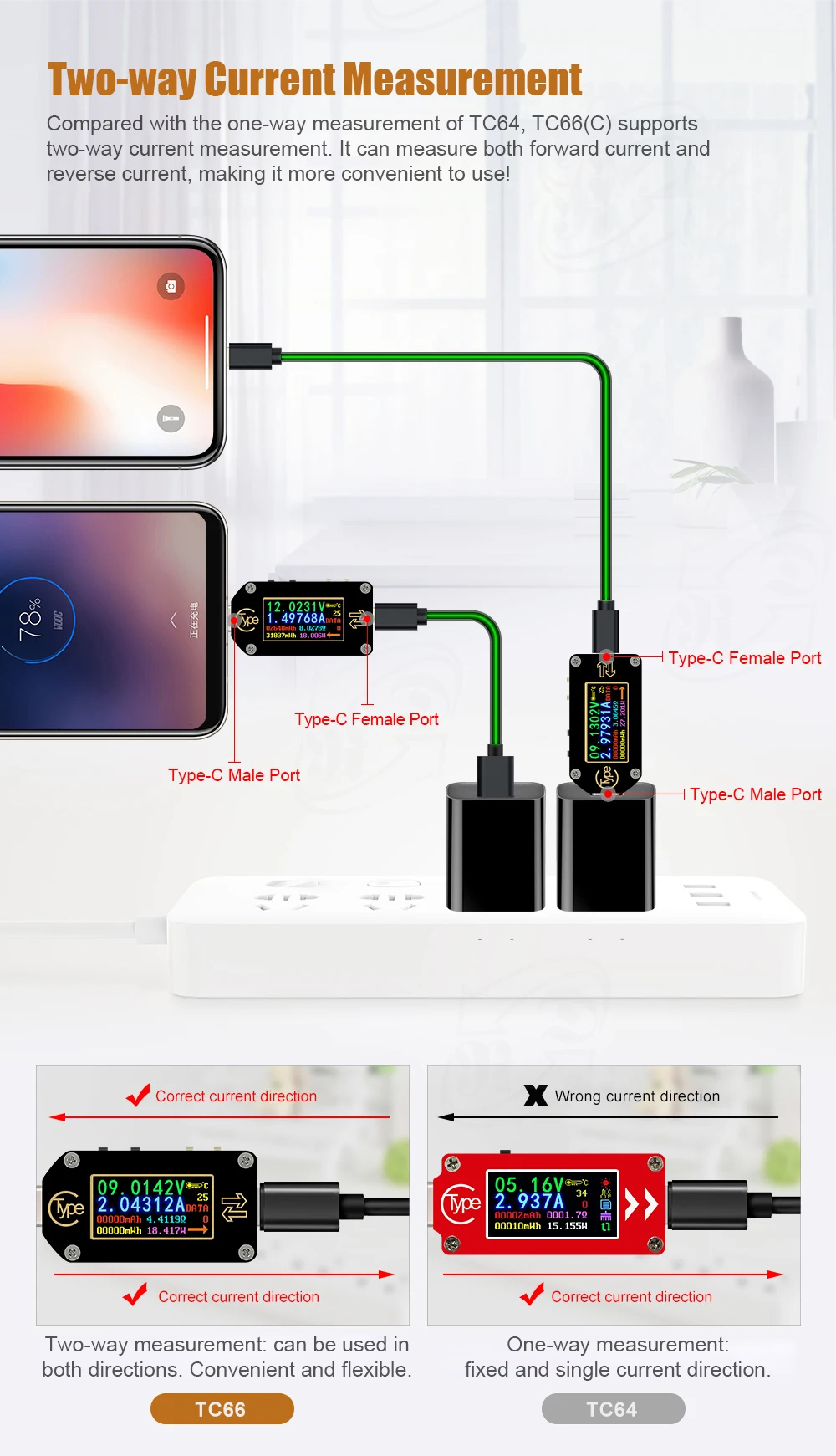

- Current measurement range: 0-5.00000A
- Current measurement resolution: 0.00001A (0.01mA)

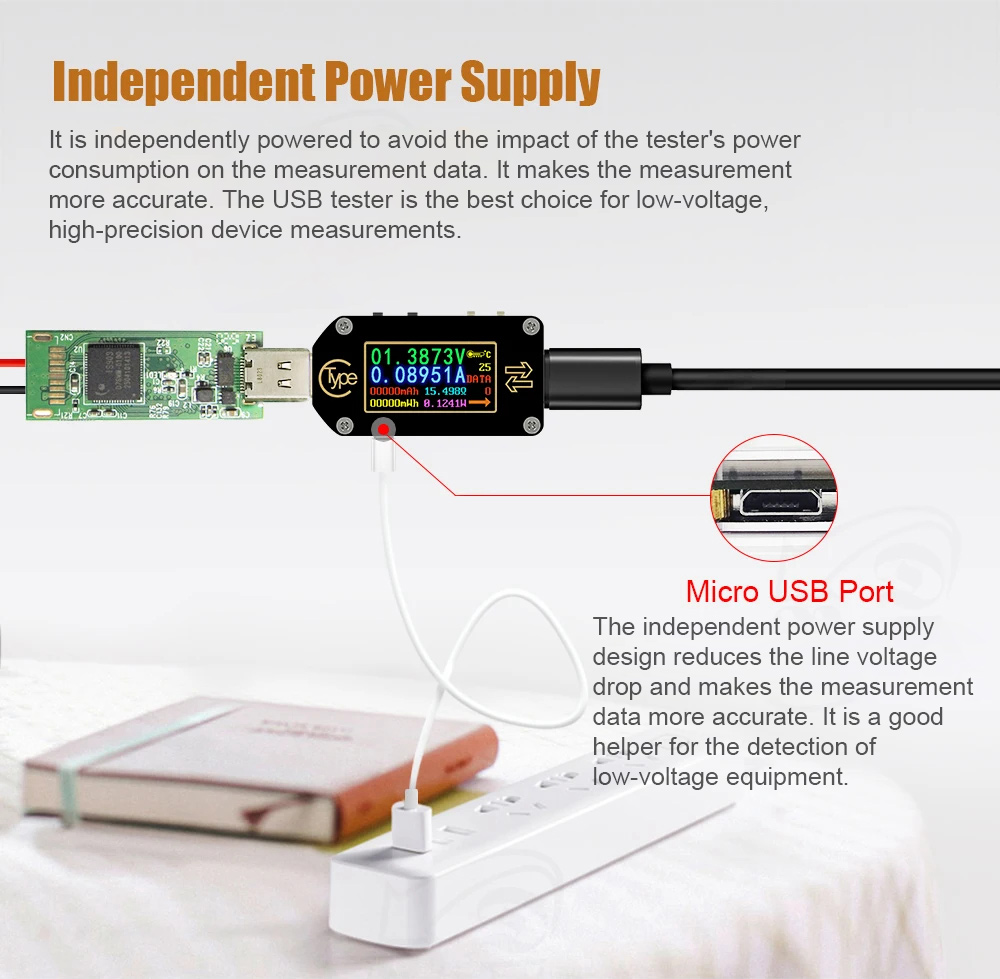

- Supply voltage: 3.5-24V
- Voltage measurement accuracy: ±(0.05％+20digits at 23℃)
- Capacity accumulation range: 0-99999mAh
- Current measurement accuracy: ±(0.1％+30 digits, at 23℃)
- Energy accumulation range: 0-99999mWh-999.99Wh
- Power measurement range: 0-150W
- Load impedance range: 1Ω-9999.9Ω
- Refresh rate: 2Hz
- Temperature measurement range: 0℃~80℃/32℉~176℉
- Working temperature range: 0~45℃/32℉~113℉
- Automatic screen off time: 0-9mins

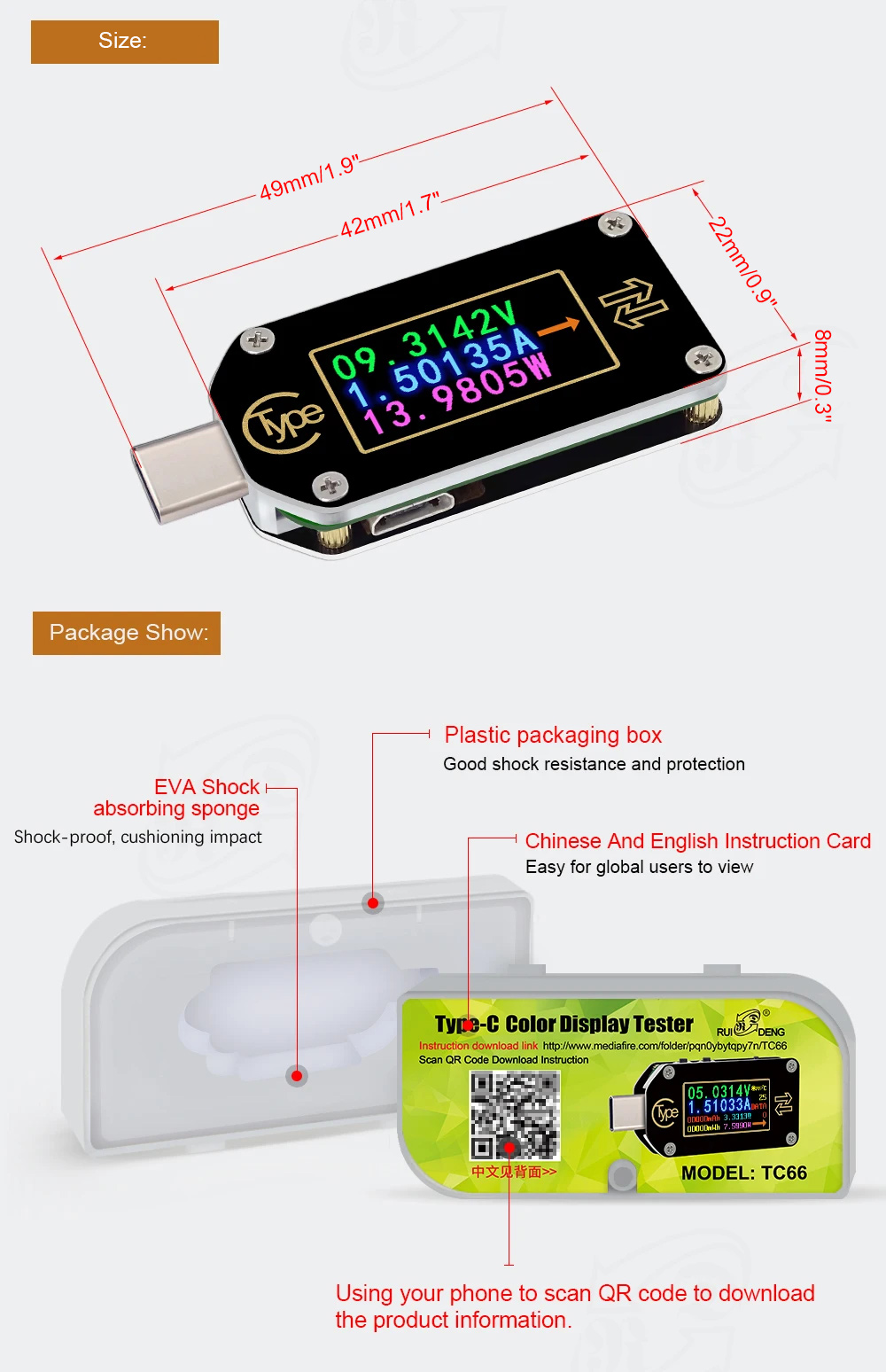

- Dimensions: 49mmx22mmx8mm
- Product weight: about 8g

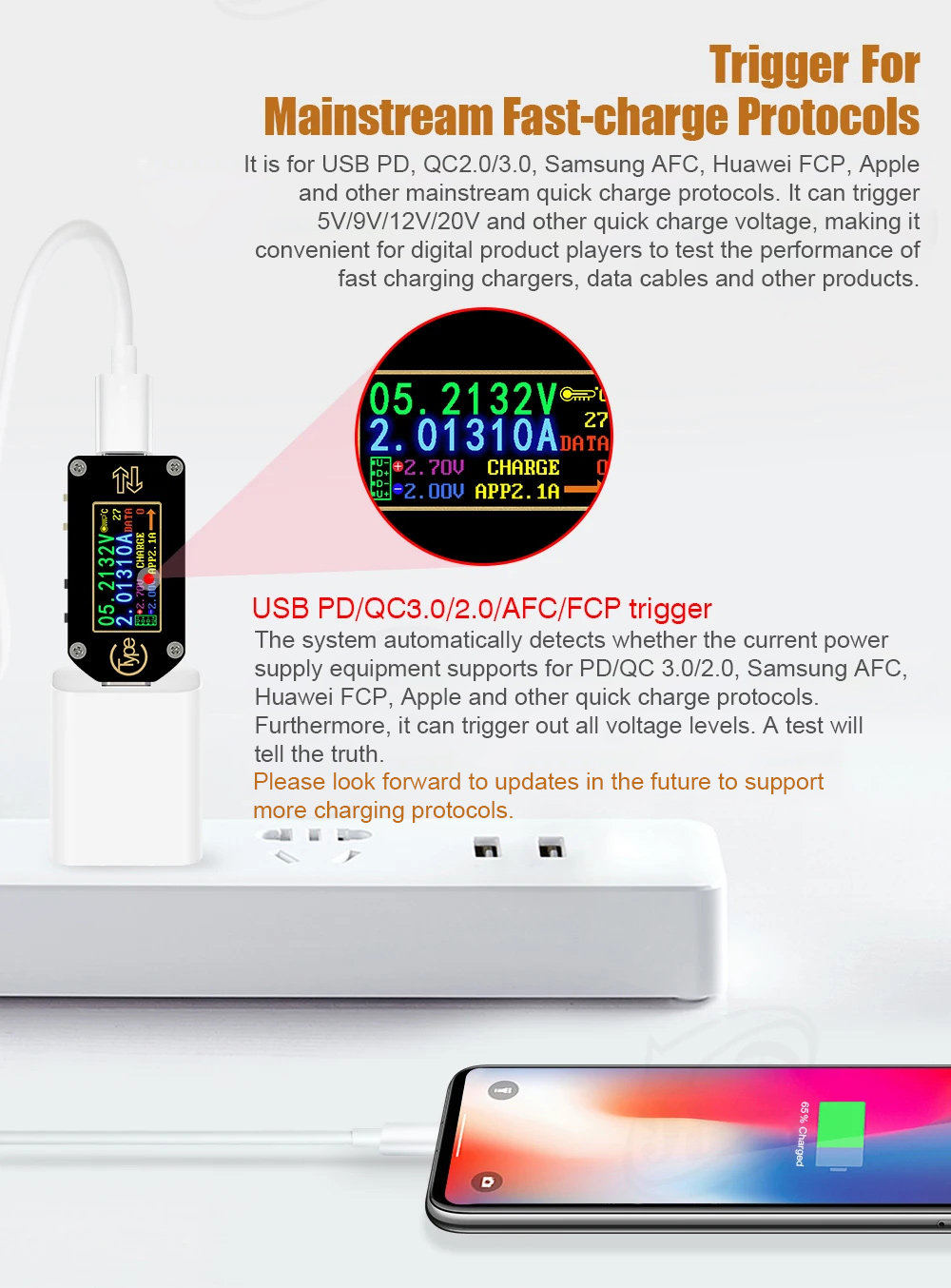

- Quick charge recognition mode: QC2.0, QC3.0, for Apple 2.4A/2.1A/1A/0.5A, Android DC and Samsung

Package Included:
- 1 x USB meter
- 1 x Plastic box

Packaging Details:
- G.W.: 0.2kg

Note:
- You can scan the QR code of the product to download the Chinese/English manual.

Download:
1. Instructions:

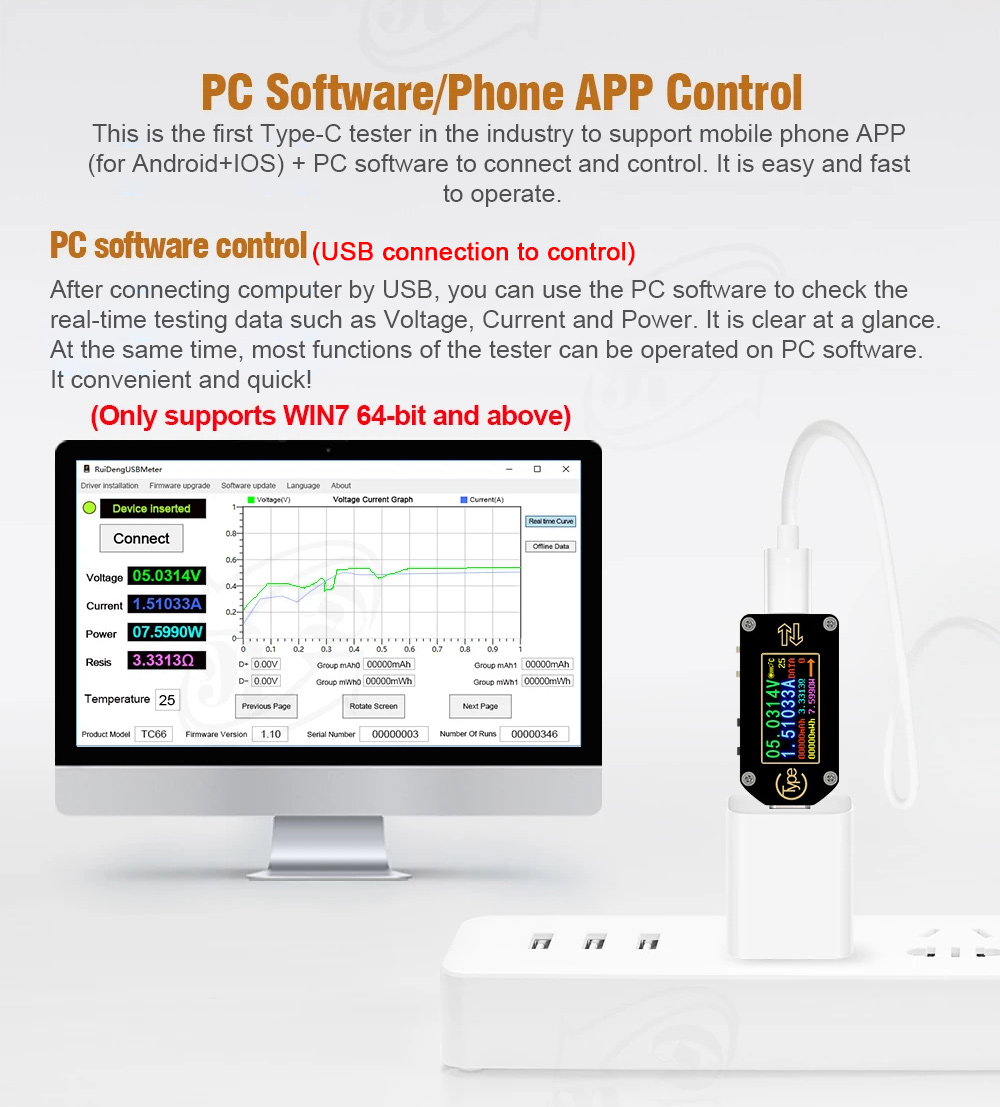

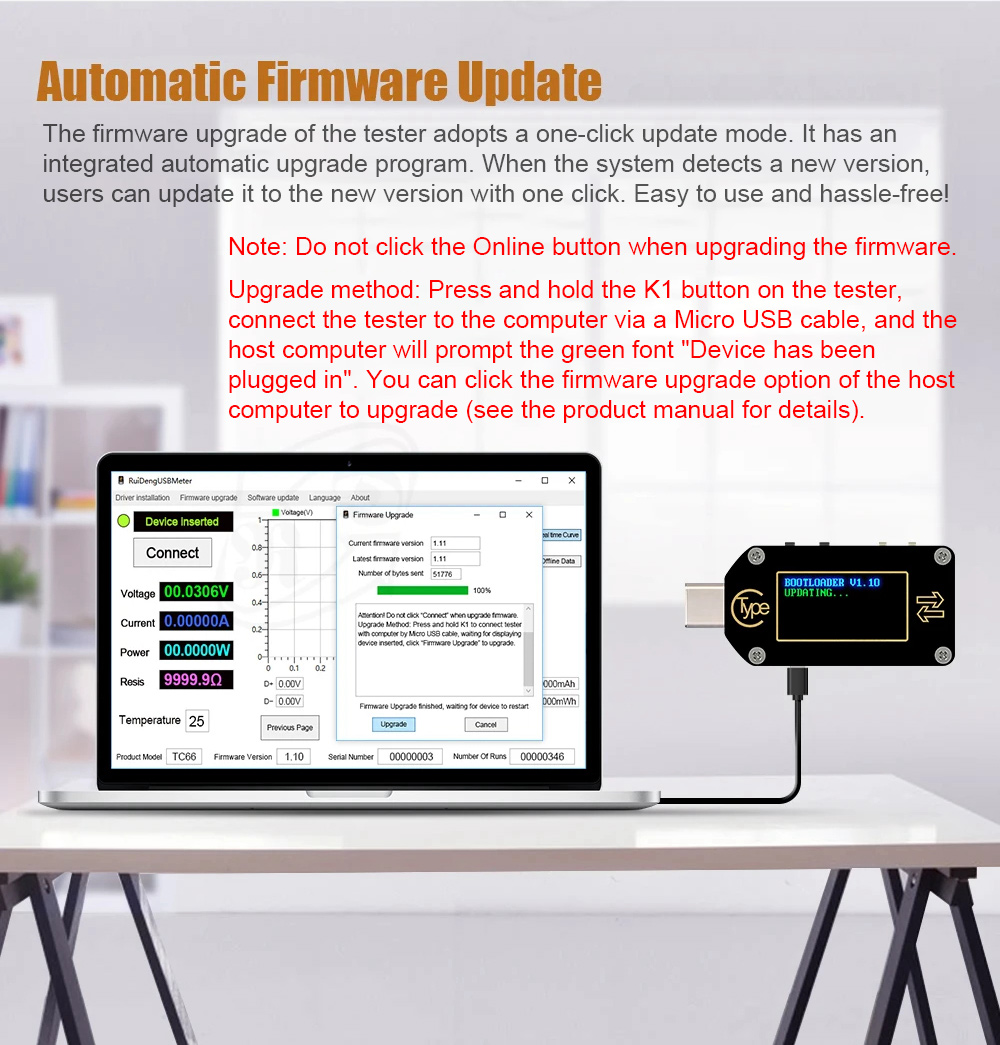

User manual, PC software installation instructions and PC software and APP for Android:
- Main link: http://www.mediafire.com/folder/pqn0ybytqpy7n/TC66
- Backup link: https://drive.google.com/drive/folders/1JS4mnXdM_VRUYa0ueRQUDR69b1_Lt7iG?usp=sharing

2. Download APP:

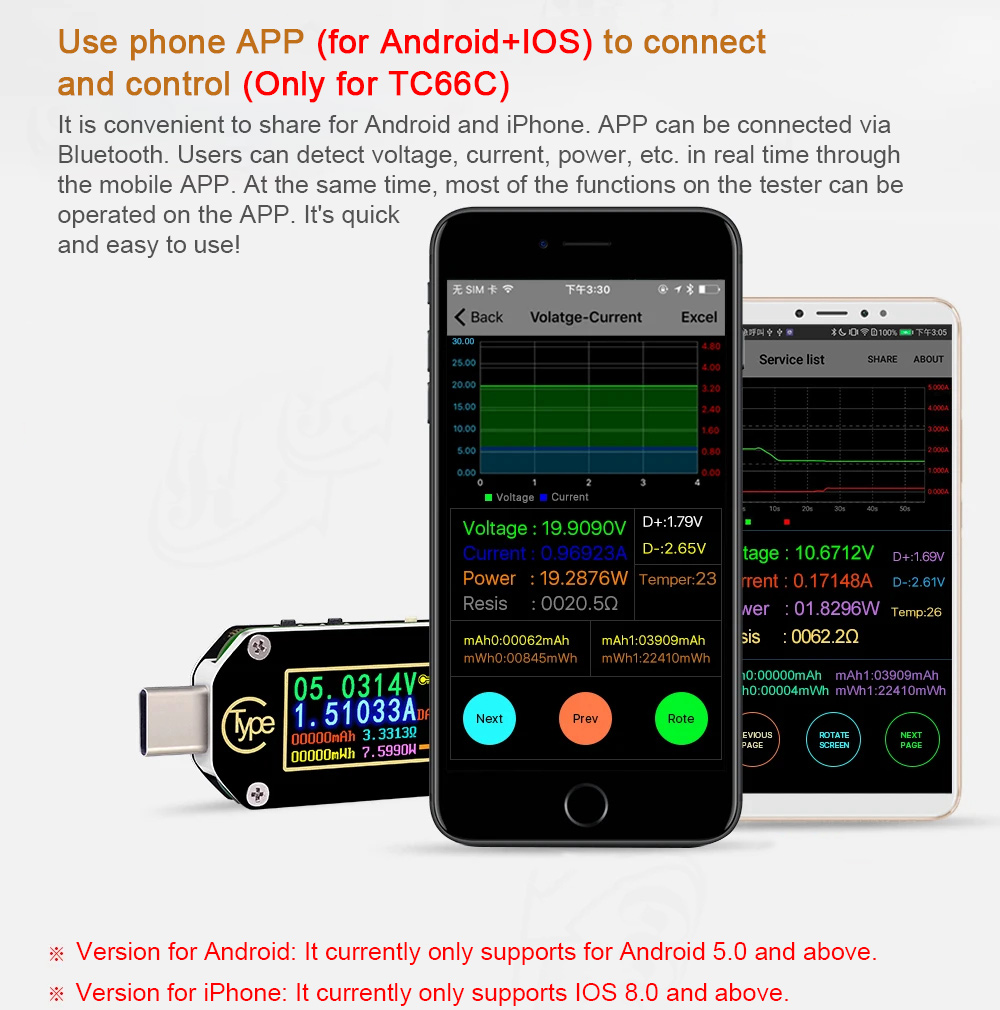

- APP for IOS: search "TC66C" in APP store for iPhone
- APP for Android: search "RuiDeng" in Google Play
