FNB38 USB Voltage Current Tester Meter Voltmeter Ammeter For USB PD Fast Charging Protocol Detection
Description:

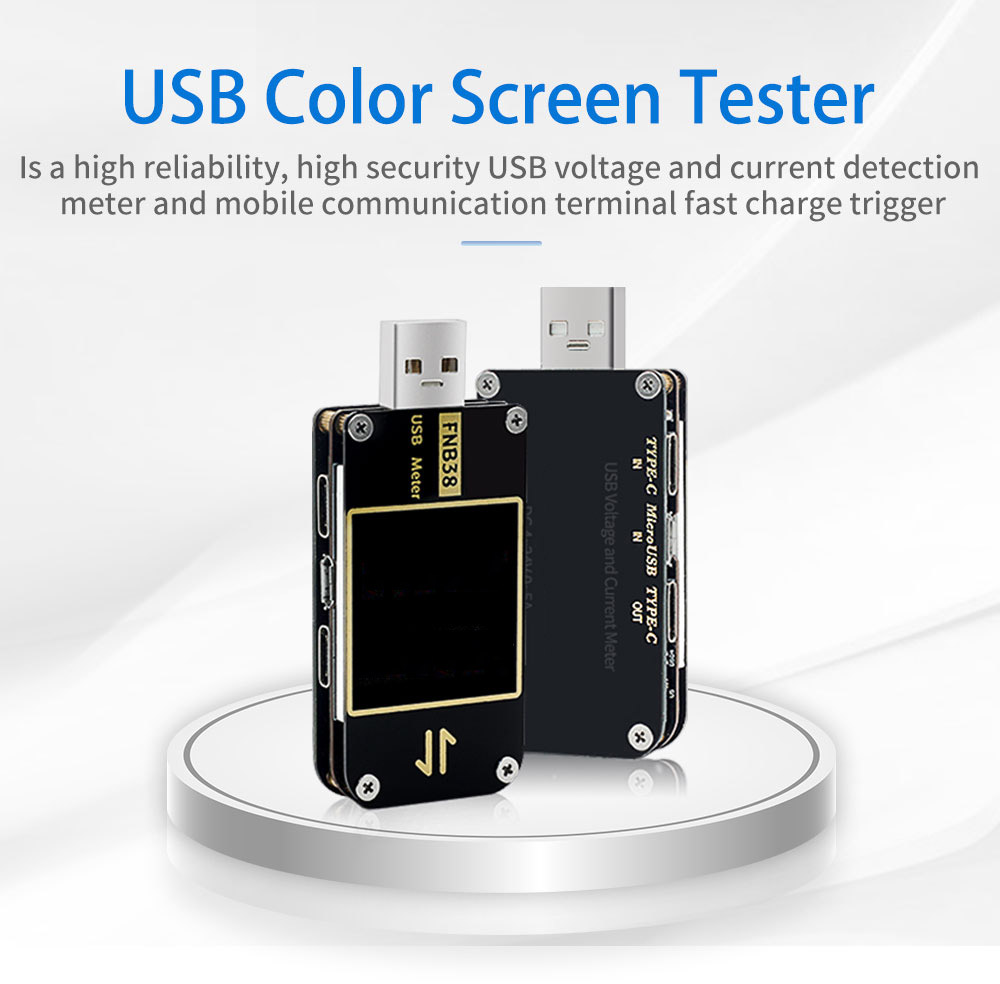

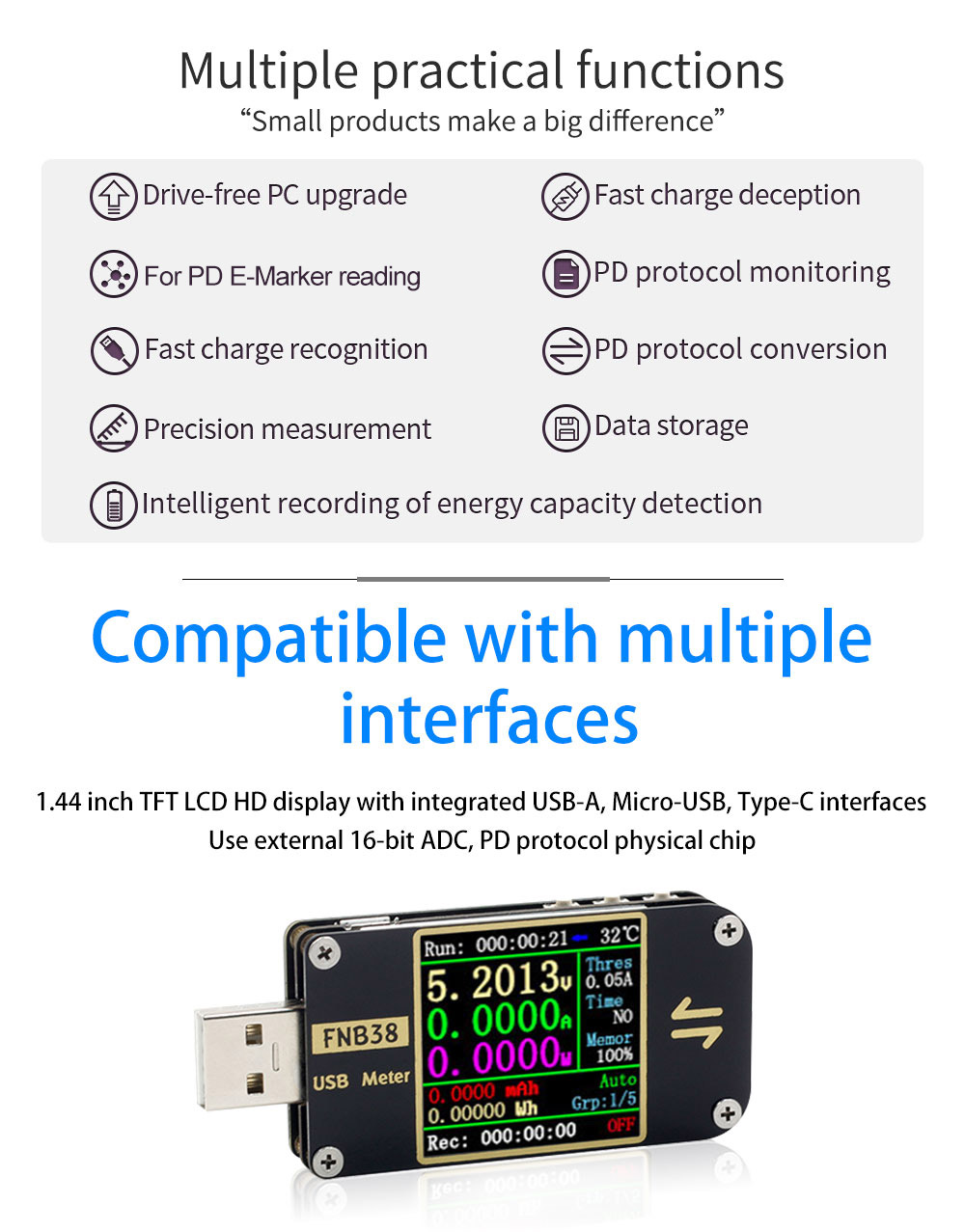

This meter is a multifunctional USB voltage and current detection meter and a mobile communication terminal fast charging trigger meter. It has a 1.44-inch TFT LCD display and integrated USB-A, Micro-USB, Type-C interfaces. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure power supply or power consumption of products such as USB ports, mobile phone chargers, and U disks. It can be used to measure mobile phone charging power and mobile power input and output conditions. The built-in mobile phone fast charging protocol can be used to test the fast charging protocol of tricking chargers.
Package Included:
- 1 x Set of Voltage Current Meter
Download Software & User Manual:
http://www.hannqi.com/download
Protocol Trigger:
01 Fast charge protocol detection
02 QC2.0 trigger
03 QC3.0 trigger
04 For Huawei FCP trigger
05 For Huawei SCP trigger
06 For SAMSUNG AFC trigger
07 PD protocol trigger
Applications:
Can be used to measure charger heads, USB disk, USB charging cables, mobile phones, etc.

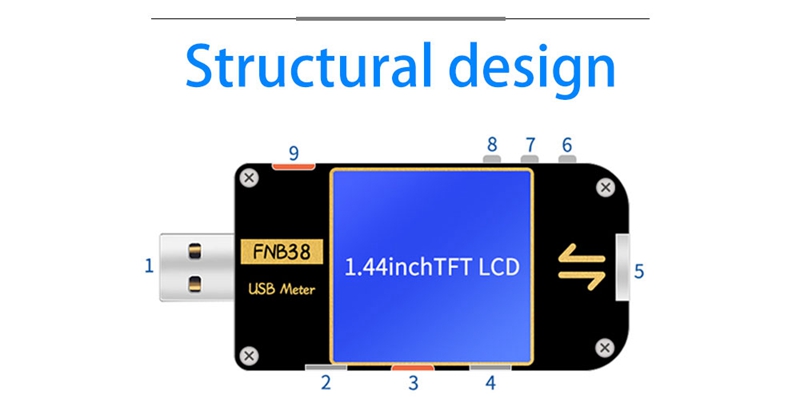

1. USB-A input
2. Type-C input
3. Micro-USB input
4. Type-C output
5. USB-A output
6. >>button, page / select button
7. << button, page / select button
8. OK key, function key
9. HID-USB data transmission
