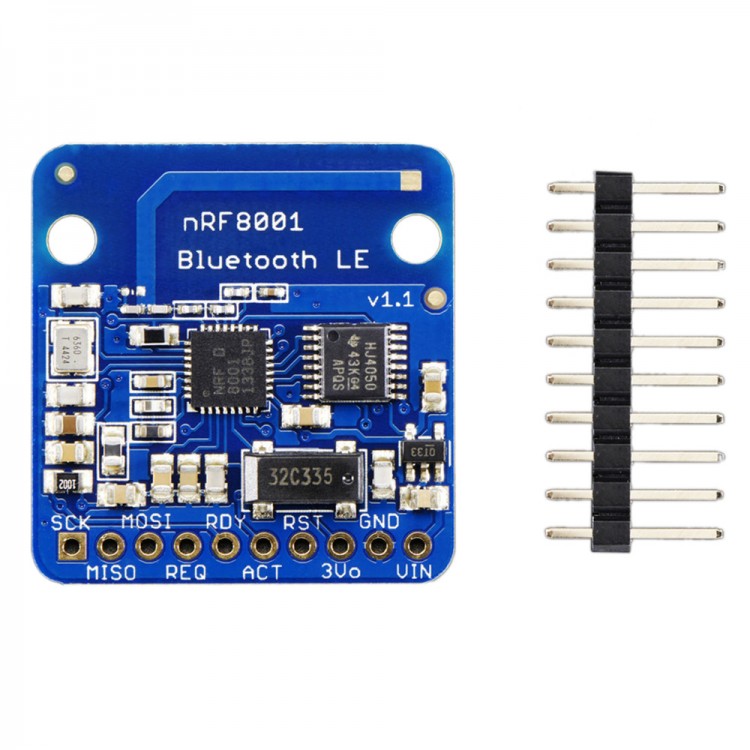

Bluetooth 4.0 (BLE4.0) NRF8001 Module Compatible with iOS Android for DIY
Description:
- Bluetooth 4.0 (k) nrf8001 module, you can build a wireless link with Arduino or STM32, 51 microcontroller that compatible with IOS or Android 4.3+ equipment. Its working principle is to simulate a UART device and send ASCII data to communication between devices.
- BLE4.0 has no large numbers of protocols, you have to skip the iOS peripherals to reasonably design and distribute in Store App.
- And now the Android is officially supported Bluetooth low power (due to Android4.3)
- The nRF8001 can be used with any micrcontroller and SPI to drive it. We have C + + code, provide the code for the Arduino, it can be ported to any other micro controller.
You can test the UART service with the free nRF UART apps from Nordic Semiconductors, available for both iOS and Android:
- Compatible iOS devices: click here
- Compatible Android 4.3 and higher devices:click here
- Compatible pre Android 4.3 Samsung devices (uses a proprietary Samsung BLE stack): click here
Package included:
- 1 xBluetooth 4.0 Module
- 1 xUser manual
- 1 xchip datasheet
