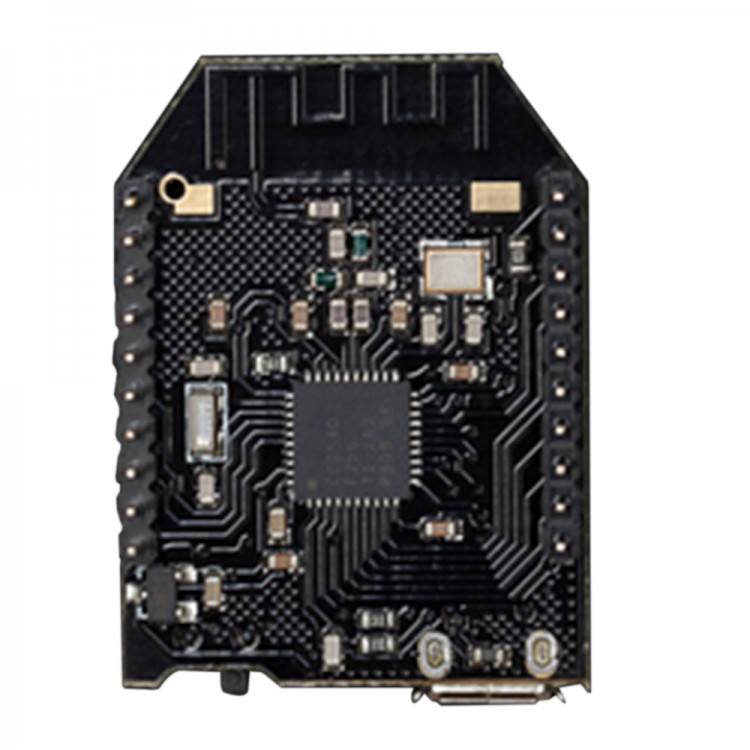

BLE-LINK 3.3V 2.4GHz Bluetooth 4.0 Module Compatible w/ Mobile Phone APP CC2540 for Arduino DIY

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.56
  • Price in reward points: 216 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.13 $20.70 $20.05 $19.19 Contact US
Quantity:

BLE-LINK 3.3V 2.4GHz Bluetooth 4.0 Module Compatible w/ Mobile Phone APP CC2540 for Arduino DIY

Description:

BLE-LINK is based on Bluetooth 4.0 communication module, it uses XBEE modeling design, compact size, compatible with XBEE extension base,suitable for all kinds of 3.3V microcontroller system.It can also be achieved between two Bluetooth module point to point wireless transparent transmission, master-slave machine set, wireless recording program, even with the PC establish hid connection.

At the same time, we provide a great degree of freedom and support for developers to prepare. Users can not only through the AT instruction BLUNO, and can update the BLE chip program through USB. BLE-LINK 4.0 Bluetooth communication module can use XBEE base plug to the for Arduino controller, thus realizing Bluetooth wireless control.

The use of Bluetooth wireless burn, can use XBee USB for Adapter adapter(with FTDI burn function),so as to connect with the computer.

Technical specification:
- Bluetooth chip:TI CC2540
- Working frequency: 2.4GHz
- Data rate maximum:1Mbps GFSK
- Modulation or protocol: Bluetooth low power, V4.0
- Sensitivity: -93dBm
- Voltage power supply: 3.3V
- Working temperature range: -40 ~ +85 centigrade
- The most distant transmission distance: About 60m (open area)
- Size: 32*22mm

Function mode:
- Support through AT instruction debug BLE
- Support master slave switching
- Support serial port transparent transmis
- Supports Bluetooth remote update for Arduino program (i.e., Bluetooth 4 wireless programming)
- Supports Bluetooth remote update for Arduino program (i.e., Bluetooth 4 wireless programming)
- Support USB update BLE chip program
- Support for Bluetooth HID
- Can facilitate the upgrading of BLE firmware
- Supporting for Android and IOS application, open source, suitable for users to develop two

Introduction link: click here
Schematic diagram link: click here

Package included:
- 1 x Bluetooth 4.0 module
