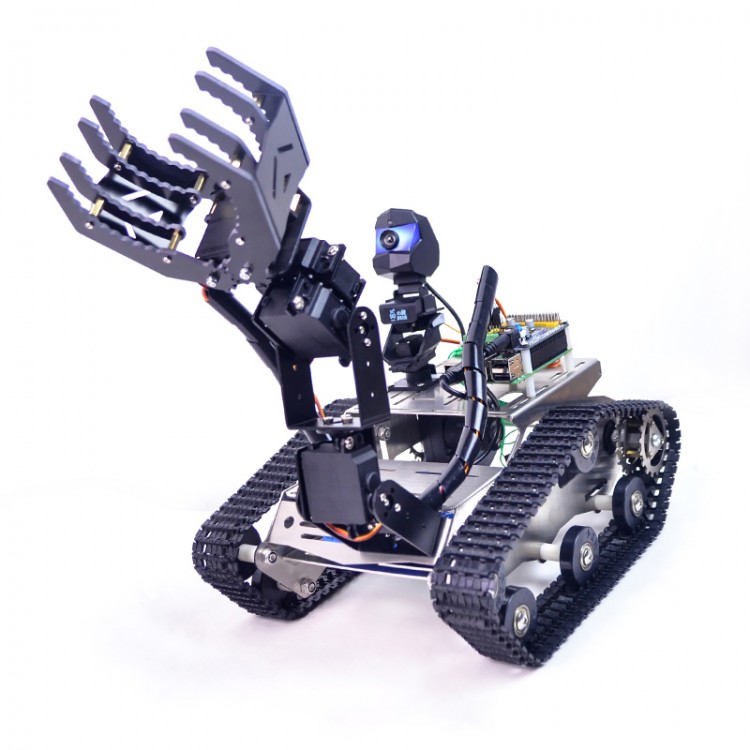

• XIAOR GEEK TH Robot Car MEGA 2560 Wifi Video Robot Tank Obstacle Avoidance Robot Kit (A2 Robot Arm)

XIAOR GEEK TH Robot Car MEGA 2560 Wifi Video Robot Tank Obstacle Avoidance Robot Kit (A2 Robot Arm)

Availability: In stock, usually dispatched in 1 business day

  • Price:$298.72
  • Price in reward points: 2987 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $292.75 $286.77 $277.81 $265.86 Contact US
Quantity:
XIAOR GEEK TH Robot Car MEGA 2560 Wifi Video Robot Tank Obstacle Avoidance Robot Kit (A2 Robot Arm)


Features:

- Wifi and Bluetooth control modes (Wifi mode by default)
- Support WeChat mini program to control the car
- 2DOF PTZ servos
- Robot-Link WIFI video data transmission module + external 5DBi long antenna, enabling stronger signal
- PWR multi-function power motor driver module compatible with platform for Arduino 2560
- Compatible with main control board for Arduino 2560 platform
- Support XR Block graphical programming which is based on Scratch 3.0 programming (this function only for Arduino2560 motherboard)

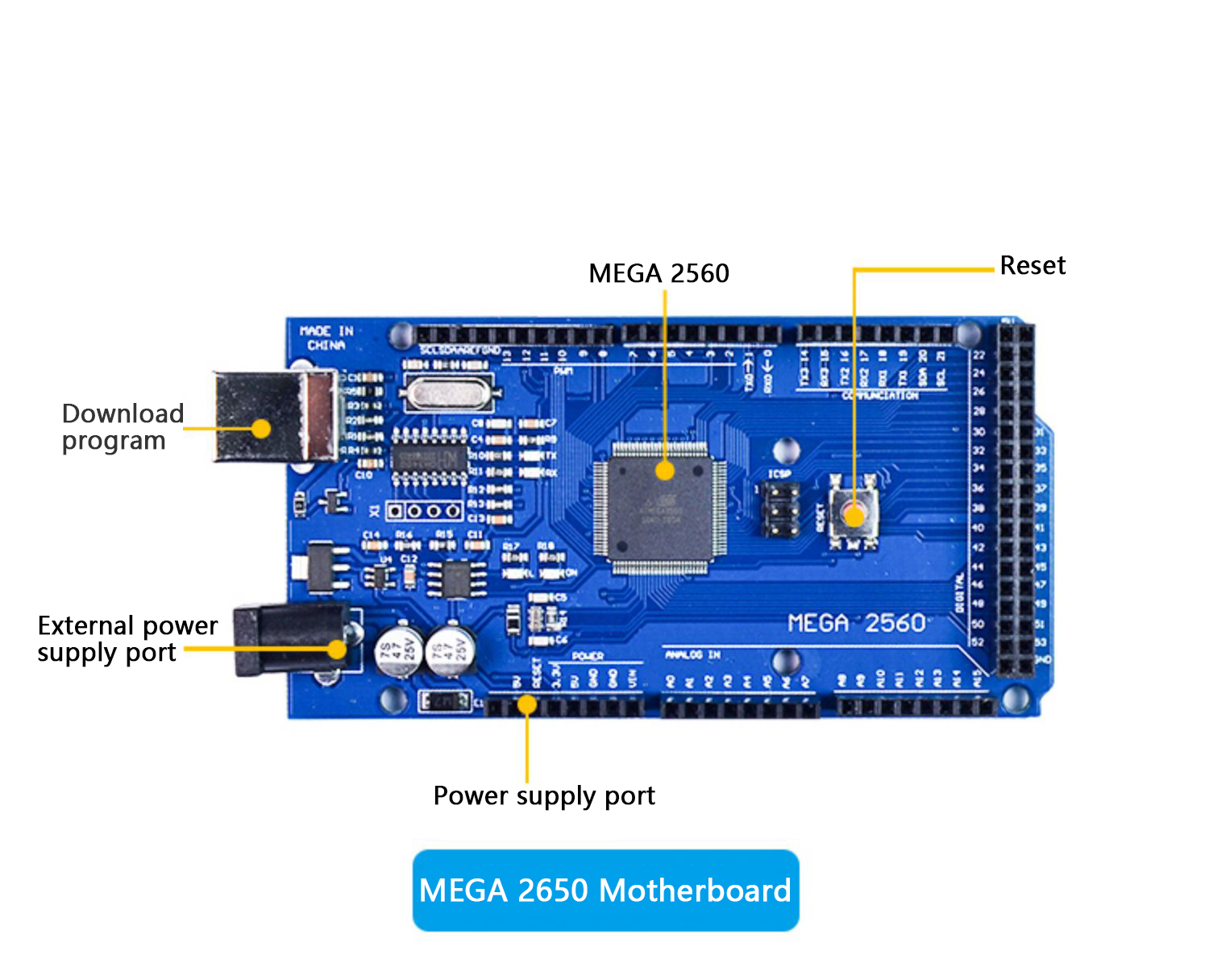

- Multifunctional motherboard: Careful layout, reasonable wiring, precise layout, and stable performance. Compatible with microcontroller core for Arduino 2560. 2 sets of voltage stabilization systems, 2-way motor drive, 8-way servo steering gear drive, and 12864 LCD screen driver
- Open IO serial port: the combination of source code and schematic diagram is more convenient for secondary development
- All-metal chassis: Stainless steel body, CNC engraving, laser cutting, just to create a more convenient robot platform. Five pairs of wheels. The chassis is solid. Equipped with multi-function interface, it can be compatible to install a variety of robot electronic devices (for DUINO/51duino/STMduino/FPGA/Raspberry Pi), to stimulate your imagination

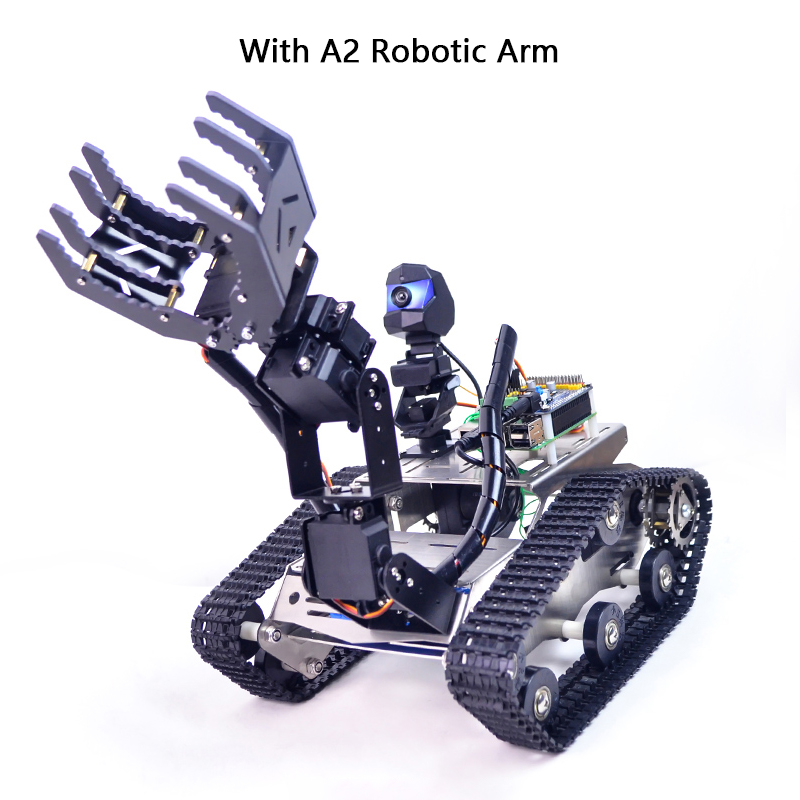

- 4DOF robotic arm: It adopts a simulated human arm design. Servos are anti-jamming. It is fully synchronized with the control software interface
- 2DOF PTZ: You can flexibly control the PTZ to rotate up, down, left and right through your phone or mouse
- 720P HD camera: 1MP HD quality. It adopts large size sensor for CMOS. Compared with the first-generation camera, its viewing angle is increased by more than 50%, and it has more sufficient picture information. Manual focus adjustment
- 5DBi external WiFi antenna: Using a unique external high-gain antenna, the signal strength is high and the transmission distance is long. When there are many obstacles or the distance is too far, it can also achieve complete data transmission and reception, with good penetration and coverage. This can make the network connection more stable and fast, allowing you to have a real-time robot perspective without delays
- Speed control system: The robot has 100-speed speed control system, and the speed of the robot is under your control
- Real-time video WiFi control: support computer, mobile phone, PAD (for Android/Apple system), and RC controller (optional). Connect the car via WiFi, users can watch the picture on the screen in real time and operate the robot car
- Powerful control software: The robot software is available in both Chinese and English. Support multi-channel video transmission and 360-degree monitoring. Collect and display sensor data, transmit sensor data in real time, and control the PTZ in the screen
- Rich extension applications

Specifications:
- Product name: TH Robot WIFI video intelligent robot car
- Motor drive: L298P two-way high-power motor chip
- Microprocessor: MEGA2560
- Charging method: in-line; no disassembly
- Frequency range: 2.400-2.4835GHz
- Camera: HD camera (adjustable distance)
- Dimensions: 300 x 230 x 280mm/11.8 x 9.1 x 11"
- Compilation environment: for Arduino IDE, and Linux
- Wireless communication: Support 802.11b/g/n protocol, up to 150Mbps
- Signal range: ≤ 80m/262.5ft open distance
- Remote control method: 1. APP for iOS; 2. APP for Android; 3. PC client
- Net weight: 3400g/7.5lb

Package Included:

- 1 x Stainless steel chassis
- 1 x WiFi module
- 2 x XR 9G servos
- 1 x Charger
- 1 x Hardware kit
- 1 x MEGA2560
- 1 x 5DBi long antenna
- 1 x XR gimbal nylon piece
- 1 x 4DOF robotic arm
- 2 x Infrared obstacle avoidance sensors
- 1 x PWR motor driver board
- 1 x HD camera
- 3 x Servo extension cables
- 1 x Ultrasonic ranging module

Note:
- Its motherboard is produced by XIAOR GEEK. It is for Arduino code.
- Battery is not included. A 2200mAh 8A 12V lithium battery is recommended.
- Assembling is needed.
