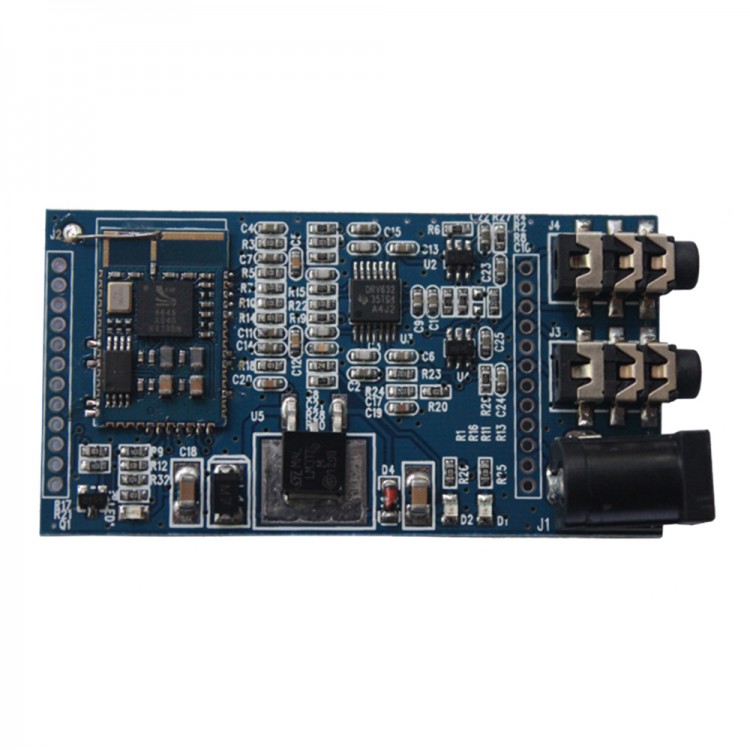

Bluetooth 4.0 Receiver Module Dual Channel CSR8645 Support APT-X for Audio DIY
Description:
This bluetooth module is suitable for any analog amp. Only need to connect the audio input of the amplifier board to the 3.5 socket audio output or reserved pin LOUT GND ROUT. Then the common amp will change into bluetooth one.
When no bluetooth, it is AUX analog audio input signal; when there is bluetooth, it is bluetooth mode.
Specification:
- Adopt chip CSR8645
- Bluetooth 4.0
- Bluetooth protocol: A2DP V1.2/ AVRCP V1.4/HEP V1.6 /HSP V1.2
- Main function: Support ATP-X audio lossless decoding
- Stereo audio output
- Onboard AUX audio input
- Audio input onboard
- 2 channels
- Power: DC 6-24V
- Dimension: 62*33mm
Package included:
- 1 x Bluetooth 4.0 Receiver Module
