BREEZE AUDIO FS-N2A AC220V 50HZ 6N2 Electronic Tube Pre-Amplifier HIFI Preamp
  • BREEZE AUDIO FS-N2A AC220V 50HZ 6N2 Electronic Tube Pre-Amplifier HIFI Preamp
  • BREEZE AUDIO FS-N2A AC220V 50HZ 6N2 Electronic Tube Pre-Amplifier HIFI Preamp

  • SKU:45684
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 11
  • Price:$108.08
  • Price in reward points: 1081
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $105.92 $103.76 $100.51 $96.19 Contact US

BREEZE AUDIO FS-N2A AC220V 50HZ 6N2 Electronic Tube Pre-Amplifier HIFI Preamp

Parameters:

- 6N2 Electronic Tube
- AC power supply: 220V 50HZ
- Input socket standard: RCA block (1 sets of inputs, 1 sets of output)
- Magnification: 5 times
- Input signal amplitude: 0.2-1.2V
- Frequency response: 10-20kHz (+/-1.1dB)
- Total harmonic distortion: 0.065%
- Signal to noise ratio: -99.5dB
- Dimensions: width 108*height 231 mm*depth 133 mm (without knob and terminal)
- Net Weight: 2.2kg

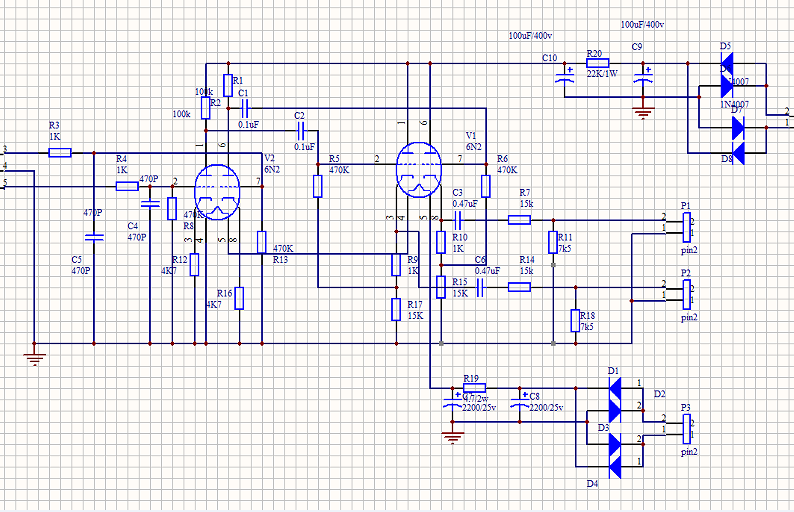

Schematic diagram:

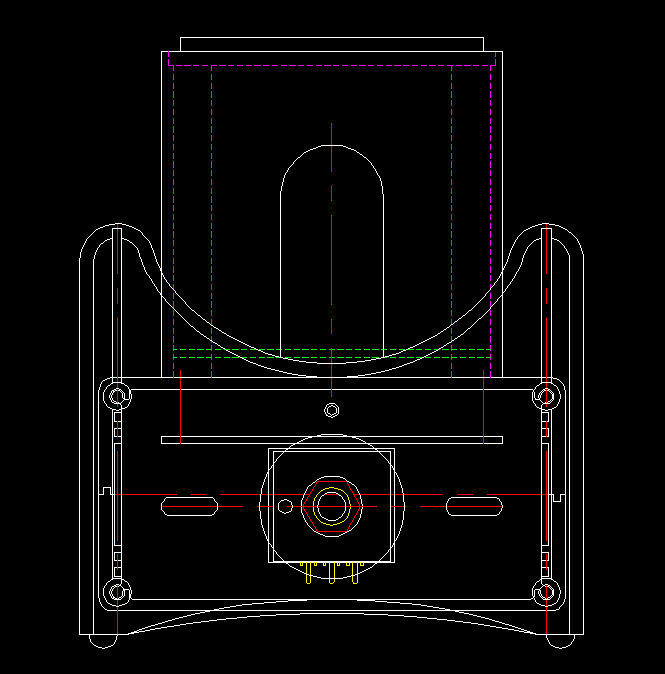

Design diagram:

Package included:

- 1 x Pre-Amplifier
