| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $50.90 | $49.86 | $48.30 | $46.23 | Contact US |

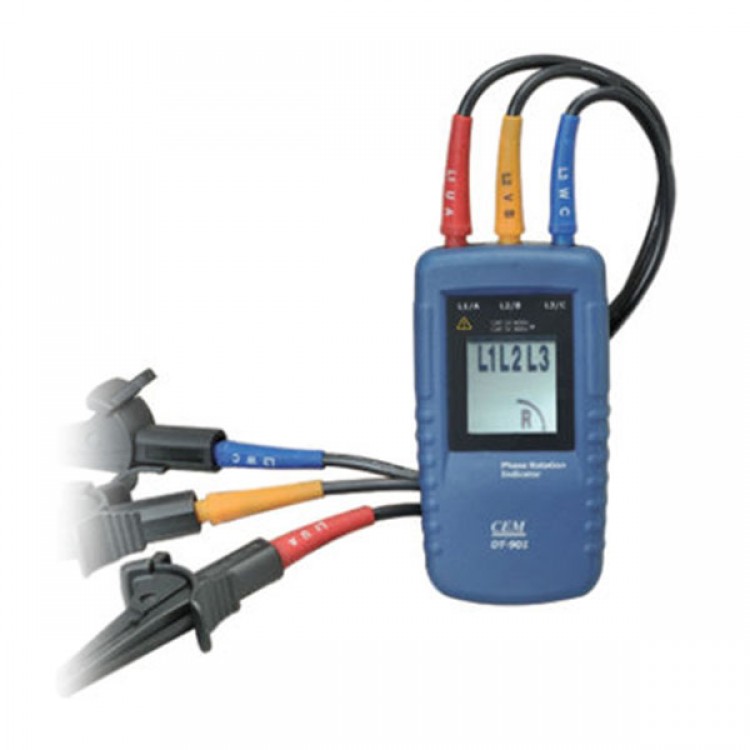

CEM Brand DT-901 Phase Rotation indicator Handheld Detector No need battery
The Phase Rotation Indicator is a handheld instrument designed to detect the rotary field of three-phase systems.
1. 3 Phase indication
2. Indication of phase rotation
3. Clear LCD display
4. No battery required
| Specifications: | |
| Nominal voltage | 40V to 690V AC |
| Frequency range | 15 to 400Hz |
| Current pickup | 1mA |
| Nominal test current(per phase) | 1mA |
| Power supply | From unit under test |
| Electrical safety | IEC61010/EN61010; IEC61557-7/EN61557-7 |
| Protection level | CATIII 600V |
| Type of protection | IP40 |
| Operating temperature | 0ºC to 40ºC |
