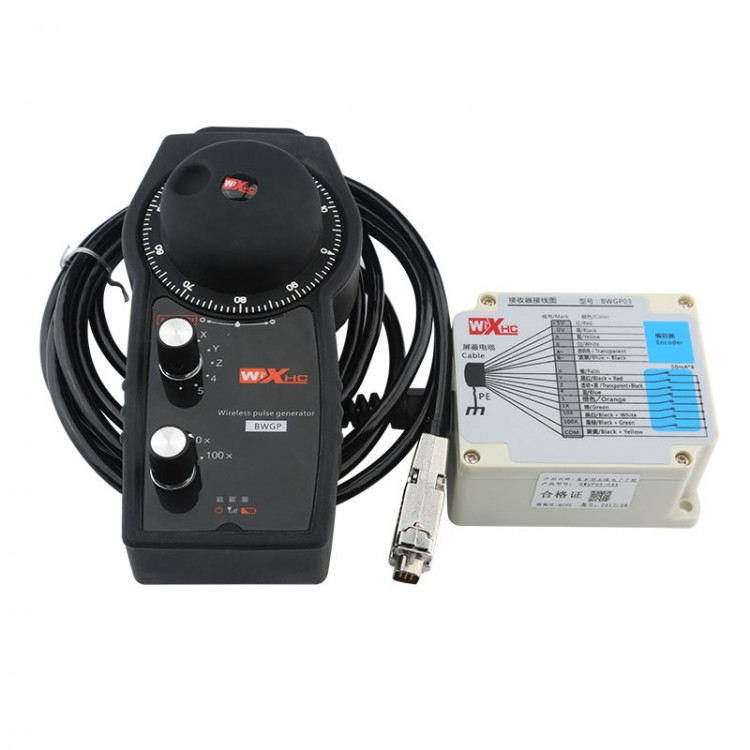

5-Axis Wireless Manual Pulse Generator MPG Handwheel for CNC Engraving Machine (for KND System)

5-Axis Wireless Manual Pulse Generator MPG Handwheel for CNC Engraving Machine (for KND System)

Features:
- Typical applications: machining center, CNC, vertical lathe, Longmen engraving and milling machine.
- Support system: for SIEMENS, for MITSUBISHI, for FANUC, for FAGOR, for FRANCE NUM, for TAIWAI BAOYUAN, for XINDAI and so on.
- The handwheel by brand encoder and touch feel is good, the service life is long, the tooth position clear.
- With LCD display, X axis, Y axis, Z axis, the 4 axis coordinate value, resolution of 1 micron (without LCD display has no function).
- With rate display 1X, 10X, 100X; having a shaft selected display X, Y, Z, 4, 5, 6.
- Wireless hand wheel, far transmission distance, straight 60 meters can stably operate without obstacle.
- Wireless transmission frequency, 433MHZ, power of 10DB, the data encryption transmission, stable and reliable.
- Using 64 channel frequency hopping, have 65536 different identities of ID numbers, the same room, maximum support 64 sets of equipment at the same time, no mutual interference.
- Size: 184 x 80 x 31mm (including encoder height 57mm)
- Wireless ISM segment, 433MHz
- 10DB transmitting power, -98DB receiving sensitivity, obstacle-free distance of 50 meters
- Anti-interference design, stable and reliable, using 32 sets of wireless handwheel in the same room, without affecting each other
- Low power consumption design, 2AA batteries, normal use for 30 days
- With axis selection function, magnification selection function
- Using alloy encoder, stable and reliable performance, good hand feeling, clear tooth position.
- Working principle: It adopts wireless transmission technology, easy to operate, eliminate the traditional spring wire connection, reduce cable failure rate, avoid cable dragging, sticking oil and other pollution.

Instruction for use:
- First connect the receiver cable to the machine tool system.
- Installation 2AA batteries on the handwheel, turn on the power switch, and it can be used normally.

Specification:
- Communication channel: ISM 433M
- Power supply: two alkaline AA batteries
- Wireless transmission distance: accessible 40 meters
- Operating voltage of the handheld: 2.2V - 3.3V (2 No.5 alkaline batteries)
- Average working current: less than 10mA, low power design, battery life more than 30 days (2 batteries)
- Receiver operating voltage: 5V or 12V or 24V
- Average working current: less than 260mA
- Pulse type: A, B phase difference of 90 degrees of two pulse; A, A-, B, B- phase differential pulses
- Encoder: 1000PPR
- Impulse voltage: support 5V 12V
- Axis selected signal output mode: in some way
- Multiplier signal output mode: point to point
- Transmitted power: 10DB
- Receiving sensitivity: -98DB
- Maximum number of axis supported: 5 axis
- Material: ABS PC alloy material

Package Included:
- 1 x Pulse Generator
- 1 x MPG Handwheel

Note:
- Battery is not included.
- When the shaft selection switch is in the OFF position, the power is turned OFF and the power indicator is not on.
- The power supply is connected when the shaft selection switch is in X, Y, 2, 4, 5, and 6 gears.
- The signal light blinks very fast, indicating that the wireless signal is normal.
- The irregular low-speed blinking of the signal lamp indicates that the wireless signal is not normal.
- When the signal light is off, the network is off.
- To ensure a long distance, the receiver should be mounted on the top of the case, exposed, not inside the case.
