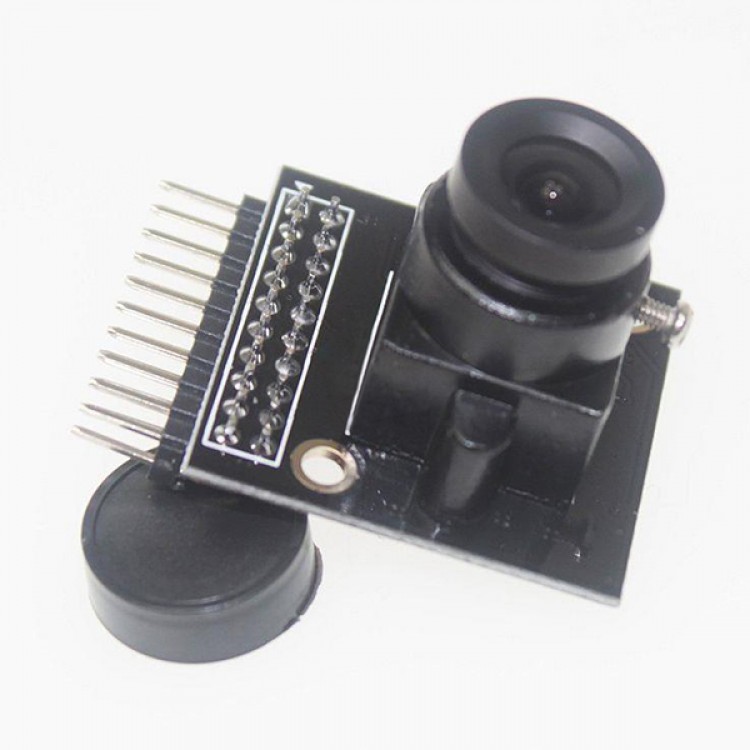

CF7670C-V2 CMOS Camera Module OV7670 Display + FIFO AL422 / AL422B

Description:
OV7670 camera module built using the embedded camera module, Extremely convenient connections with the MCU, any MCU can take pictures. Smart car can be used in visual transmission line, color and other distinguishing search and provide STM32 collected under the display source and technical support. 384K-byte module onboard FIFO, can be easily and MCU interface. Module size 3.5cm x 3.5cm, 2 * 10 port / pin 2.54 pitch (DuPont wire can be connected).

- Photographic array 640X480
- IO voltage of 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
- Power work 60mW/15fpsVGAYUV
- Sleep <20μA
- Operating temperature -30*C to 70*C
- Stable operation 0 *C to 50*C
- Output format (8) YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
- Optical size of 1 / 6 "
- 25 ° field of view
- The maximum rate of 30fps VGA Chen
- Sensitivity 1.3V / (Lux-sec)
- 46 dB SNR
- 52 dB dynamic range
- View Mode Progressive
- E-1 line to 510 line exposure
- 3.6μm x 3.6μm pixel size
- Dark Current 12 mV / s at 60 *C
- Well capacity 17Ke

1: Easy to apply with MCU/ARM system via I/O port.
2: 24MHZ active crystal.
3: Onboard 2.8V LDO Regulator to power OV7670 IC.
4: Input Voltage:  3.3V (+ /-0.1V), operating temperature:0-65 degrees
5: Metal Pro lens frame with glass lens, lens focal length is 3.6 mm at 650nm band
6: PCB FR-4 high-quality black Immersion Gold Board effectively to prevent light leakage problem on PCB
7: Module size is 3 * 3 cm (+ / - 0.5 mm)
8: Module Pin: 2x 10 at 2.54mm

Package List:
- 1 * OV7670 + AL422 CMOS Camera Module
