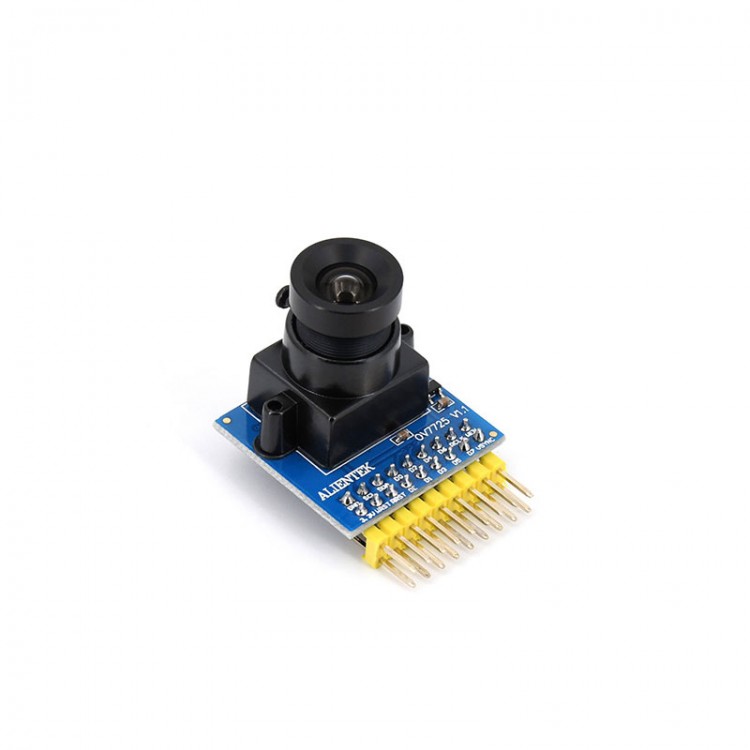

ALIENTEK Camera Module 300000 Pixels OV7725 Module with FIFO STM32 Drive Outperforming OV7670

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.75
  • Price in reward points: 298 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.16 $28.56 $27.67 $26.48 Contact US
Quantity:

ALIENTEK Camera Module 300000 Pixels OV7725 Module with FIFO STM32 Drive Outperforming OV7670

Features:

- 300,000 pixels with FIFO
- Its STM32 drive better than that of OV7670
- With integrated active crystal oscillator, external clock not needed
- Integrated FIFO chip (AL422B) facilitates MCU reading images
- Support VGA, QVGA, and various size outputs from CIF to 40*30
- Supports RawRGB, RGB (GBR4:2:2, RGB565/RGB555/RGB444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB) automatic removal of light fringes, automatic black level calibration (ABLC), automatic band-pass filter (ABF), etc.
- Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration, etc.
- Image scaling, panning, and window settings are supported
- Standard SCC B interface, compatible with IC interface
- Built-in embedded microprocessor
- High sensitivity and low voltage for embedded applications

Specifications:
- Interface type: Data interface: 8-bit data; control interface: SCCB (class IIC protocol)
- Output formats: RawRGB, RGB (GBR4:2:2, RGB565/RGB555/RGB444), YUV (4:2:2) and YCbCr (4:2:2) output formats
- Output bit width: 8 bits
- Output pixels: VGA (640*480) and below 40*30 any size
- Maximum frame rate: VGA (640*480): 60fps; QVGA (320*240) 120fps
- Sensor Size: 1/4"
- Sensitivity: 3.0V/Lux-sec
- Signal-to-noise ratio: 50dB
- Dynamic range: 60dB
- Lens aperture: F2.0
- Lens angle: 78°
- Lens focal length: 3.6mm
- Operating temperature: -20°C to 70°C
- Module Size: 26 x 27mm/1 x 1.1"
- Operating Voltage: 3.3V (Note: cannot be powered by 5V)
- IO port level: 1.7~3.3V
- Power consumption: 60mA

Package Included:
- 1 x Camera Module
