CJMCU 4x4 Driver Shield  for Stepper Motor Driver Fully Compatible with Arduino
  • CJMCU 4x4 Driver Shield for Stepper Motor Driver Fully Compatible with Arduino

  • SKU:26019
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$56.90
  • Price in reward points: 569
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $55.76 $54.62 $52.92 $50.64 Contact US

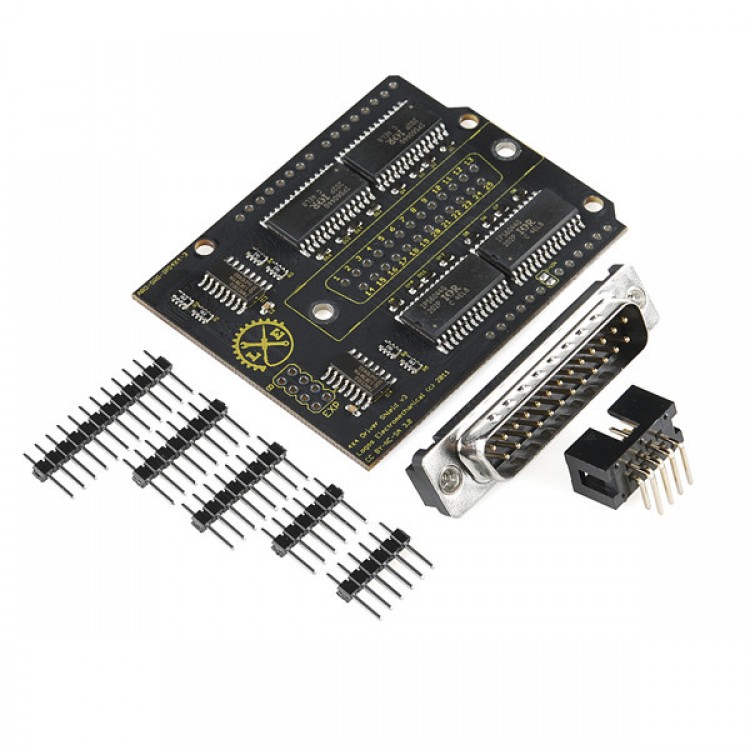

CJMCU 4x4 Driver Shield Module for Stepper Motor Driver Fully Compatible with Arduino

Description:
- The 4x4 Driver Shield is designed to enable users to switch DC loads up to 5A at up to 30V with no heat-sinking. It is ideal for such applications as driving solenoids, relays, and small DC motors. It uses International Rectifier IPS6044 quad channel fully-protected high side MOSFET switches, which include over-temp, over-current, and under-voltage protection. The high-side topology is safer in many applications than the more common low-side topology because a short to ground cannot energize the circuit while the switch is turned off, as it can with a low-side switch. This shield can also be used to drive four unipolar stepper motors.

- The board is built with generous traces to handle the current with minimal voltage loss and heating on the board. A pair of 74AHCT595 8-bit shift registers allow the control of sixteen high current channels from only four Arduino pins using the shiftOut() function, and make it possible to daisy-chain as many as 25 boards off a single host, for a total of 400 high current channels. cjmcu.

Features:
- Arduino shield form factor compatible with all shield compatible Arduino variants and clones.
- Sixteen five amp high side driver channels
- Shift register control allows daisy chaining of up to twenty-five boards for a total of four hundred channels
- Uses only digital pins 7, 8, 11, and 13, leaving all serial, PWM, and analog input lines free.
- Mapped to the hardware SPI bus on the Arduino Uno, allowing high speed data transfer.
- Inexpensive and robust DB-25 male connector carries power and outputs
- Four separate power supply circuits allow maximum application flexibility.
- Ships with loose connectors for end user flexibility, including use with non-Arduino hosts.

Package included:
-  1 x CJMCU 4x4 Driver Shield Module
