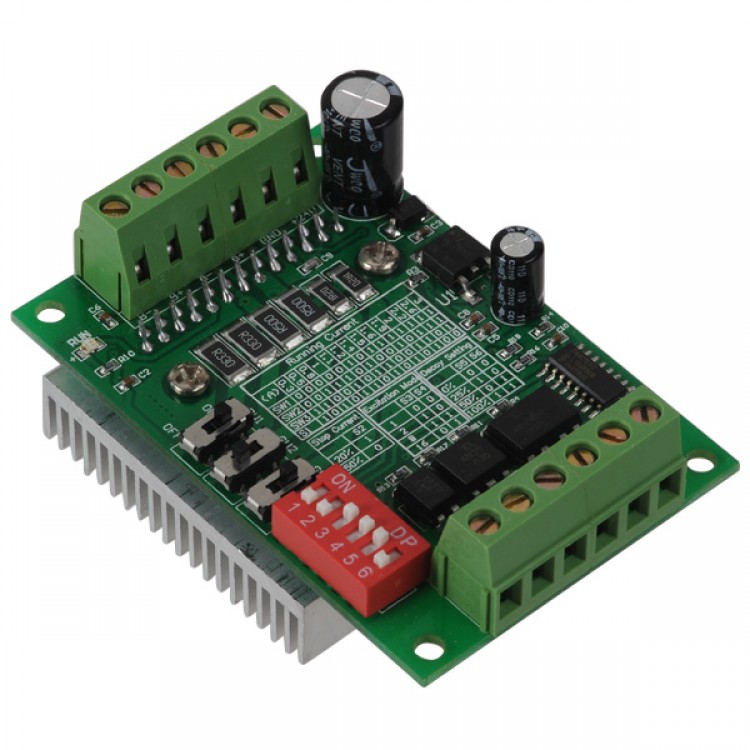

CNC Router Single Axis 3A TB6560AHQ Stepper Motor Driver Board DC 10-35V
Description:
- Operating voltage DC 10V-35V. Recommend the use of switching power supply DC24V power supply.
- 6N137 high-speed optical coupling, and to ensure a high speed without losing step.
- Toshiba TB6560AHQ new original chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
- Rated output: ± 3A peak 3.5A.
- for 42,57 Step 3A within two / four-phase / four wire / 6 wire stepper motor, not suitable for more than 3A stepper motor.
- Automatic half-streaming capabilities.
- segments: whole step, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
- Size: width50 * long 75 * height35 (the MM)

Feature:
- the current level by adjustable to meet your various application needs.
- automatic flow adjustable.
- 6N137 high-speed optical coupling, to ensure a high speed without losing step.
- Printed board setup instructions, no manual can also be operating.
- thick tooth radiators, heat dissipation.
- Absolute use the Toshiba TB6560AHQ new original chip!
