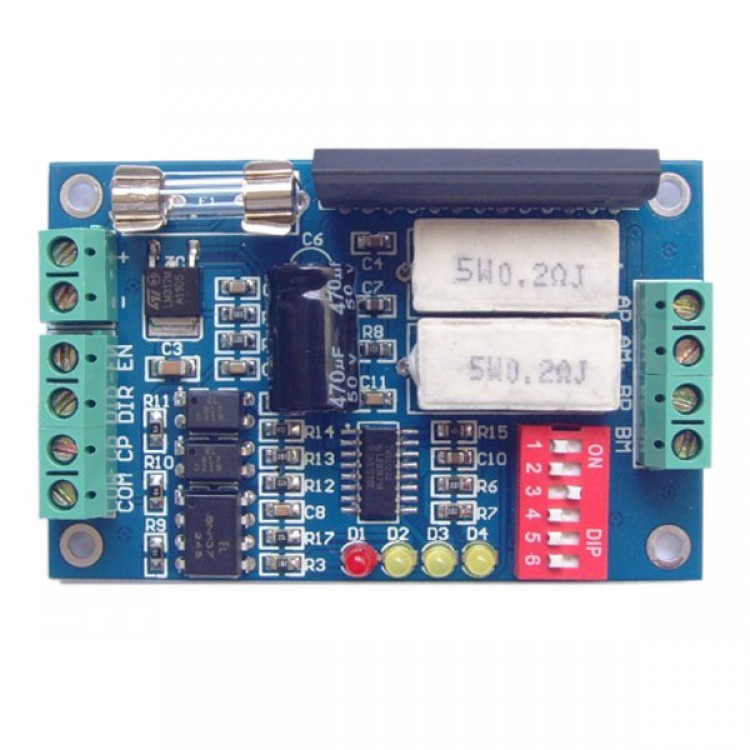

TB6560 Stepper Motor Driver Driver Board Module Single Axis Controller Deep Blue
Specification:
- Onboard TB6560AHQ low power consumption, high-integrated two mixed stepping motor driver chip
- Onboard 74HC123 chip, support stepper motor automatic half stream function
- Onboard changeable fuse holder, default installing 3A fuse
- Onboard two 0.2 Ohm high power cement resistance
- Onboard 6 dial the code switch, can realize the set of current capacity, segmentation and attenuation
- Onboard LM317 stablize chip, satisfy the demand of power supply of circuit part
- Onboard 3. coupler of radio, insolate effectively the interference, improve the stablization of system
- Onboard 10 dial binding post, convenient to wire linking for power supply, input and output
- Onboard 4 LED lights, indicationg the board states
- PCB board size: 75(mm)x48(mm)
Paking list:
- 1 x TB6560 stepping motor driver board
