CUAV MBG V2.3 2-Axis Mini FPV Brushless Gimbal Controller w/ IMU Sensor Russian Version 2.0B
  • CUAV MBG V2.3 2-Axis Mini FPV Brushless Gimbal Controller w/ IMU Sensor Russian Version 2.0B
  • CUAV MBG V2.3 2-Axis Mini FPV Brushless Gimbal Controller w/ IMU Sensor Russian Version 2.0B

  • SKU:25961
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 5
  • Price:$48.90
  • Price in reward points: 489
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.92 $46.94 $45.48 $43.52 Contact US

CUAV MBG V2.3 2-Axis Mini FPV Brushless Gimbal Controller w/ IMU Sensor Russian Version 2.0B



Description:
- MBG is a mini control board witch designed by CUAV,Compatible with Germany and Russia open source brushless gimbal firmware .

Specifications:
- Firmware version:Russia Version 2.0 Firmware
- Adopts the latest QFN packaging brushless control chip.maximum current up to 2.31A
- Built-in DC - DC circuit,support max up to 5S bettery
- Built-in FTDI chip,Can connection USB for debug,Can be led by UART bluetooth or data transmission remote debug



Specifications:
- Size:25mm*50mm
- Mounting hole pitch:44mm
- Mounting hole diameter:3.3mm

Package included

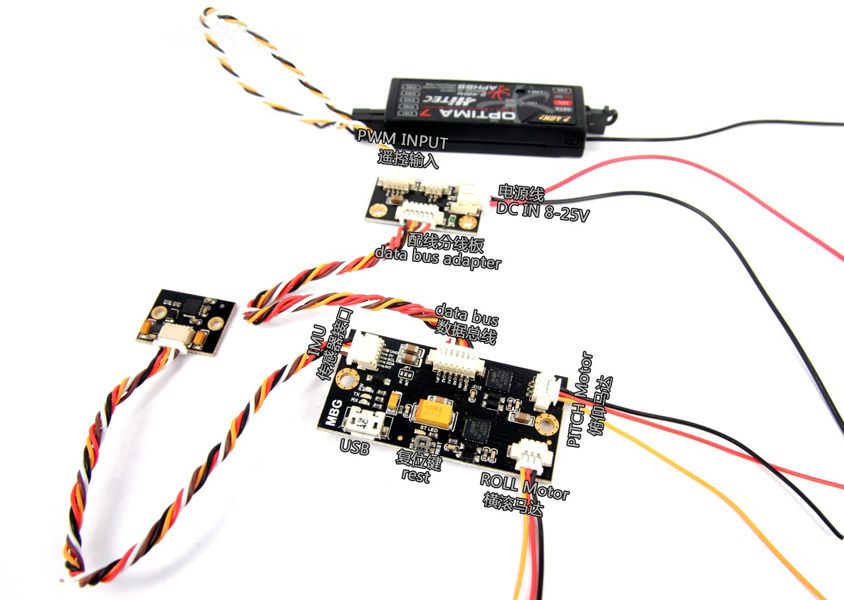

- gimbal control board + IMU sensor board
