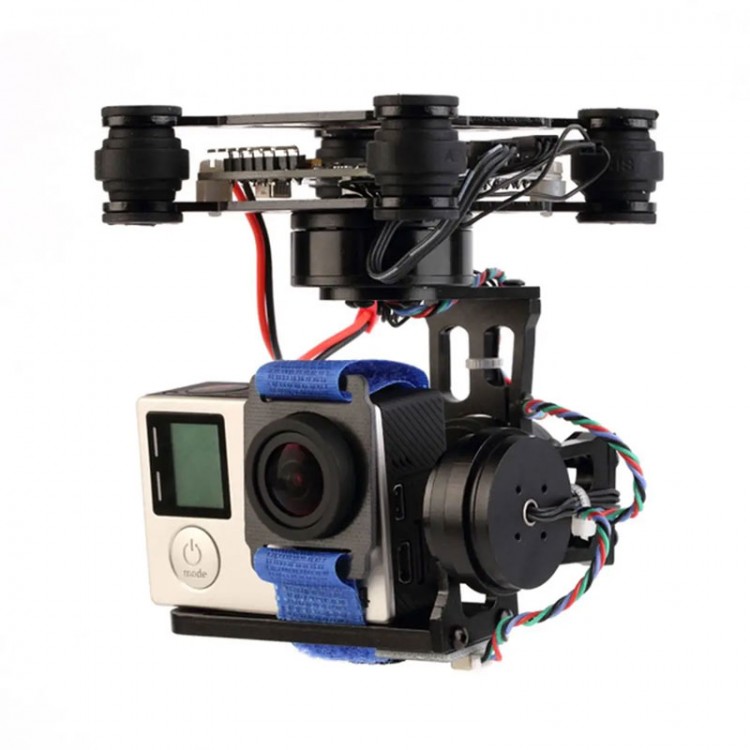

Opensource 3-Axis 3D Brushless FPV Camera Gimbal Frame Debugging-free for SARGO SJ4000/7000 Camera
Specification:
- Motor model: 2206/100T brushless motor x 1; 2805/100T brushless motor x 1
- Driver board: STORM32BGC
- Firmware version: o323bgc - release - v090
- Hardware version: V130
- Working voltage: 12V (3S)
- Working current: 350 ma
- Joystick control Angle:
PITCH: -25 + 25 degrees
ROLL: -25 + 25 degrees
YAW: -90 degrees + 90 degrees
- Switch control mode: lock/follow

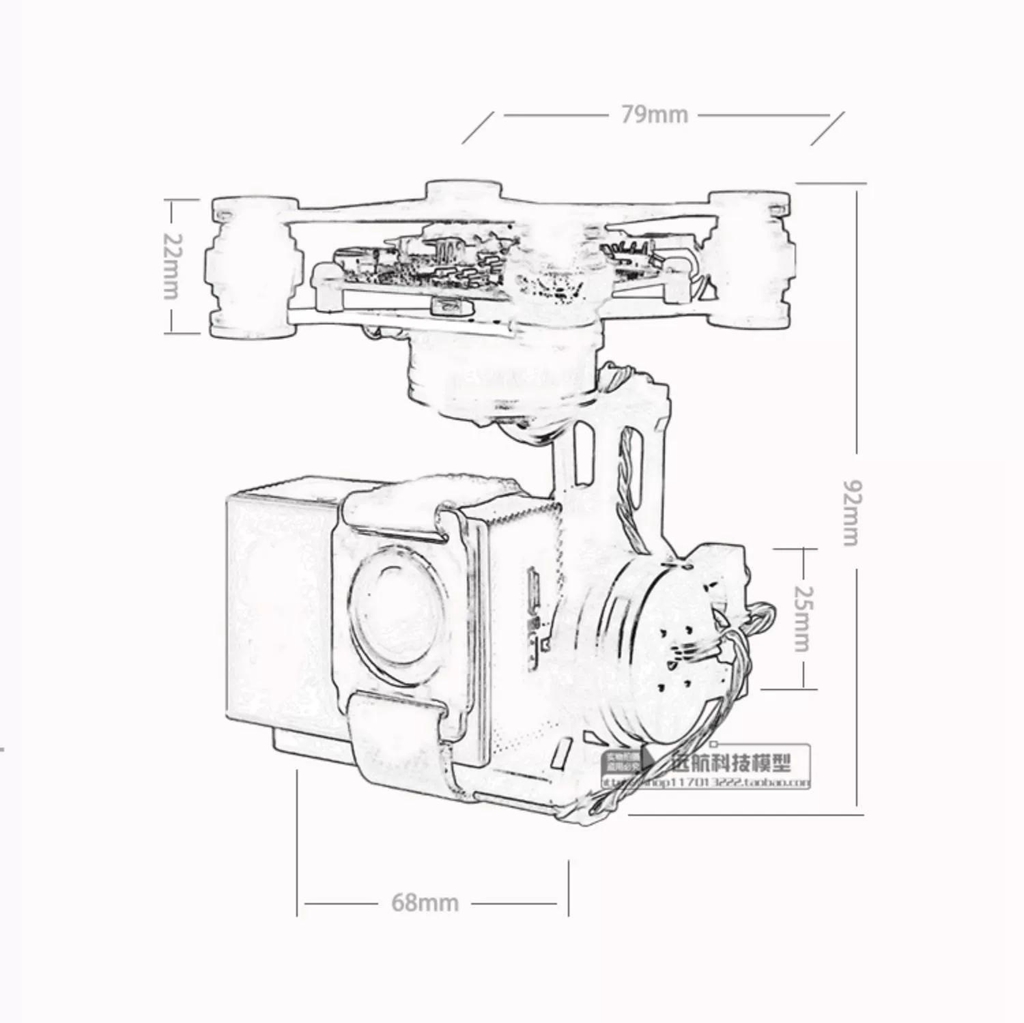

- Size: 80 x 80 x 100 mm (L x W x H)
- Weight: 180g
- Scope of application: for FPV-compatible series camera
- Electrical connections: JST and HX

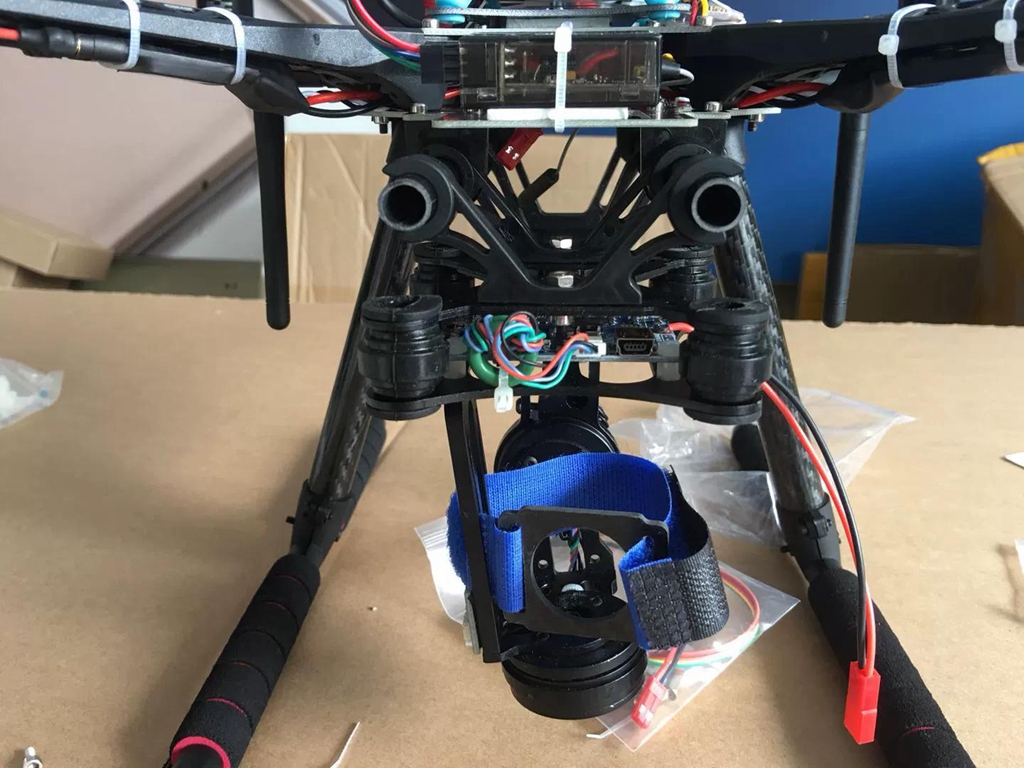

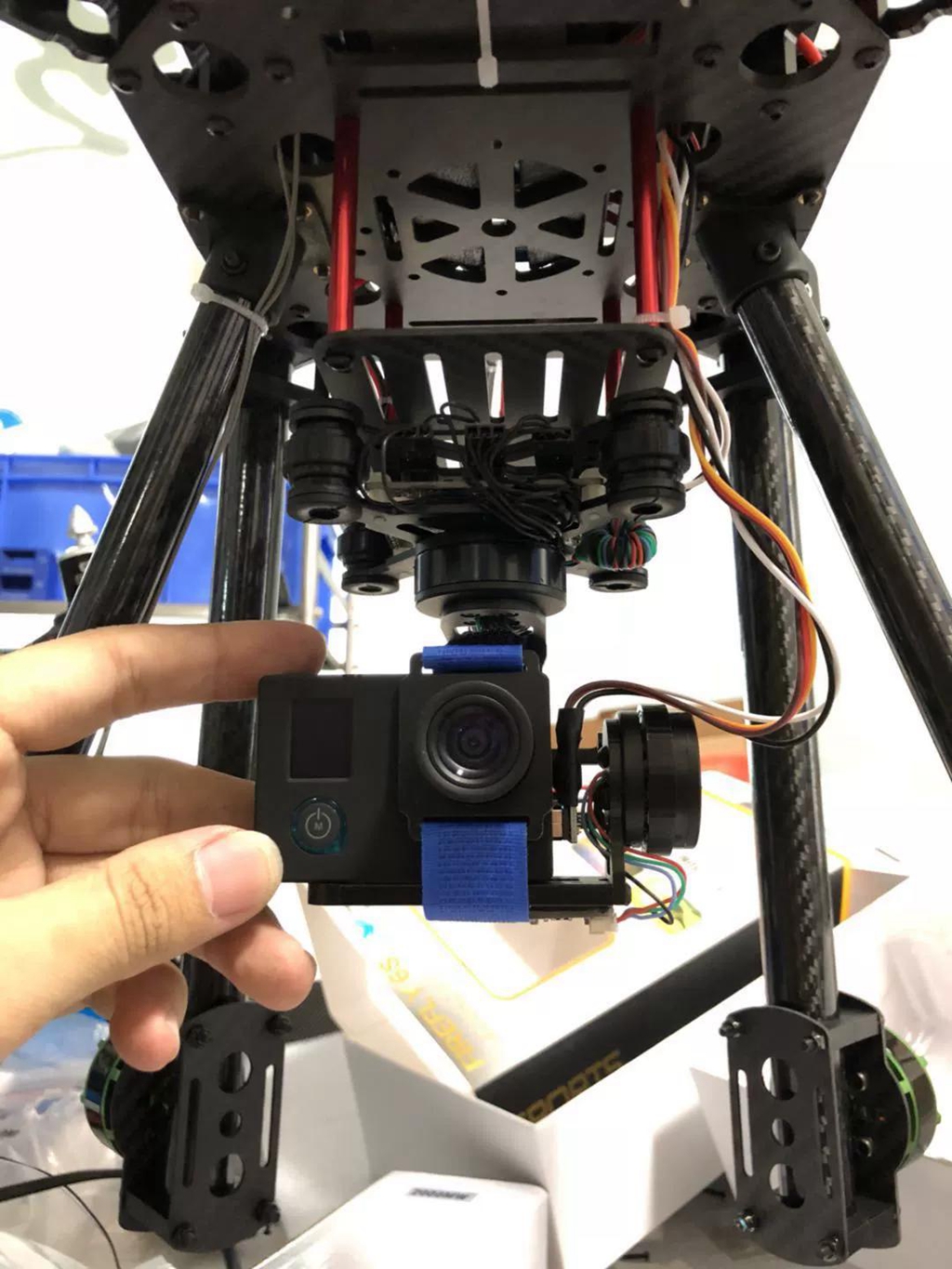

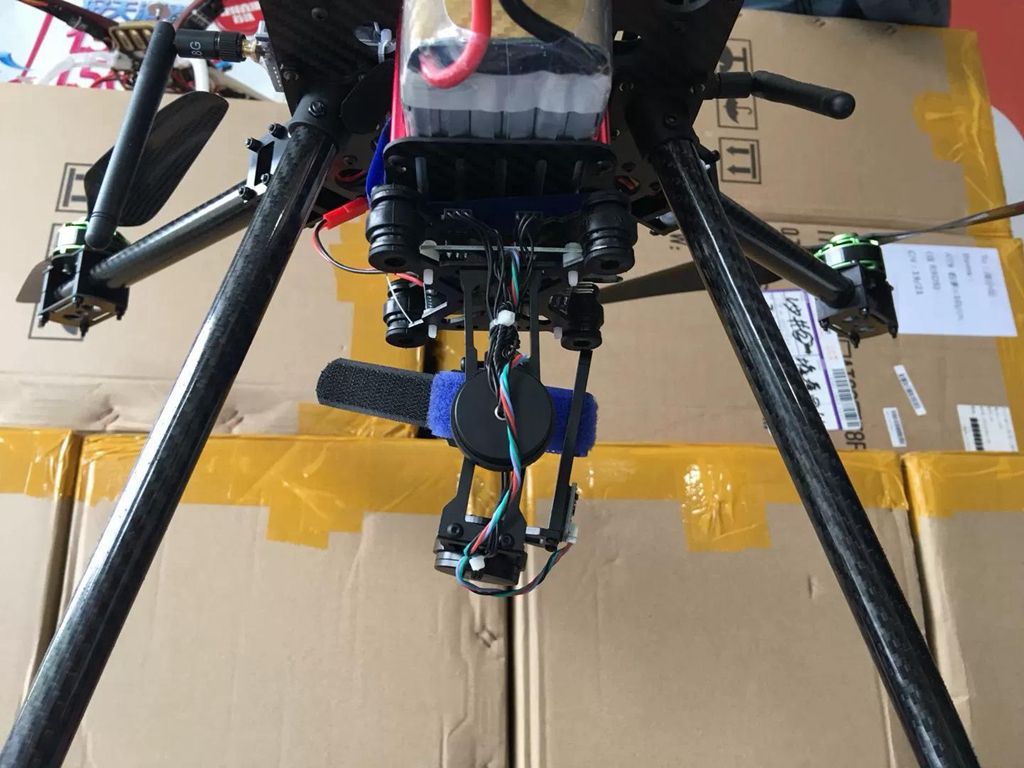

How to install:
1. Remove the shock absorber ball and open the top mounting plate
2. Lock the installation plate to the lower part of the aircraft with screws
3. Installing shock absorber balls
4. Install the camera and tie it tightly with a strap.
Using Instruction:
- After installing the camera (be sure to install it, otherwise it will shake continuously), power on and stabilize the gimbal for about 20 seconds (do not shake the gimbal, keep it hanging and off the ground). After hearing a sound, it can be used normally.
- It is possible to control the tilt of the gimbal through a receiver or other separate PWM power supply.
- Support follow mode or lock mode setting.
- Support angle mode or speed mode setting.

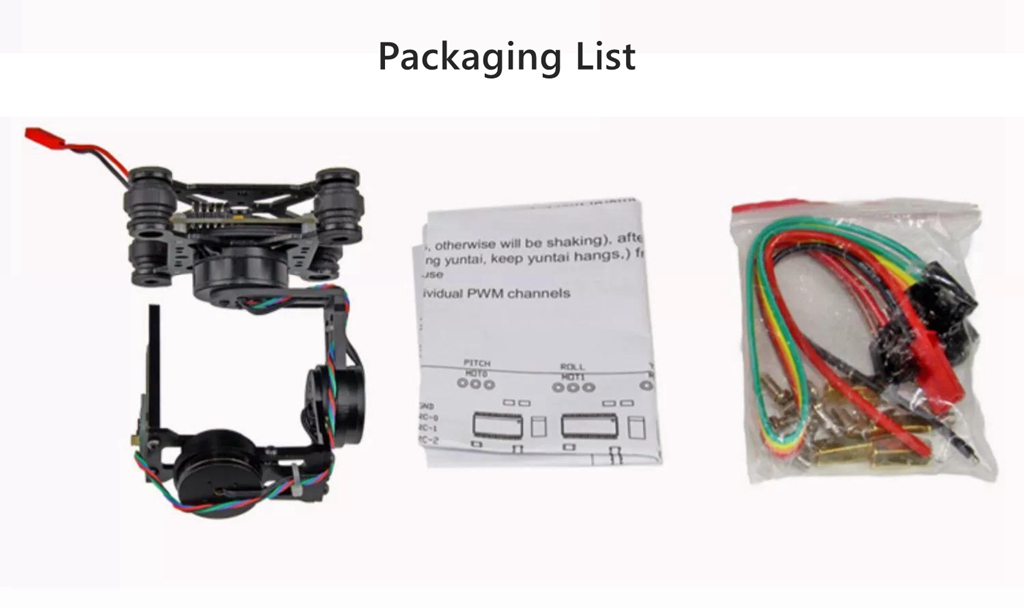

Package Included:
- 1 x Camera Gimbal
Note:
- Camera is not included.
