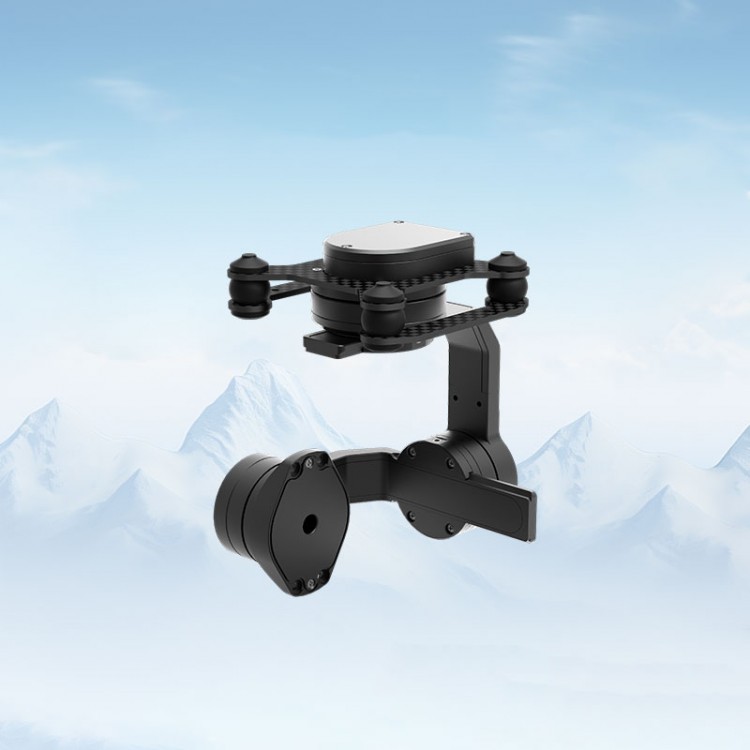

C-200T 3-Axis FPV Gimbal 200g Payload High Torque Brushless Motor Orthogonal Mechanical Stabilization FPV PTZ

C-200T 3-Axis FPV Gimbal 200g Payload High Torque Brushless Motor Orthogonal Mechanical Stabilization FPV PTZ

Description:
- The C-200T 3-axis Gimbal is compatible with a payload device no heavier then 200g. With a 3-axis orthogonal mechanical stabilization structure and high-torque motors, the C-200T is able to provides an extreme stabilization effect against the vibration and high-speed air impact.
- With the Headtracker, the C-200T provides an immersive high-quality first-person control experience.

Characteristics:
- Adopts a 3-axis orthogonal mechanical stabilization structure and is able to carry a payload equipment at a maximum weight of 200g.
- Thanks to the high-torque motors with IMU temperature control and carrier AHRS fusion, the C-200T provides a stabilization accuracy at ±0.01°.
- With the Headtracker, the C-40T provides an immersive high-quality firstperson control experience.
- Supports for Headtracker, UART (private protocol & MAVLink), S.BUS, CRSF and PWM control.
- Can be mounted onto multiple carriers, whether downward or upward.
- 12 ~ 18 VDC wide voltage input.

Specification:
- Product model: C-200T
- Dimensions (with damper):
  Length: 79 ~ 82.7mm
  Width: 64.7 ~ 81.3mm
  Height: 91.55mm
- Weight (with damper): 125g
- Operating voltage: 12 ~ 18VDC
- Power: 15.5W (static) / 38W (stall) at 18VDC
- Mounting: downward / upward
- Control port: for Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM
- Wire-through aperture: ϕ4.6mm

Gimbal:
- Gimbal type: 3-axis orthogonal mechanical stabilization
- Angular accuracy: ±0.01°
- Controllable range:
  Pitch: -135° ~ +40°
  Roll: ±50°
  Yaw: ±155°
- Max rotation speed: ±200°/s
- Camera suitability: maximum payload of 200g

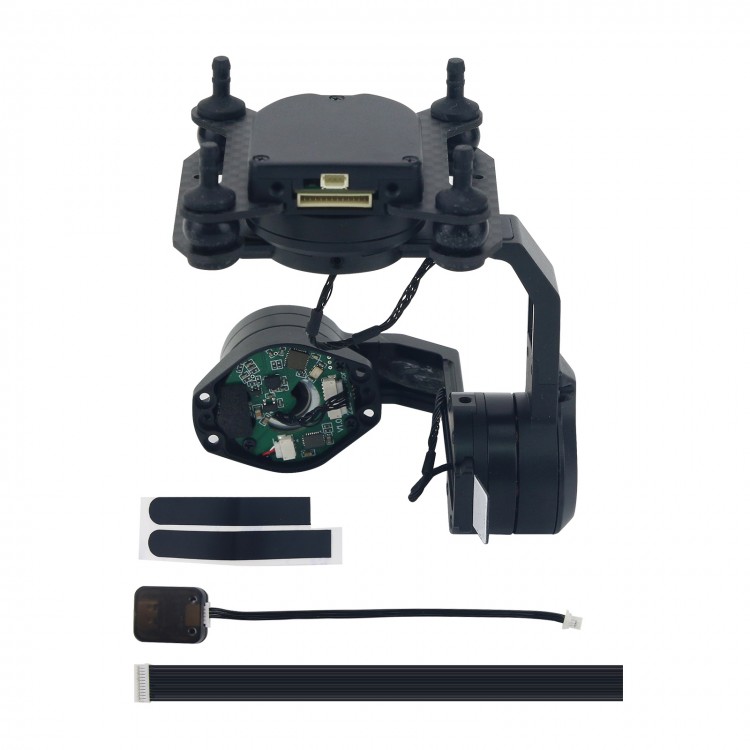

Package Included:
- 1 x FPV Gimbal
