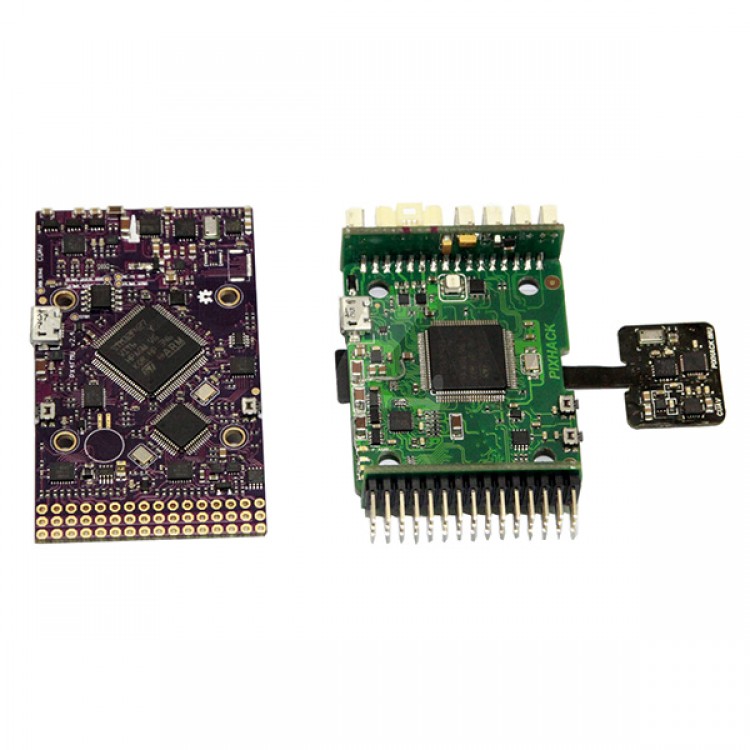

• Cuav Pixhawk 2.4.3 Autopilot Flight Control System Pixhack Unique Version for Multi-rotor and Fixed Wing

Cuav Pixhawk 2.4.3 Autopilot Flight Control System Pixhack Unique Version for Multi-rotor and Fixed Wing

Availability: In stock, usually dispatched in 1 business day

  • Price:$169.90
  • Price in reward points: 1699 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $166.50 $163.10 $158.01 $151.21 Contact US
Quantity:

Cuav Pixhawk 2.4.3 Autopilot Flight Control System Pixhack Unique Version for Multi-rotor and Fixed Wing

Key Features
-168 MHz / 252 MIPS Cortex-M4F
-14 PWM / Servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
- Abundant connectivity options for additional peripherals (UART, I2C, CAN)
- Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
- Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
- Redundant power supply inputs and automatic failover
- External safety switch
- Multicolor LED main visual indicator
- High-power, multi-tone piezo audio indicator
- microSD card for high-rate logging over extended periods of time

-  Processor
        32bit STM32F427 Cortex M4 core with FPU
        168 MHz
        256 KB RAM
        2 MB Flash
        32 bit STM32F103 failsafe co-processor
 -  Sensors
        ST Micro L3GD20H 16 bit gyroscope
        ST Micro LSM303D 14 bit accelerometer / magnetometer
        MEAS MS5611 barometer
 -  Interfaces
        5x UART (serial ports), one high-power capable, 2x with HW flow control
        2x CAN (one with internal 3.3V transceiver, one on expansion connector)
        Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
        Futaba S.BUS® compatible input and output
        PPM sum signal input
        RSSI (PWM or voltage) input
        I2C
        SPI
        3.3 and 6.6V ADC inputs
        Internal microUSB port and external microUSB port extension
