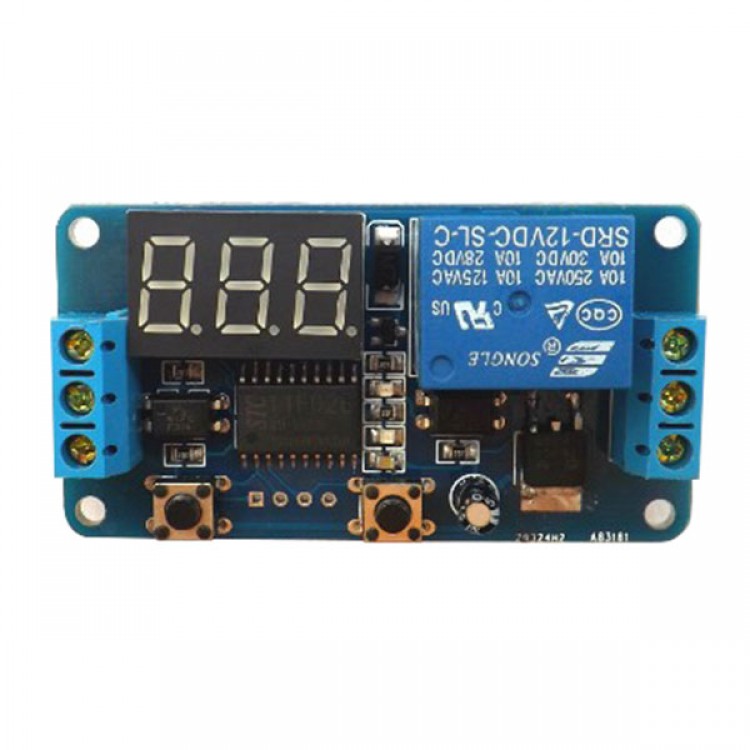

Delay On Off External Trigger Delay Switch 12V Relay Module Time Adjustable
Description:
- This product is the new type digital 12V delay module, adopting high qualilty relay two sided PCB material, stable performance
- Product delaying time can be set by yourself, can set the parameters by press button,
- Precision delaying, deviation 0.01% every second, delaying time is 0-999 sec, LED changes every one second
- LED digital display, trigger delaying, 12V relay module, can triggered by external signal. When powered on, LED light is on, relay is not working, when there is external trigger, relay starts working, counting down relaying, when the counting down becomes zero, the relay is off
- Module is high level trigger, counting time 0-99sec
- Wide range of this product, mostly applied in many area
- The product has low consumption mode, pressiing the left button for long time, can close digital tube or start
- The output input all has coupling isolation, enhancing anti inteference ability, guarantee the stability
Paramters:
- Voltage: 12V (or 5V)
- Dimension: 63.6*33.1mm
- Current: 12ma, about 50ma when relay is working
- Loading: below 250V 10A AC or below 30V 10A DC
