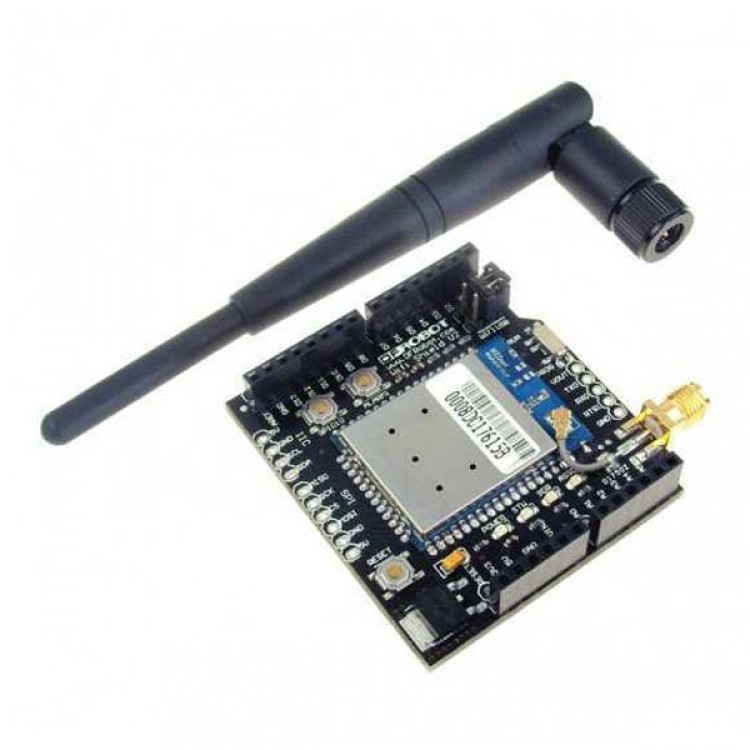

DFRobot TEL0047 WiFi Shield V2.1 For Arduino (802.11 b/g/n)

Availability: In stock, usually dispatched in 1 business day

  • Price:$108.90
  • Price in reward points: 1089 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $106.72 $104.54 $101.28 $96.92 Contact US

DFRobot TEL0047 WiFi Shield V2.1 For Arduino (802.11 b/g/n)

Product Description
- DFRobot is very proud to release this first 802 b/g/n wifi shield in the Arduino market. The shield uses WizFi210which is a low power-consuming WIFI module which is applied with dynamic power management technology. When the WIFI module needs to be on but not work, it can be set to Standby mode a low power mode, and the module just needs to be woken up when it has to work. The WIFI wireless module is based on WizFi210. It provides the bridging from TTL serial port communication to IEEE802.11b/g/n wireless communication. So any device with TTL serial ports can easily be connected with this WIFI module and controlled and managed remotely through a wireless network. Different kinds of communication protocols and encryption algorithms are integrated with the module. The Arduino architecture enables you to easily integrate this module into any Arduino based project.

- Wifi Chip: WizFi210;
- Radio Protocol: IEEE 802.11b/g/n Compatible;
- Supported Data Rates: 11, 5.5, 2, 1 Mbps (IEEE 802.11b);
- Modulation: DSSS and CCK;
- RF Operating Frequency: 2.4 - 2.497 GHz;
- Antenna Options: Chip antenna and U.FL connector for external antenna;
- Networking Protocols: UDP, TCP/IP (IPv4), DHCP, ARP, DNS, HTTP/HTTPS Client and Server(*);
- Power Consumption(Typical): Standby = 34.0 µA Receive = 125.0 mA Transmit = 135.0 mA;
- RF Output Power (Typical): 8dBm ± 1dBm;
- Security Protocols: WEP, WPA/WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP;
- I/O Interface: UART, SPI(*), I2C(*), WAKE, ALARM, GPIOs;
- Power Source: 3.3V;
- Dimensions(except Antenna): 59 x 54 mm;
- Shipping List:
- WiFi Shield V2.2 for Arduino (1 unit);
- Antenna (1 unit).
