Arduino WiFi Shield 5V Expansion Board Linux Development Board with SD Card Slot for DIY
Description:
- With micro SD card slot
- Connect to the internet throught wireless
- Every factors of the platform is visible and open
Specification:
- Operating voltage: 5V (supplied by Arduino main board)
- Compatible with Arduino Due
- Connection through 802.11b/g
- Encryption mode: WEP and WPA2 Personal
- Connection to Arduino through SPI port
- Micro SD card slot on the main board

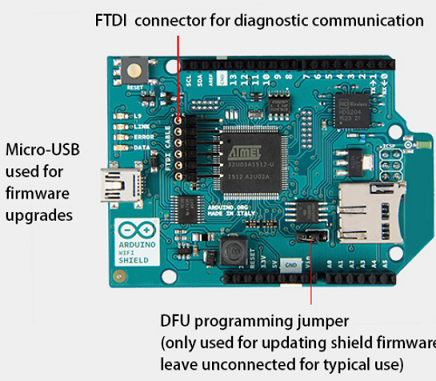

- ICSP interface
- FTDI for WIFI Shield seriel debugging
- Mini USB interface for WIFI Shield firmware update

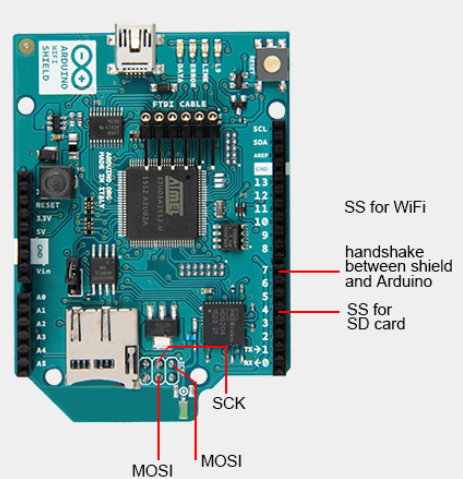

Note: SPI bus cable is for HDG204 and SD card. So it is only one is available at the same time. If you want to use at the same time, the relative base will deal with it.If you do not use the peripheral device in the program, you need to cancel the selection. The above operation to SD card,PIN 4 as the output and setting as high level. For HDG204, take digit pin 10 as the high level output.
Package included:
- 1 x Arduino WiFi Shield
