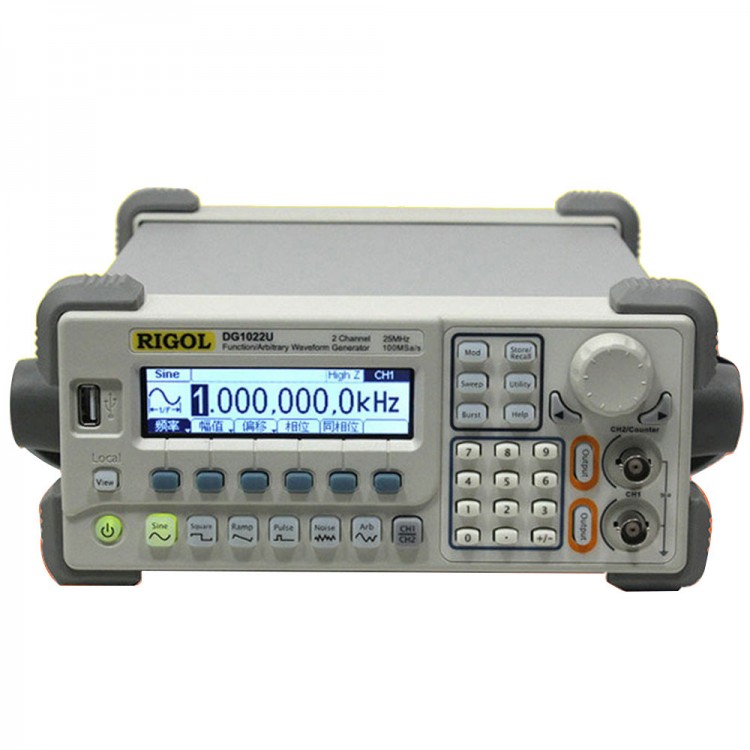

DG1022U 2 Channel 25 MHz Arbitrary Waveform Function Signal Generator w/Frequency Meter
Features:
- Advanced DDS technology, 2 analog channels output, 25 MHz maximum output frequency
- 100 MSa/s of sample rate, 14 bits of vertical resolution, 4k points of memory depth
- Intuitionistic user interface, to be easy to use without specification
- DDS technology: Output signals become more accurate and stable with lower distortion
- 10 standard waveforms: Sine, Square, Ramp, Pulse, Noise, Exponential Rise, Exponential Fall, Sinc, Cardiac, DC
- Arbitray waveform defined by user
- Versatile modulation and variety of waveforms: AM, FM, PM, FSK, Sweep, Burst
- Seamless connectivity with DS series digital oscilloscopes: Lossless recurrence of stored waveforms obtained from DS
- Versatile input and output: External modulation source, External clock reference (10 MHz), External trigger input, waveforms output, Digital synchronous
- Multi-language user interface, built-in help system
- High accuracy and wide band width frequency counter range up to 200 MHz
Specifications:
- Type: Black and White LCD Screen
- Resolution: 256 Horizontal x 64 Vertical
- Grey Degree: 4 Grey Level
- Contrast (typical): 150 : 1
- Light (typical): 300 nit
- Power Supply: 100-240 VACRMS, 45-440Hz, CAT II
- Consumption: Less than 40W
- Fuse: 2A, T Level , 250V
- Temperature Range: Operation:10~+40 deg C
- Non-operation:-20~+60 deg C
- Cooling Natural cooling
- Humidity Range: Below +35deg C=90% relative humidity; +35~+40DEG C:=60%relative humidity
- Height Range: Operation : below 3,000m
- Non-operation: below 15,000m
- Width: 232mm
- Height: 108mm
- Depth: 288mm
- Package excluded Weight: 2.65 Kg
- IP Protection: IP2X
Package included:
- 1 x Signal Generator
- 1 x Power cable
- 1 x CD
- 1 x USB cable
- 1 x BNC cable
- 1 x Manual
