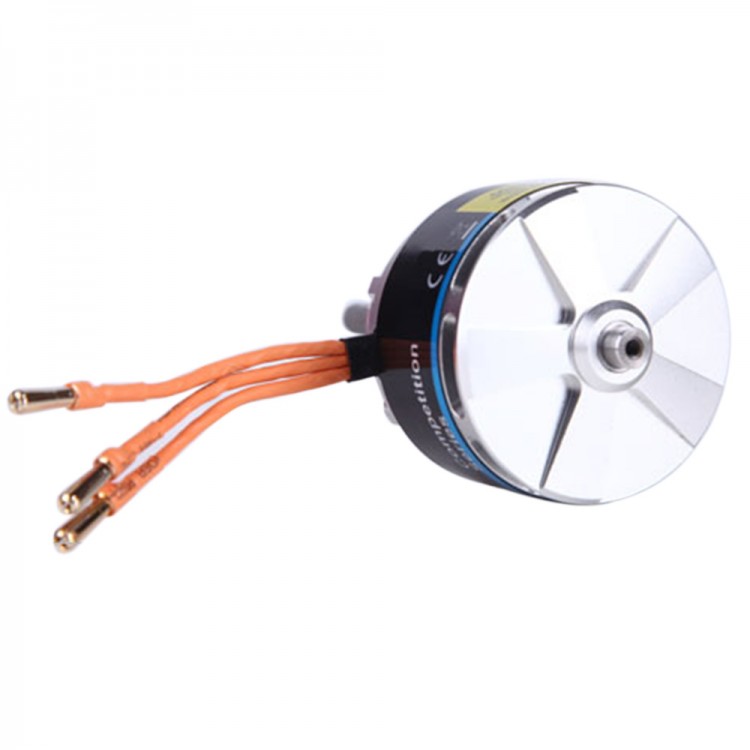

DUALSKY XM6350DA-14 200KV Brushless Motor DA3 Series for FPV Multicopter UAV F3A 3D

Availability: In stock, usually dispatched in 1 business day

  • Price:$209.31
  • Price in reward points: 2093 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $205.12 $200.94 $194.66 $186.29 Contact US
Quantity:

DUALSKY XM6350DA-14 200KV Brushless Motor DA3 Series for FPV Multicopter UAV F3A 3D

Features:

- Innovative MS design, eliminate the MS gap
- Lengthen the external main shaft, comptible with more propellers,equipped with new double nuts
- Optimized case
- Increase 6350A with F3A power and light weight
- The rotor can bear larger peak power with built-in centrifugal fan
- 0.20mm laminations
- Thicker high-temperature wire in parallel to improve insulation and impact resistance
- Optimize motor slot full rate; Improved magnetic efficiency
- Improved air-gap and improved efficiency
- There is bearing bracket behind the motor to further reduce the vibration

Specifications:
- Model NO.:XM6350DA-14
- Weight w/o accessories: 525g
- Diameter: 63mm
- Length: 56mm
- Length w/propeller adapter: 74.5mm
- Dia. of shaft: 8mm
- Slot,poles: 12N 14P
- Motor mounting holes[Pitch,size]: (A)32mm,4-M4;(B)44mm,4-M4
- Idle current 10V(A): 0.7
- Resistance: 43Ω
- Norminal voltage: 30-42V,10S Lipo
- Bursts current: 77A
- Peak current: 2850W
- Crusing power: 1560W (30mins)
- Input connector: 4mm GC
- Recommended ESC: xc 10036hv v2 w/firmware build V3.02
- Propeller: CF 20x14, 21X13, APC 20X10E
- One piece steel shaft: Yes
- Propeller adapters: Yes(w/dual nut)
- Dynamatic balanced rotor: Yes
- Heavy duty design:Yes (two-sided)
- Water and duat proof:Yes (IP34)
- Lightened Design:Yes
- Rear support point:Yes (D8x5mm)
- Max.weight of F3A/freestyle airplane(kg):4.9
- Max. weight of UAV airplane: 7.3

Package included:
- 1* DualSky motor
