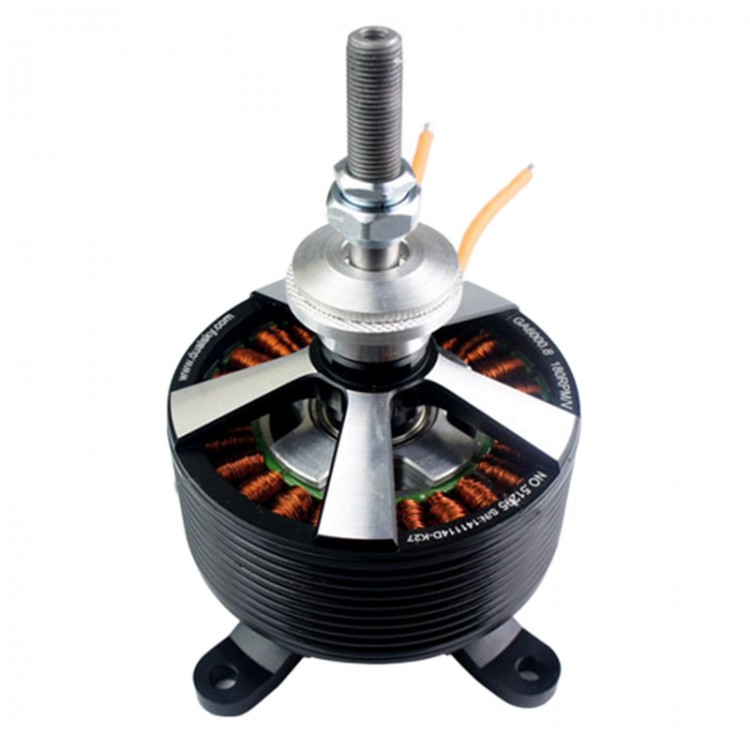

DUALSKY Xmotor GA6000.8 180kv Brushless Motor for Giant RC Multicopter Quadcopter 1PCS

DUALSKY Xmotor GA6000.8 180kv Brushless Motor for Giant RC Multicopter Quadcopter 1PCS

Main Features:
- Maximum output: 6000w (8.16 HP)
- New modular light weight structure
- Dualsky 28 poles efficient structure
- Driven directly by 90 mm diameter rotor without gearing box
- Working quietly, no CO2 emission and a wonderful alternative to 50-60 cc petrol engine
- Suitable for less than 9kg 3D and aerobatic models and less than 14kg fixed wings UAV model planes

Features
- Using the best 0.2 mm silicon steel sheet raw materials
- Using high grade Neodymium magnet which is resistant to high temperature
- Lower IR winding wire to decrease the temperature remarkably after long-time working
- Dismountable stator, easier to maintain
- 12 mm diameter high strength shaft (external 10 mm diameter)
- Imported over-sized NSK bearings, low noise and ultra-long life
- Long shaft(10mm) and no need to drill the propeller
- Propeller fixed with two screws
- Pre-drill a 5 mm spinner fixing hole at the top of shaft
- High-precision rotor, dynamically balanced on both sides, lowest resonance in RC industry
- New stator cover protecting the power wires
- Integrated motor mount
- Beautiful and precise with star appearance and second processing
- Laser marking, highlighting grades, and etched with the factory serial number
- Come with DB6 plug and motor extension

Specification:
- RPM/V: 180KV
- Weight: 1090g
- Outer Diameter: 90.2mm
- Length w/ propeller mount: 92mm; w/o propeller mount : 78mm
- Diameter of Shaft:10mm
- Mounting holes pitch: 100mm
- Slots,Poles :24 28
- Idle Current(Io) @10V: 2.3A
- Resistance(Ri): 12.6mOhm
- Nominal Voltage(V):30-51V, 10-12SLipo
- Peak power[15s]: 6800W(9.2HP) @ 8000RPM
- Bursts current[15s] :140A
- Cruising power[8 mins] :3500W (4.8HP)
- Recommended ESC : 130A-160A HV Series
- Propeller (NO ELECTIRC PROPELLER ALLOWED): 22x10, 22x12, 23x8, 23x10,24x8, 24x9, 24x10
XOAR 24x10CF @ 12S, 125A, Thrust 17kg (w/ Fully charged 5000mAh 70C battery)
- Weight of sports airplane: Up to 17.1kg
- Weight of 3D airplane: Up to 11.4kg
- Applications:Designed for 50-60cc class fixed wing airplane or UAV system

Recommand configuration (not included):
- Powerful configuration: 24 x10 propeller, 5000-6000mAh 12s, 35C Lipo packs
- Cruising configuration: 22 -24 inches propeller, 10000mAh 12S, 15C Lipo packs
- Recommended to use Dualsky high voltage ESC with continuous current 130A
