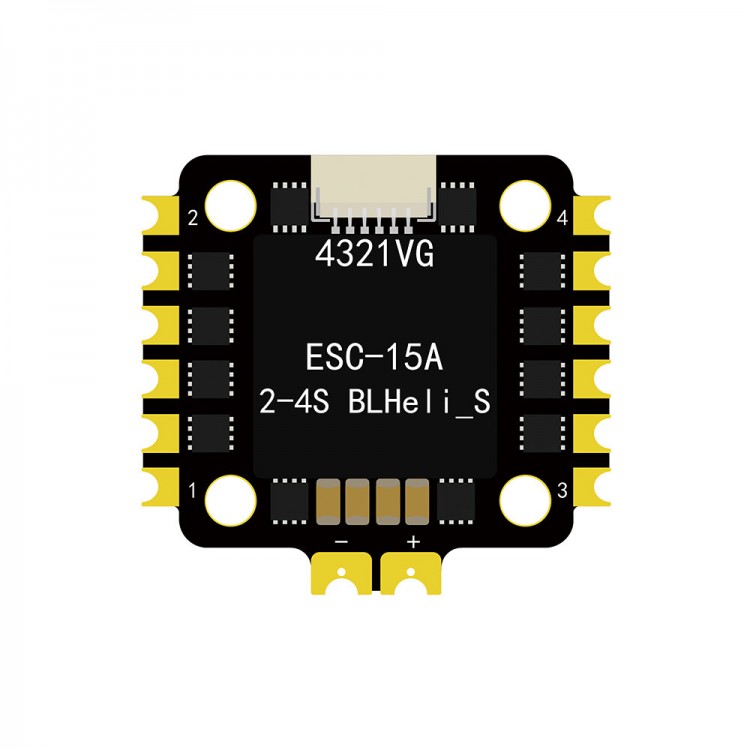

HAKRC 15A 1-4S 4-IN-1 ESC Mini Electronic Speed Controller Module for FPV Racing Drones Support for BLHeli-S

HAKRC 15A 1-4S 4-IN-1 ESC Mini Electronic Speed Controller Module for FPV Racing Drones Support for BLHeli-S

High Quality Hardware:

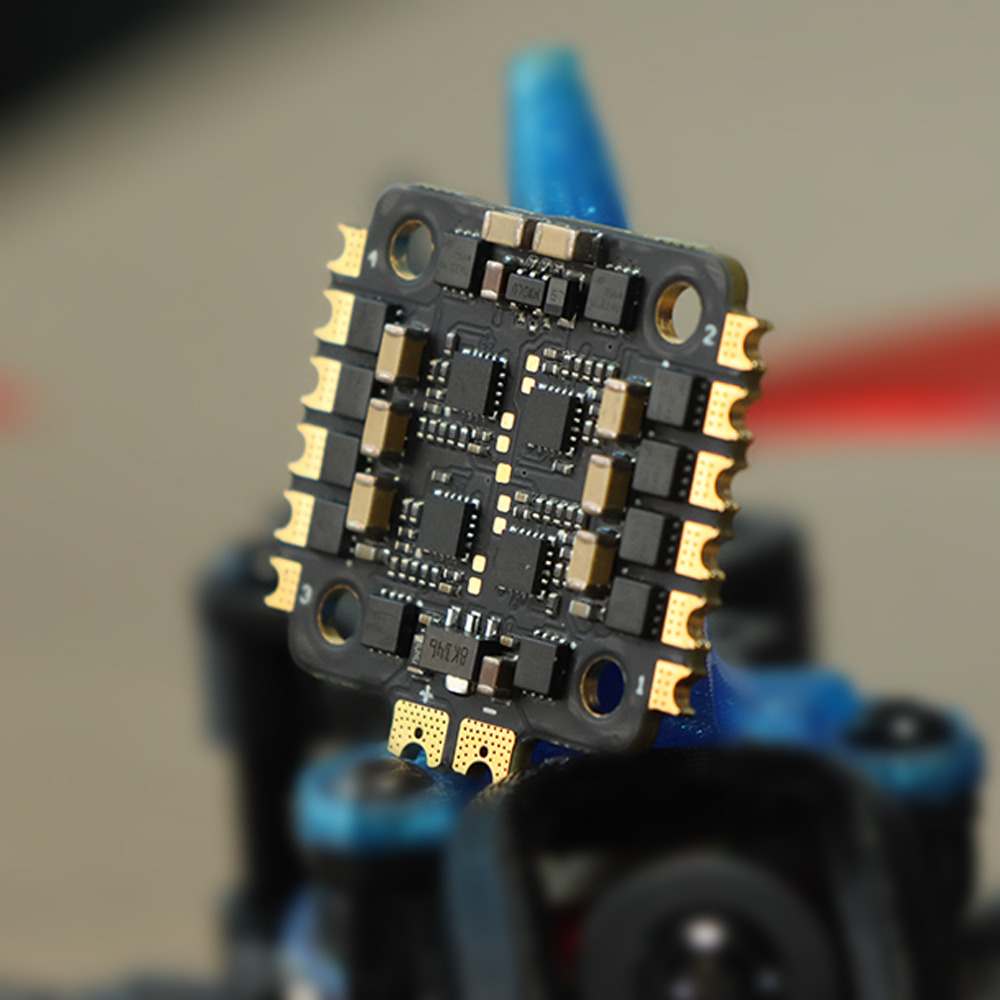

- The EMF8BB21F16G main control chip operates at a frequency of up to 48MHz. Imported MOSFETs, three in one IC drivers, and high-quality high-frequency ceramic capacitors from abroad. High end PCB production technology uses metalized edge wrapping on all solder pads to prevent them from falling off during use; 3 ounces of copper thickness, 4 layers of board, greatly reducing heat generation and increasing efficiency.

Highly Integrated and Compact:

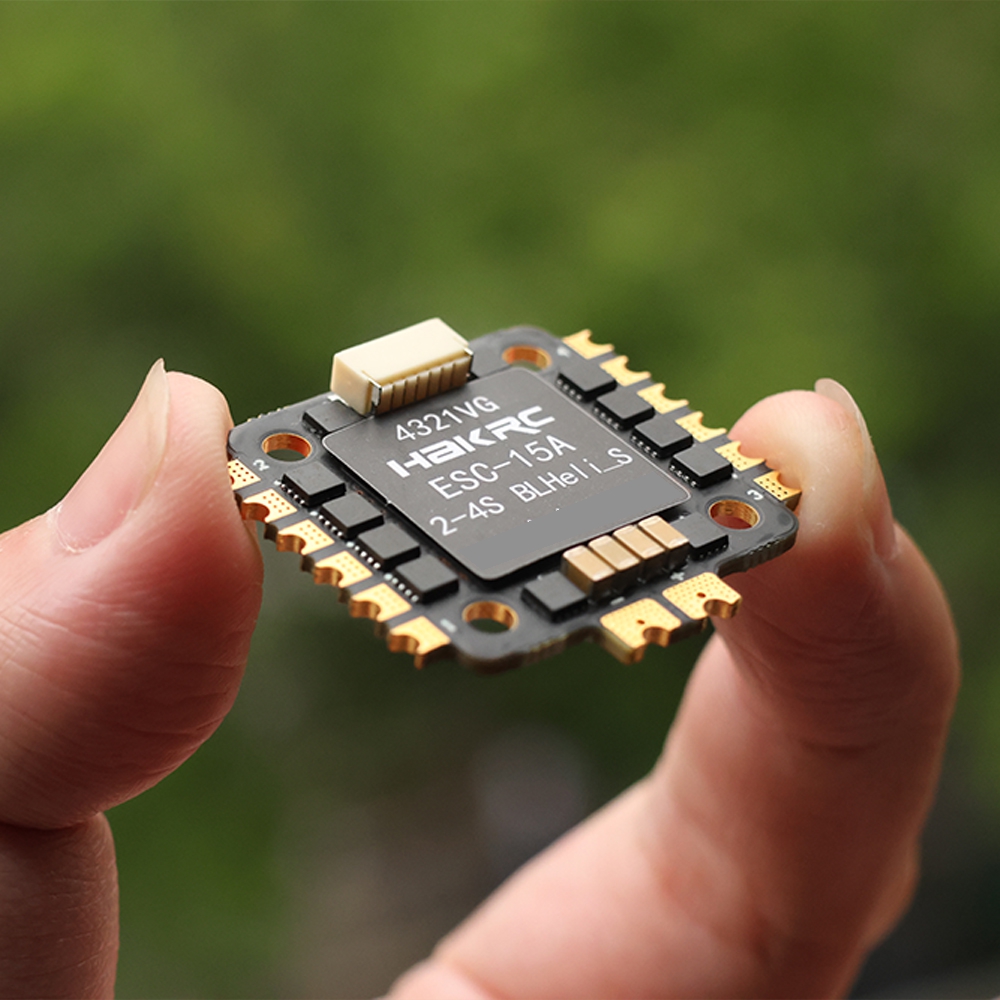

- Integrating 4 high-performance 15A/25A electronic controllers, built-in ammeters, and adopting new advanced SMT technology, such high integration results in a volume only the size of a time traveling aircraft flight controller, making installation and wiring very simple. Such incredible size and volume, tailored specifically for competitive grade time travel machines.

Native Support for BLHeli-S:
- Using for BLHeli-S firmware, with powerful performance and rich features; And it supports multiple ways to set ESC parameters or upgrade ESC firmware (such as using throttle signal lines, other development boards, or using cleanflight or betaflight firmware flight controllers to set or upgrade ESC).

Hardware PWM, Damped Light:
- Hardware PWM driven motor, with low noise and smoother throttle response. Damped Light technology, regenerative braking function, makes motor deceleration more sensitive and effective, and control more precise; Active continuation technology allows the battery to recover its power and extend the endurance time.

DShot150/300/600 Ready:
- Not only does it support normal PWM throttle signal mode, Oneshot125, Oneshot42, and Multshot ultra high speed throttle signals, but it also supports the latest DShot150/300/600 digital throttle, with strong anti-interference ability and fast response. The input and output lines use soft silicone wires, which are very durable, heat-resistant, and easy to solder.

Specification:
- Working current:
  2S-5S: maximum continuous working current of 25A, maximum instantaneous working current of 30A
  2S-4S: maximum continuous working current of 15A, maximum instantaneous working current of 20A
- Supported communication mode: DShot150/300/600 PWM Oneshot125, Oneshot42 and Multshot
- Parameter adjustment software: for BLHeliSuite
- Firmware version: BL16.7 (G-H-25)

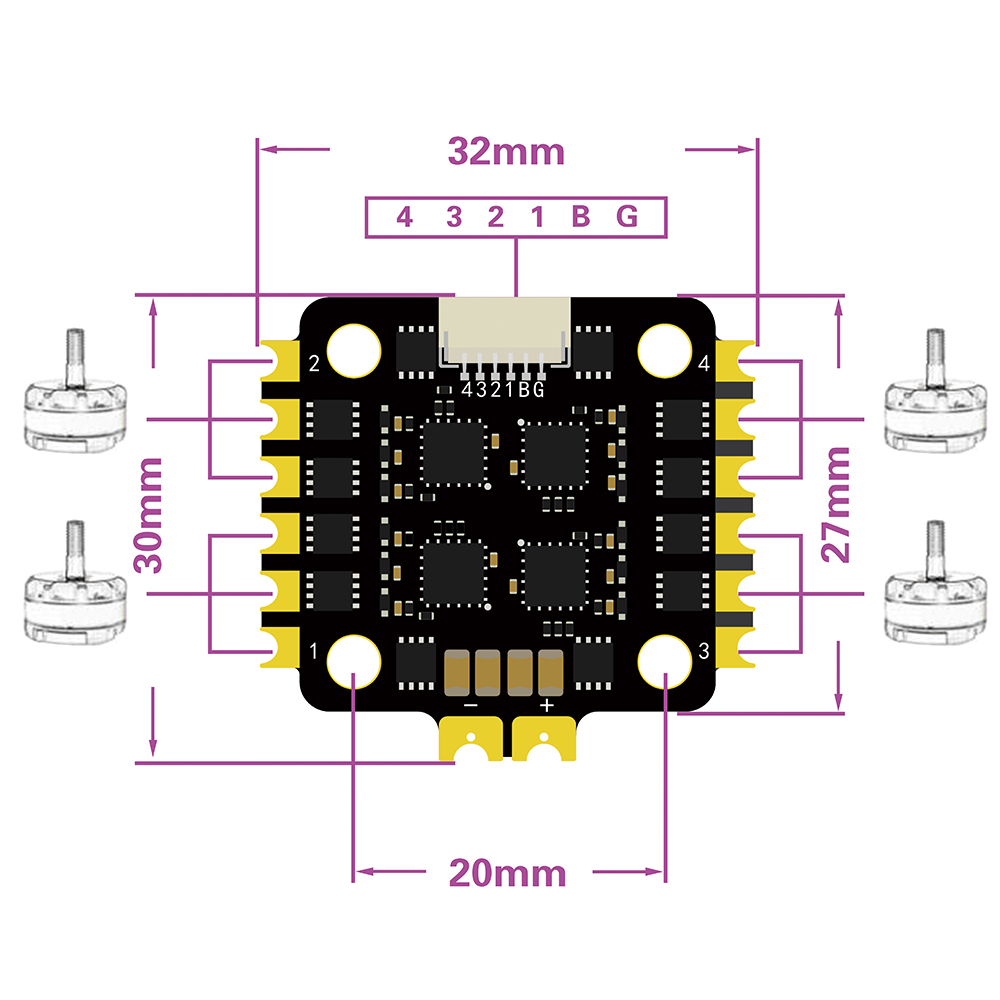

- Installation hole space: 20 x 20mm
- Product size: 32 x 30 x 6mm
- Net weight: 5.3g

Package Included:
- 1 x ESC Module
