Introduction:
Radiolink independently developed the new Mini PIX, and the enclosure uses closed protection for the barometer to reduce the airflow interference during the movement and reduce the vibration. At the same time, the software algorithm optimizes the air pressure to maintain the complete function for PIXHAWK, which is easy to setup.

Mini PIX Features:
- Digital Filter Algorithm: Radiolink mini pix flight controller design by digital filter algorithm for damped vibration, your drone still have a good performance even though without physical vibration dampener.
- Mini Size: New layout and full functions for PIXHAWK, same mini size as F4 FC. Suitable for mini racing drone, fixed wing, helicopter, multirotor and RC boat and car.
- Stabilization: Design a shell to reduce interference of airflow during flying, air pressure vent to ensure the accuracy of barometer measurement, built-in barometer sensor to make altitude hold stabilization.
- Top Firmware Vision: with STM32F405VGT6 processor and LPS22HB barometer, you just connect Mission Planner to adjust the PID's to reach your perfect settings.
- Easier Setting: Do not need complicated setting for beginner and professor player, USB port (for Android) to make convenient and simple parameter calibration settings, you can enjoy a good fly experience.

MINI PIX Description:
Keep It (for PIXHAWK) Fully Functional
Integrating the full functionality of the PIX into the Mini PIX makes professional flying hands no stranger.

High Performance Configuration
1. The main processor uses STM32F405VGT6 with the same computing speed as the PIX.
2. The barometer uses LPS22HB.
3. The gyroscope uses the MPU6500 for INVENSENS.
4. Geomagnetic uses the QMC5883L with HMC5983 statistics for Honeywell.
5. The new Mini PIX retains the full functionality for PIXHAWK, a high-profile, APM-class flight controller experience

DIY Essential Flight Controller
It is easy to DIY and equipped with your drone. Fixed-point-self-stabilizing-manually switch between hands, let the novices practice passing through the collision, and realize the advanced journey of the novice to the professional players.

Software Reduces Vibration
Optimized by software algorithms to achieve better shock absorption and smoother flight. Helicopters can fly easily without the need for a shock mount.

Air Pressure PosHold
The outer casing is sealed for the barometer to reduce the airflow interference during the movement, and the air pressure is determined by software algorithm optimization.

Mini Size
With a mini size only 3.9*3.9*1.4cm as F4, the Mini PIX weighs only a staggering 15g, even if it is a small through-machine assembly.

Adapt to Multiple Models
The Mini PIX can be used on helicopter models, racing drone, fixed wing and 3-6-axis drones, and the PosHold Mode-stabilize Mode-Acor Mode can be switched at any time, making flight no longer difficult.

Mini Pix Flight Controller Specifications:
- Connector Port: JST GH connector
- Receiver In: PPM/SBUS
- Transmitter: 6 oneshot/PWM
- USB Voltage: 5v+-0.3v
- Work Voltage: 5.1v
- Work Temperature Rang: -40 to 80℃
- Supported Models: Fixed wing/Multirotors/helicopter/Drone/Car/Boat
- Mini Pix Size: 3.9*3.9*1.4cm/1.54*1.54*0.47in
- Weight: 15/0.034Lb

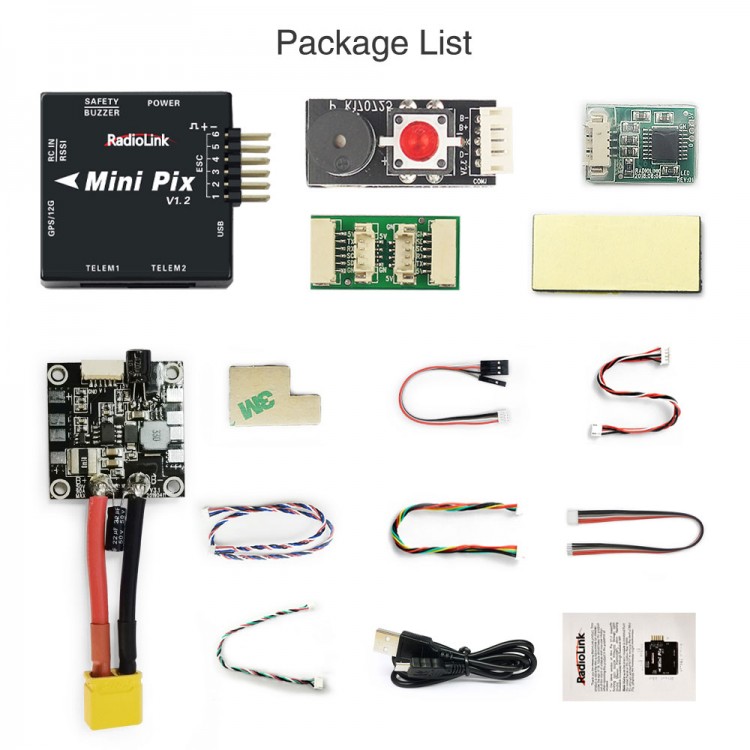

Mini PIX Package Included:
- Mini Pix Flight Controller x1
- Power Module x1
- Buzzer Safety Switch Button x1
- I2C Conversion Board x1
- FC Status Indicator Light x1
- Double-Sided Adhesive Tape x2
- USB Cable x1
- Receiver & RSSI Connection Cable x 1
- Buzzer Safety Switch Connection Cable x 1
- FC Indicator Light Connection Cable x1
- Power Module Connection Cable x1
- OSD Connection Cable x 1
- I2C Conversion Board Connection Cable x1
- User Manual x1

Note:
- Please ask support immediately when you need the FULL User Instruction.
- Flash Firmware: Please download Radiolink's Mission Planner. (On Radiolink Website)
- Parameter Setting: Setting methods same as those for Official Pixhawk.
- Battery is not included. 2-12S battery is supported by its power module.
