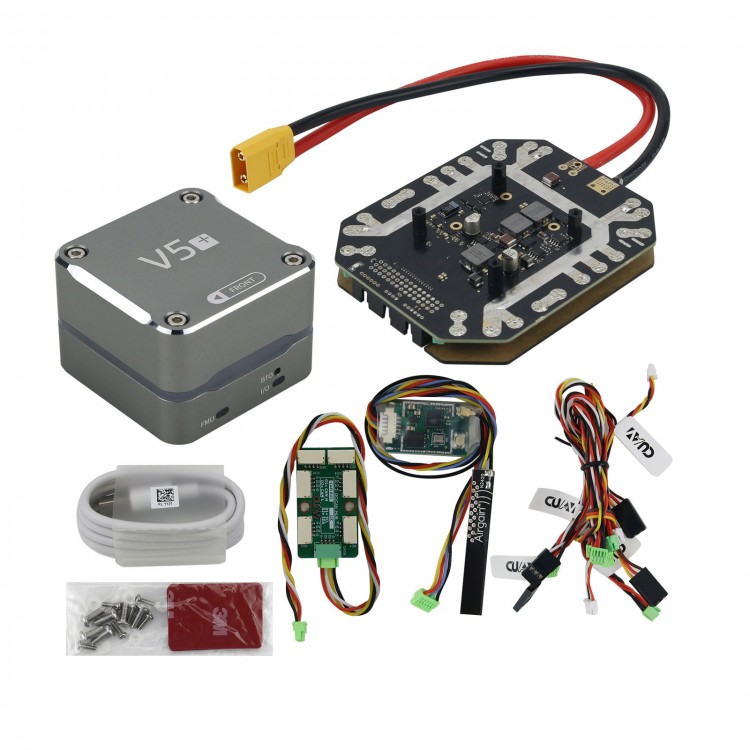

CUAV CAN PDB V5 Plus Carrier Board Autopilot Pixhawk Flight Controller for RC UAV Drone Helicopter Flight Simulator

CUAV CAN PDB V5 Plus Carrier Board Autopilot Pixhawk Flight Controller for RC UAV Drone Helicopter Flight Simulator

Product introduction:
- Can PDB is Cuav's new--incorporated "flight controller carrier board, which uniquely combines the functions of the flight controller carrier board and the power distribution board.
- When combined with Core, it can be used for drones / unmanned vehicles / drones, etc.
- This type of device provides an automatic driving function, and also provides 8-way redundant main power and 88W 5 / 12V power output.
- Whether it is circuit design or hardware work materials, Can PDB is the best among flight controller carrier boards and power distribution boards.

As the heat sink copper sheet is up to 952cm and the self-developed TTI algorithm, It can provide continuous working current up to 180A for any equipment, and at the same time provide 0.1A current and 0.05V voltage accuracy measurement comparable to precision instruments.

Product main functions:
1. Support 15 ~ 62V ultra wide voltage input
2.Continuous current: 180A
3. Accurate measurement of voltage and current, current accuracy within 110A is 0.1A, voltage accuracy is 0.05V
4.13 servo channel outputs
5.Dual regulated output interface: can provide up to 88W 5 / 12V power output for peripherals
6. Built-in up to 952CM heat sink copper sheet, effectively reducing the heat caused by the internal resistance of the circuit under high current
7. Power indication LED, direct indication of Lipo voltage status
8.Ultra-low dropout 8 main power output
9. Future upgrades support more functions such as high-precision power consumption statistics and instantaneous power consumption push

Hardware parameters:
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Input voltage: 15-62V (4-15S Lipo)
- Accurate measurement current range: 0-110A
- Maximum current range: 0-180A
- 5V regulated output: Max 8A, stable 6A
- 12V regulated output: maximum 4A, stable 3.5A
- Number of servo channels: 13
- Remote receiver signal support: RC_ .IN: PPM
- DSM_ SBUS_ RSSI: DSM / SBUS / PWM / 3.3v analog voltage
- Core support: V5 + Core and next-generation Core
- Supported models: Supports APM and PX4 firmware, and supports fixed-wing / 3-8 rotor / helicopter / VTOL vertical take-off and landing / unmanned vehicle / unmanned ship, etc.
- Fixed aperture: V5 + Core fixed aperture is M2.5, the rest are M3
- Working temperature: -20 ~ + 100 ° C
- Product size: 12cm (length) x10cm (width) x1.2cm (height)
- Weight: 200g (including 25cm wire)

Interface Type:
1. USB TYPE C * 1
2. GH2.5 5V8A * 1
3. GH2.5 12V4A *]
4. GH2.5 ADC * 1
5. CH2.5 DSM_ SBUS_ RSSI1 * 1
6. GH2.5 * 2 C * 3
7. GH2.5 RC_ .IN * 1
8. GH2.5 CAN * 2
10. CH2.5 GPS1 * 1
11. GH2.5 DSU1 * 1
12. CORE 1O * 1
