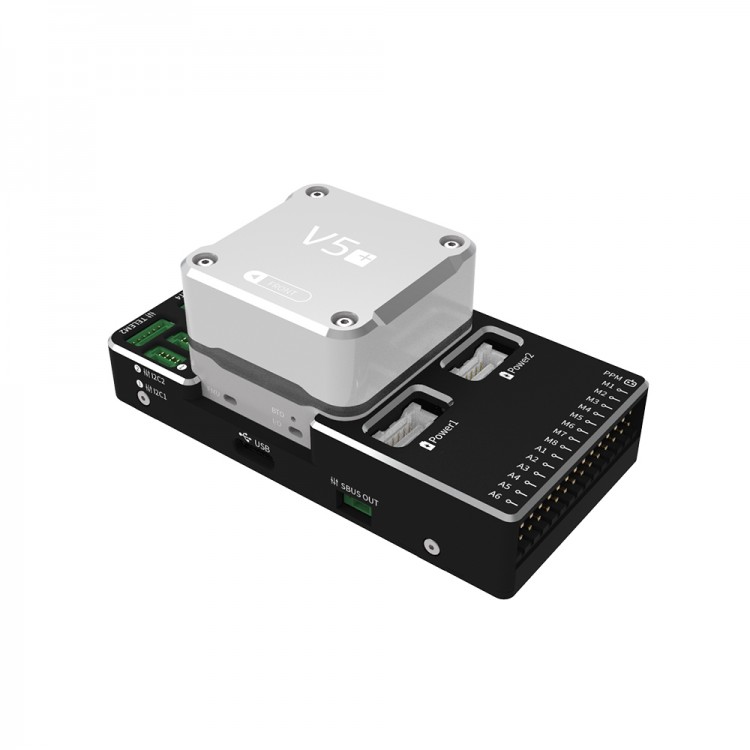

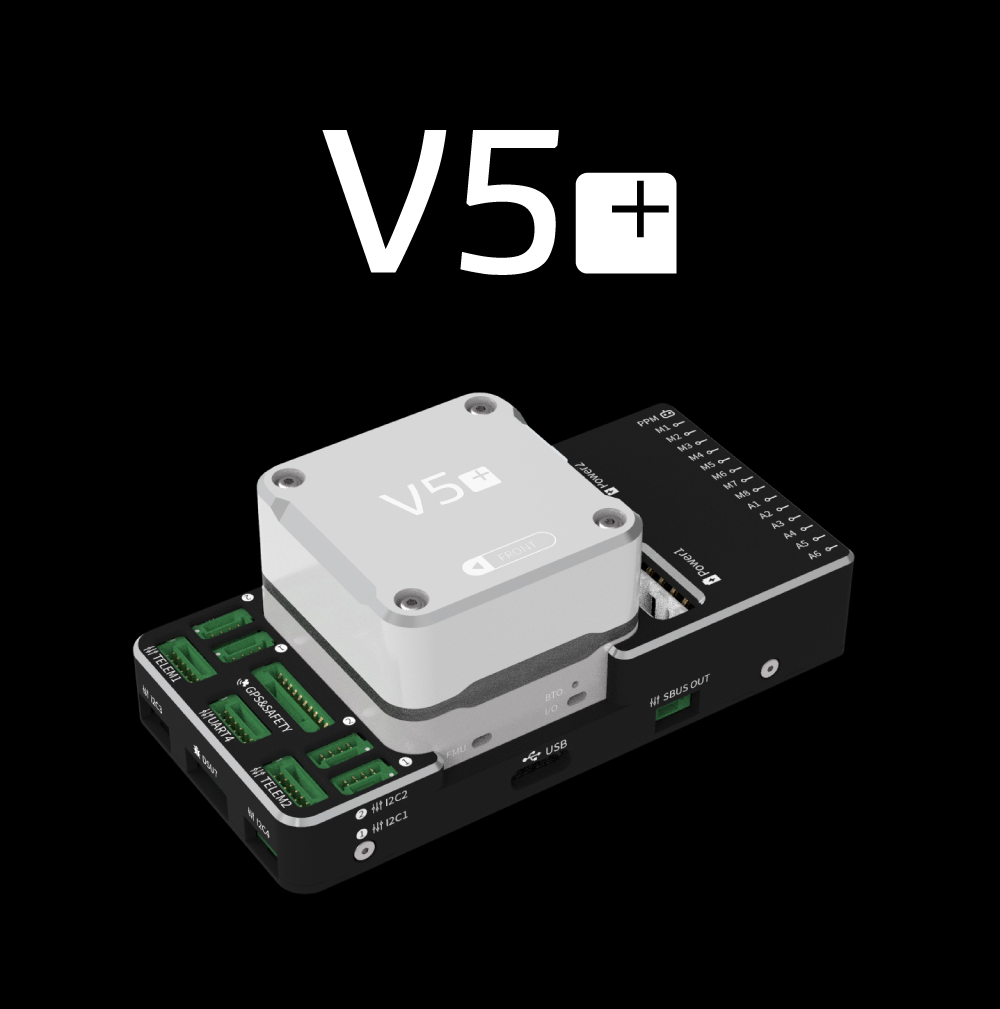

CUAV V5+ Flight Controller & NEO 3 GPS Module for FVP RC Drone Quadcopter Helicopter
Description:

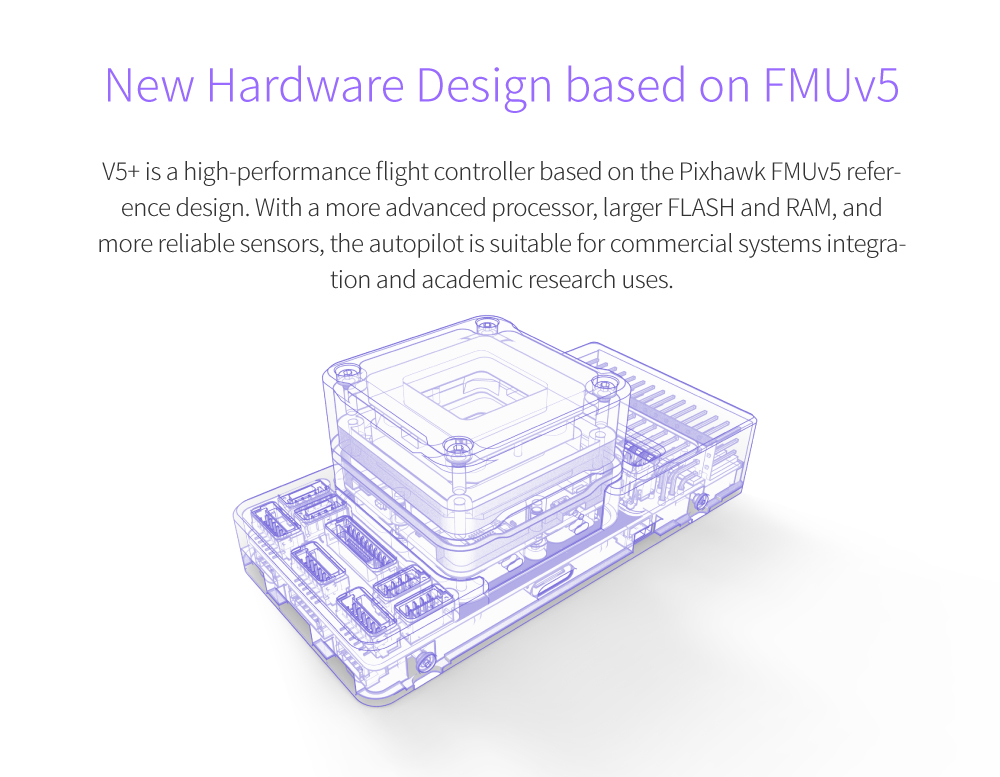

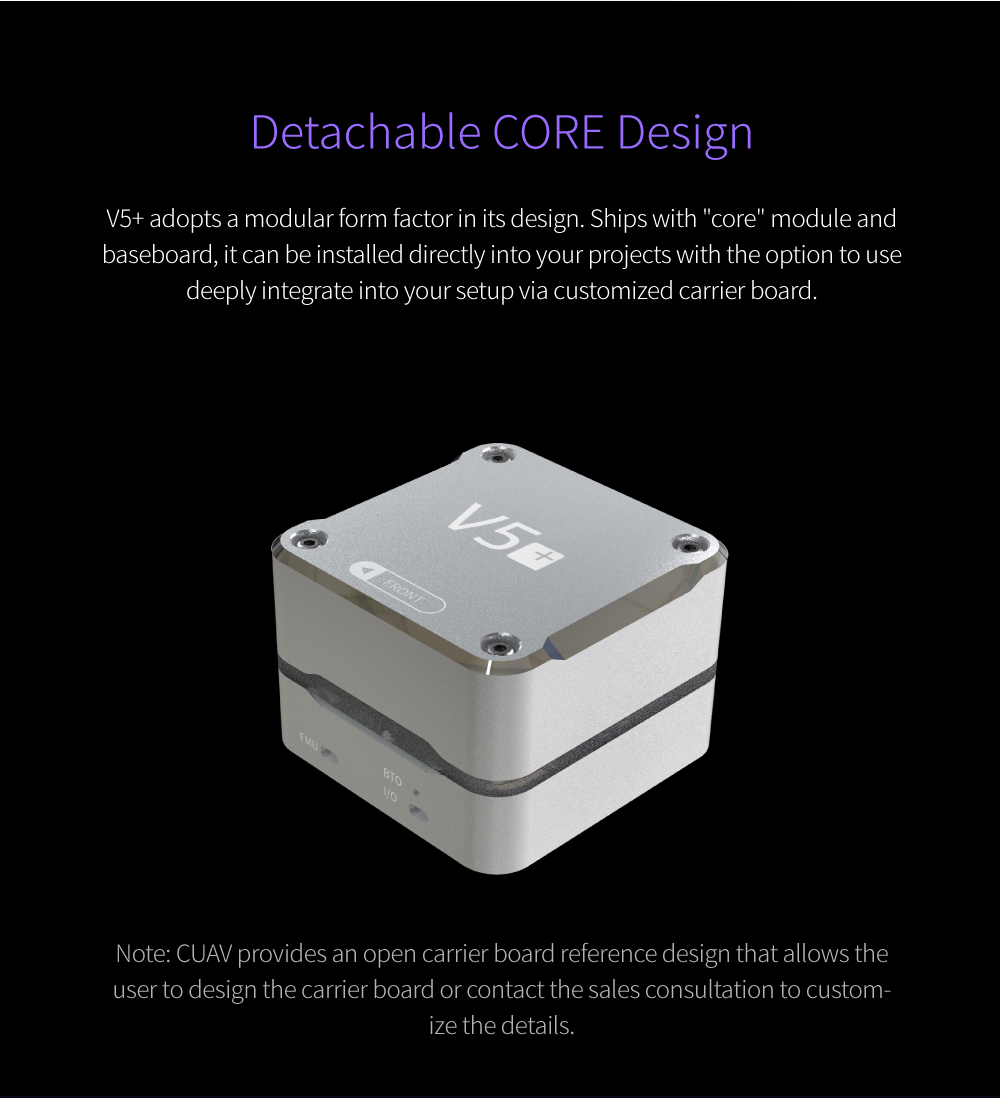

V5+ is an advanced flight controller manufactured by CUAV. The board is based on the Pixhawk FMUv5 design standard, the external interface uses the Pixhawk standard pinouts, and the modular design allows the users to customize their own carrier board. It is compatible with both PX4 and firmware for ArduPilot. V5+ is ideal for academic research and commercial systems integration.
Flight Controller Specifications:
Hardware parameter:

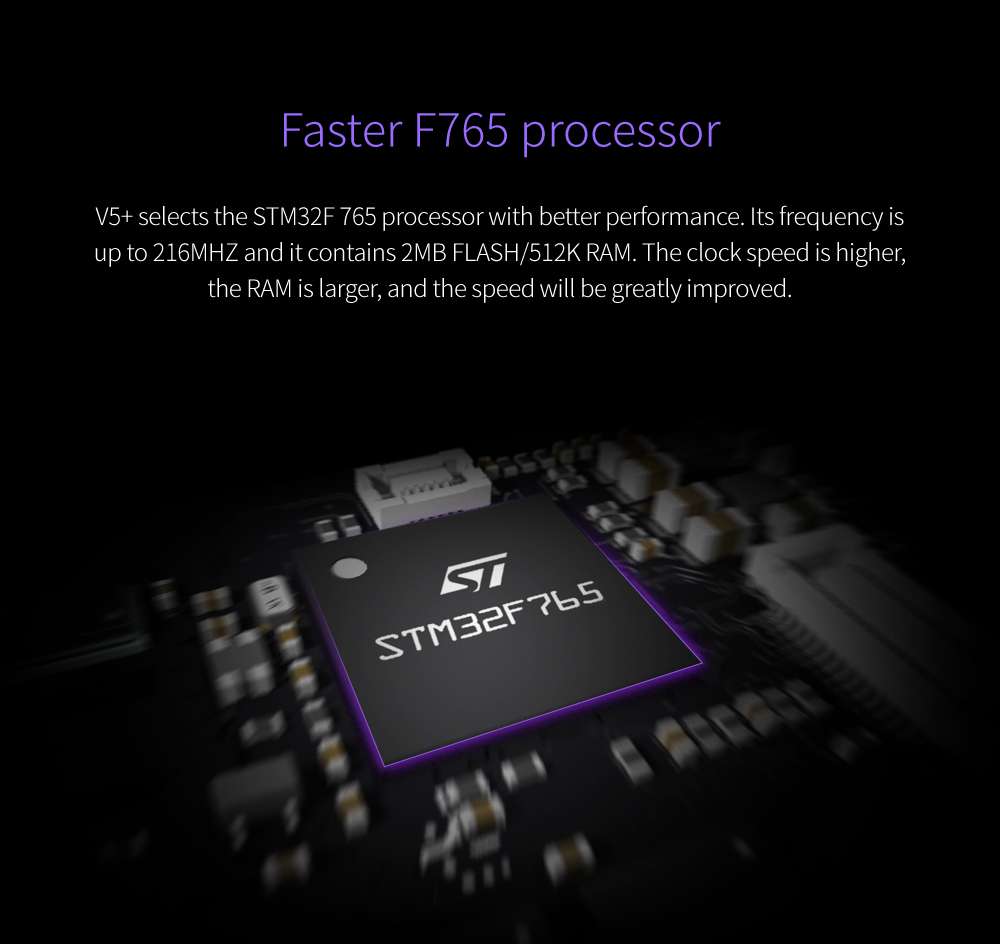

- Main processor: STM32F765 (32Bit for Arm Cortex-M7, 216MHz, 2MB flash, 512KB RAM)
- Coprocessor: STM32F100 (32Bit for Arm Cortex-M3, 24MHz, 8KB SRAM)

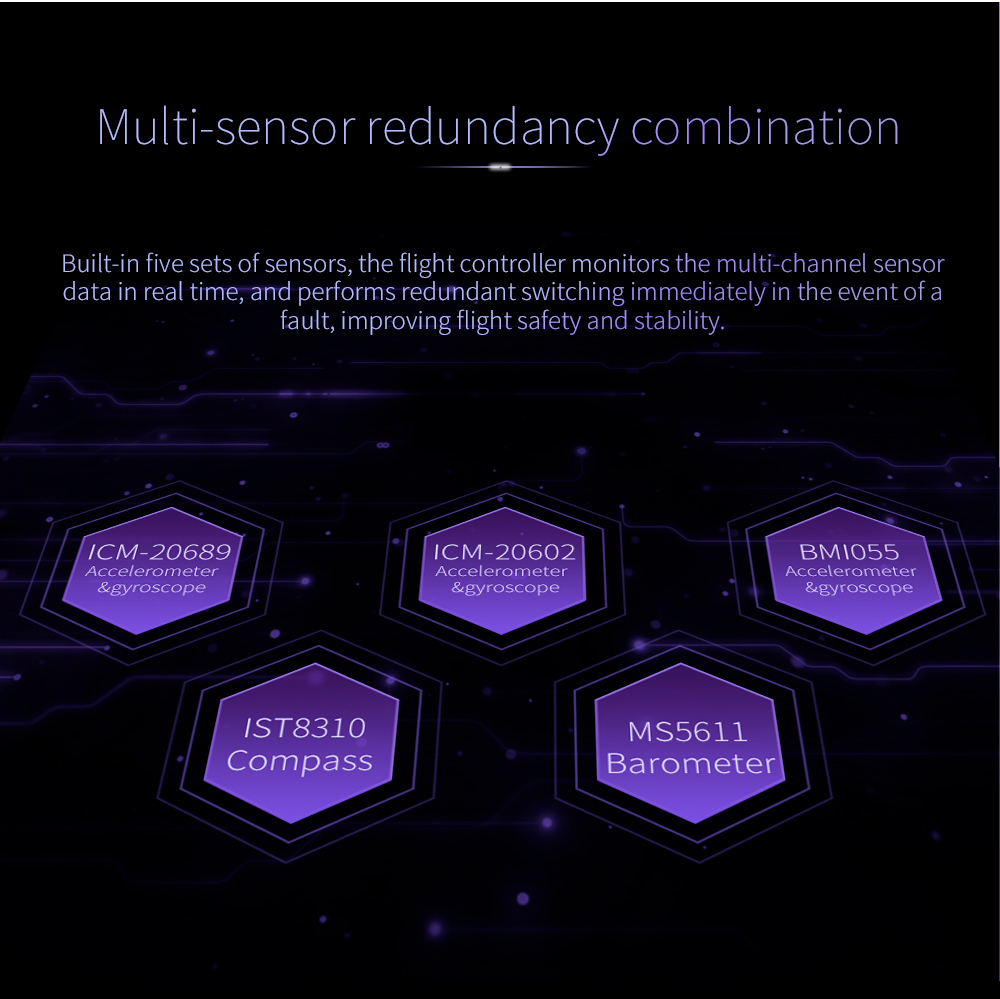

Sensor:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyro: ICM-20602/ICM-20689/BMI055
- Compass: IST8310
- Barometer: MS5611
Interface:
- UART: 5
- I2C: 4
- SPI: 1
- CAN: 2
- ADC: 2
- PWM out: 14
- PWM in: 6
- PPM in: 1
- DSM/SBUS/RSSI: 1
- Power1: 1
- Power1: 1
- Safety switch: 1
- Buzzer: 1
- USB-TYPE-C: 1
- TF slot: 1
Function:
- Firmware: for PX4/Ardupilot
- Model: Copter/Plane/Helicopter/VTOL/unmanned vehicle/Rover, etc.
- Power: Three-way power input redundancy

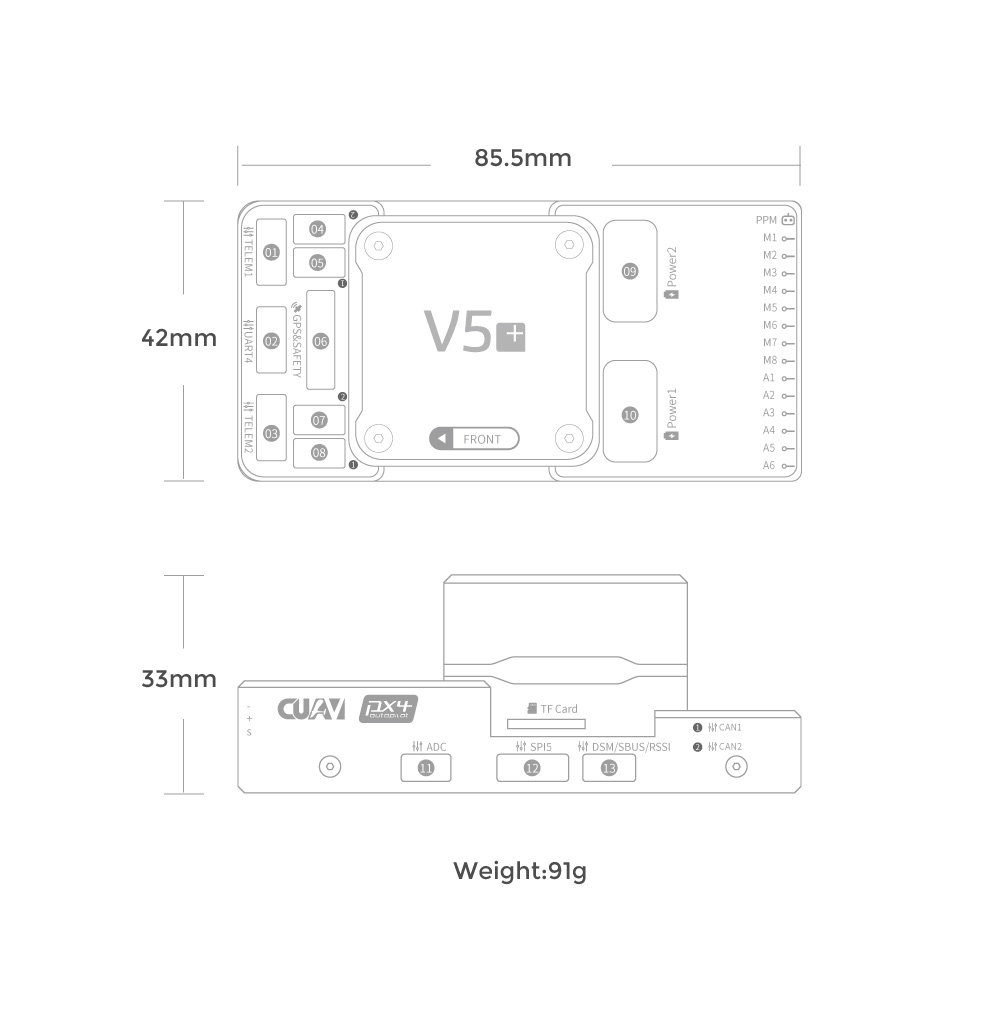

Size and Weight:
- Size: 85.5 x 42 x 33mm/3.4 x 1.7 x 1.3"
- Weight: 91g/0.2lb
Package Included:
- 1 x Flight Controller V5+
- 1 x I2C/CAN Cable
- 1 x ADC3.3 Cable
- 1 x RSSI Cable
- 1 x SUBS Cable
- 1 x HV PM Power Module
- 1 x Dupont Cable
- 1 x Pw-Link Module
- 1 x USB-Type C Cable
- 1 x 16G Memory Card
- 1 x DSM Cable
- 1 x CAN Extension Board
- 1 x NEO 3 GPS Module
