CUAV Pixhack V3X Flight Controller PIX Open Source + M8N GPS + Digital Data Link System for FPV Drone Quadcopter

Availability: Out Of Stock

  • Price:$486.69
  • Price in reward points: 4867 Reward Points: 49
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $476.96 $467.22 $452.62 $433.15 Contact US
Quantity:

CUAV Pixhack V3X Flight Controller PIX Open Source + M8N GPS + Digital Data Link System for FPV Drone Quadcopter

Ground station : Click here
Flight controller drive:  Click here
Pixhack information:  Click here
APM/PIX information:  Click here

Notice: The booking period is about 10 days.

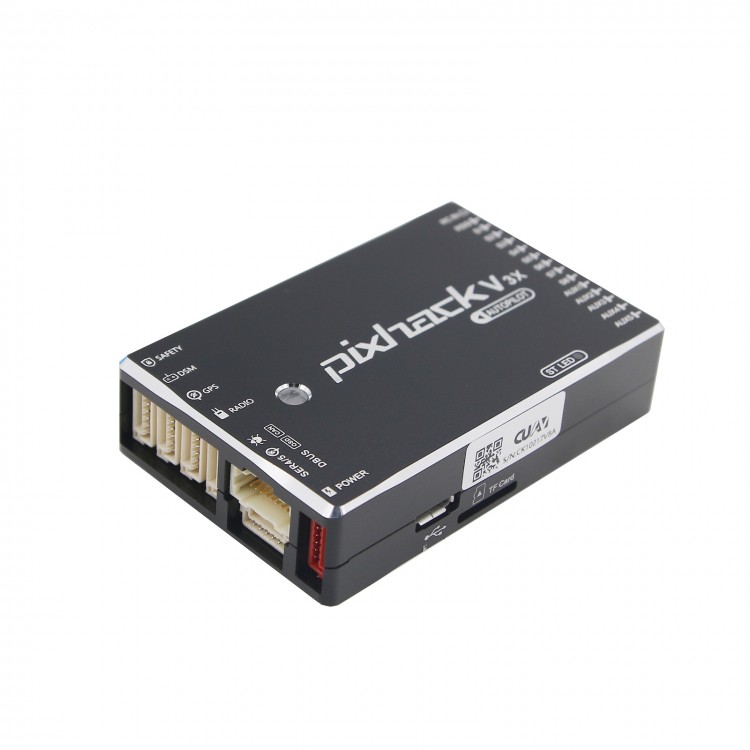

Flight Controller Specifications:
- Processor: 2
- Main processor: STM32F427 V3
- Coprocessor: STM32F1
- Support remote control signal: PPM/SBUS/DSM
- Power supply redundancy: Support 3 channels redundancy
- 6* 3 groups of IMU
- Support fixed wing/multirotor 3-8 axis/helicopter/car/boat
- Support PX4/APM software

Sensors:
- L3GD20 3-axis Accelerometer
- LS303D Accelerometer+Magnetic meter
- Ms5611 Barometer
- MPU600 gyroscope+ Accelerometer
- MPU9250 Accelerometer+gyroscope+Magnetic meter
- Ms5611 Barometer

Flight Controller Parameter:
- Weight: 70g
- Shell material: CNC aluminum alloy
- Size: 68*44*15
- Working temperature: -10~55 degree C
- PWM output IO: 13
- Mavlink seriel port: 2
- Support GPS:2
- Debug interface: 1
- I2C interface*2
- CAN interface*1
- Support smart battery
- HackLink : Support
- Built in shock proof

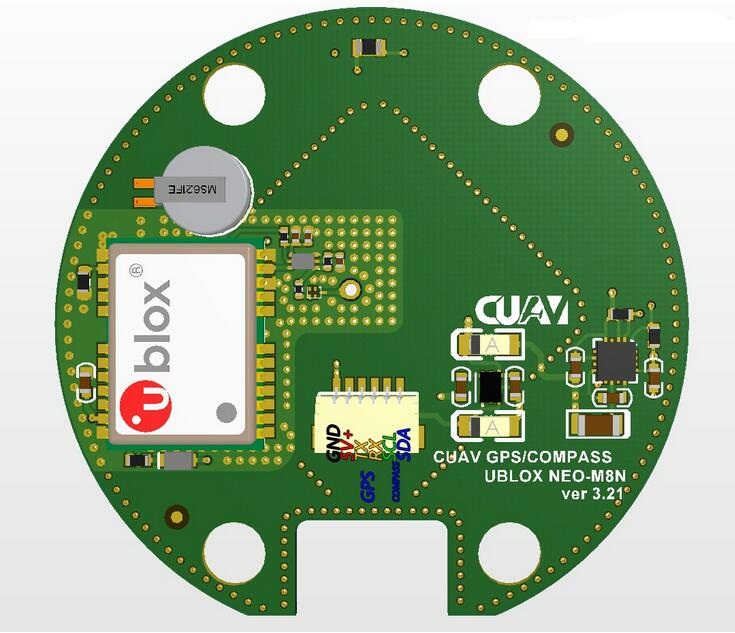

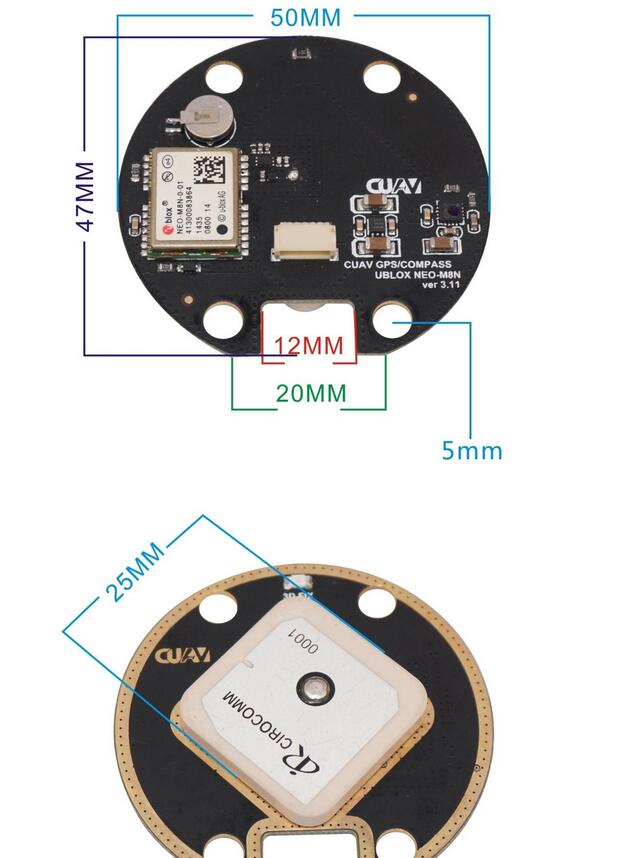

GPS:

M8N GPS:
- Integrated LNA amplifier chip+SAW filter chip
- LNA+SAW supports GPS,GLONASS,Galileo,BeiDou
- Integrated HMC5983 compass


CUAV HACK LINK Digital Data Link System :

Phone APP download: Click here
Manual : Click here

Specifications:
- Support HDMI video input (720-1080P)
- Real time 720P HD video and mavlink flying data
- Using APP to display video and flying control
- Dual antenna MINO technology, dual channel 500mW RF unit
- Distance up to 2-3km

Ground station:
- Built in OLED that can display flying data and quantity of electricity
- HDMI 720P vidoe output, can connect to monitor and glasses
- MAVLINK output, can connect to CUAV antenna

Description:
- HACK LINK is the HD digitallink system, supports MAVLINK data.
- This is for PIXHACK
- HACK LINK supports 720P HDMI real time video transmission and mavlink data, also supports PPM remote control data forwarding. You can see and control the video by phone or tablet PC.
- IMX6 CPU for ground/air station, and running Linux system
- Not support SBUS input, only supports PPM input
- Not support to connect the phone by USB
- RC IN without 5V output, if connecting PPM receiver,needs independent power

Air station:
- Communication ditance: 1-3km
- Effective isotropic radiated power (EIRP):500mW*2
- Receiving sensitivity (1%PER): -95dBm-+2dBm
- Antenna gain: 3.0-+0.7dBi@2450MHz
- Working frequency: 2.4Ghz ISM
- Antenna  connector: UFL
- Working voltage: 5V +-0.4V
- Max. current:1600mA
- Processor frequency: IMX6 1GHz
- Memroy: DDR3 512MB
- System disk capacity: 8G
- Delay: 100*200ms
- Working temperature: -5~60 deg C
- Size: 75*45*45mm
- Weight: 60g
- Video input format: HDMI 720/1080P
- Support hardware: Camera with HDMI output, GOPRO3/4/Xiaoyi,etc

Ground station
- Communication ditance: 1-3km
- Effective isotropic radiated power (EIRP):500mW*2
- Receiving sensitivity (1%PER): -95dBm-+2dBm
- Antenna gain: 5.0-+0.7dBi@2450MHz
- Working frequency: 2.4Ghz ISM
- Antenna  connector: SMA
- Working voltage: 5V +-0.2V
- Max. current:1700mA
- Processor frequency: IMX6 1GHz
- Memroy: DDR3 512MB
- System disk capacity: 8G
- Battery capacity: 3100mAh@3.6V
- OLED resolution: White @128*64
- Working temperature: -10~50 deg C
- Size: 80*45*25mm
- Weight: 85g
- Video input format: HDMI 720p

Test whether the communication is normal:
- Link the hackLink AIR  to the flight controller and then connect to the power.Wait for the start blue light flash and the green wireless status light keeps lighting.
- Switch on the HackLink ground power supply (Press the POWER key  for five seconds).The system boots and the system will start up successfully  in about 30 seconds.Then, "waiting" will
  be shown on the screen.
- The AIR blue status light will be long-bright in just a moment.
- The ground screen shows the flight controller date (Voltage mode and signal status) mavlink
- The ground normal start up and OLED success connection  display flow chart:
- When the two ends current is switched on and the plane blue start status keeps flashing.It means that we fail to connect to the ground end and might need to do matching operation.
- When the two ends current is switched on,the plane blue start status light keeps lighting.The ground OLED doesn't displays the flight date but shows " waiting mavlink ".It's a implies that there
   is a communication problem between the plane end and the flight controller.Test the connection line and the flight controller setting (try to switch on the telem fluid control setting ).

How to connect the mobile phone or the computer,please see the software usage:

Package list:
- 1 x Pixhack V3X Flight Controller
- 1 x 8CH PPM encoder
- 1 x Voltage and current sersor (unwelded)
- 1 x 8G TF card
- 1 x Buzzer+expansion board
- 1 x Cable
- 1 x USB cable
- 1 x Shock proof plate
- 1 x M8N GPS
- 1 x HACK-LINK Ground station
- 1 x HACK-LINK air station
- 2 x Antenna
- 1 x Micro HDMI cable
- 1 x USB data cable
- 1 x Power supply module
- 1 x HDMI interface cable
- 1 x PPM interface cable
