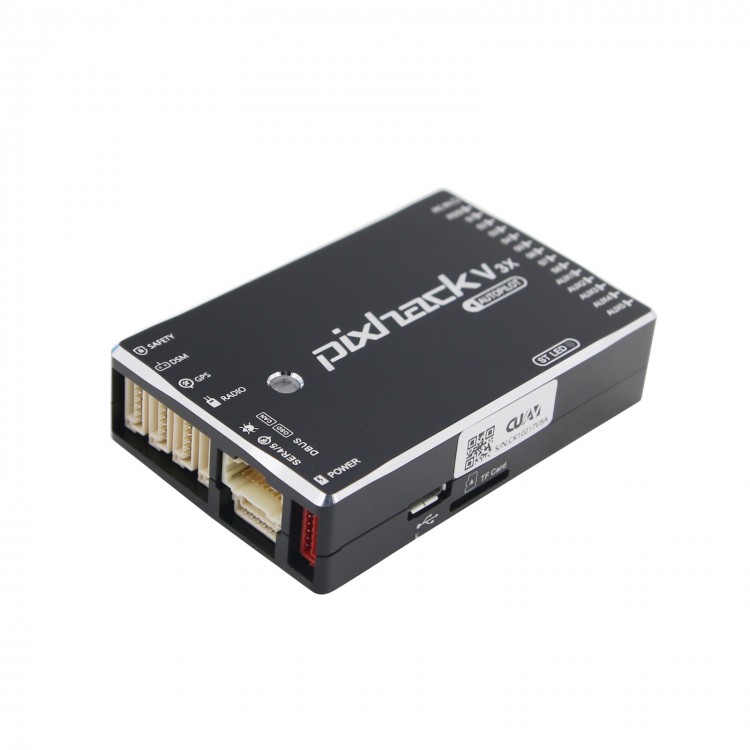

CUAV Pixhack V3X Flight Controller PIX Open Source + M8N GPS for FPV Drone Quadcopter Helicopter

Tags: Pixhack V3 Flight Controller

Availability: Out Of Stock

  • Price:$194.33
  • Price in reward points: 1943 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $190.44 $186.56 $180.73 $172.95 Contact US
Quantity:

CUAV Pixhack V3X Flight Controller PIX Open Source + M8N GPS for FPV Drone Quadcopter Helicopter

Ground station : Click here
Flight controller drive:  Click here
Pixhack information:  Click here
APM/PIX information:  Click here

Notice: The booking period is about 10 days.

Flight Controller Specifications:
- Processor: 2
- Main processor: STM32F427 V3
- Coprocessor: STM32F1
- Support remote control signal: PPM/SBUS/DSM
- Power supply redundancy: Support 3 channels redundancy
- 6* 3 groups of IMU
- Support fixed wing/multirotor 3-8 axis/helicopter/car/boat
- Support PX4/APM software

Sensors:
- L3GD20 3-axis Accelerometer
- LS303D Accelerometer+Magnetic meter
- Ms5611 Barometer
- MPU600 gyroscope+ Accelerometer
- MPU9250 Accelerometer+gyroscope+Magnetic meter
- Ms5611 Barometer

Flight Controller Parameter:
- Weight: 70g
- Shell material: CNC aluminum alloy
- Size: 68*44*15
- Working temperature: -10~55 degree C
- PWM output IO: 13
- Mavlink seriel port: 2
- Support GPS:2
- Debug interface: 1
- I2C interface*2
- CAN interface*1
- Support smart battery
- HackLink : Support
- Built in shock proof

GPS:

M8N GPS:
- Integrated LNA amplifier chip+SAW filter chip
- LNA+SAW supports GPS,GLONASS,Galileo,BeiDou
- Integrated HMC5983 compass

Package list:
- 1 x Pixhack V3X Flight Controller
- 1 x 8CH PPM encoder
- 1 x Voltage and current sersor (unwelded)
- 1 x 8G TF card
- 1 x Buzzer+expansion board
- 1 x Cable
- 1 x USB cable
- 1 x Shock proof plate
- 1 x M8N GPS
