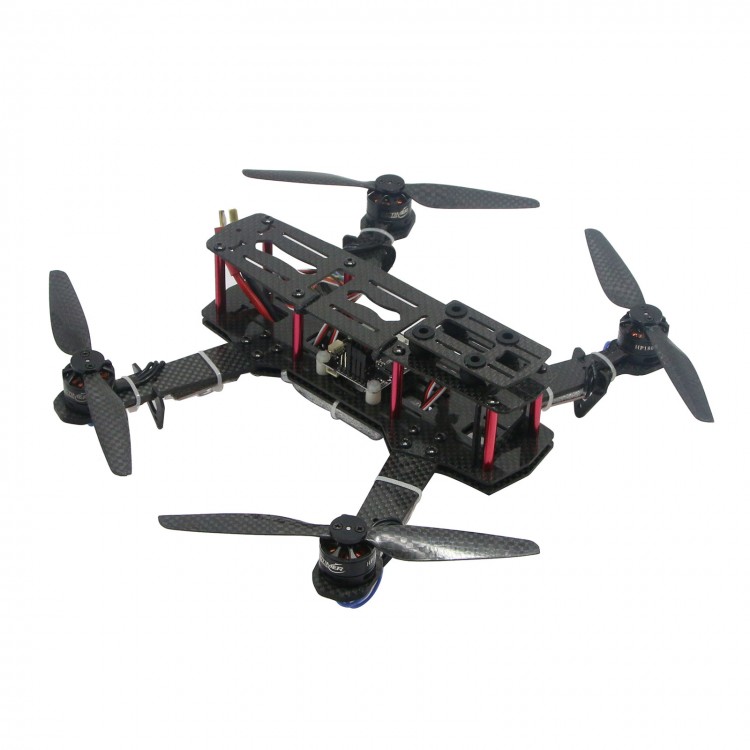

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & SunnySky 2204 Motor & Hobbywing 10A ESC

Availability: In stock, usually dispatched in 1 business day

  • Price:$129.80
  • Price in reward points: 1298 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $127.20 $124.61 $120.71 $115.52 Contact US
Quantity:

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & SunnySky 2204 Motor & Hobbywing 10A ESC



















Location Test Flight:













Description:
- Frame Weight: Version 1: 90 grams, Version 2: 123 grams w/ Anti-Vibration Mount
- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Black Nylon 6/6
- Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
- Maximum Propeller: 5"
- Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
- Flight Controller Mount: 30.5mm x 30.5mm
- Board Camera Mount: 32mm x 32mm
- 1.5mm carbon fiber fuselage
- Machine arm 3.0mm
- Aluminum Jin Zhuzai
- AV shockproof ball
- FPV installed by edition
- Screw
- Carton packaging 177g (Only Frame Kit)


SunnySky MT2204 Motor:
- This listing is for CW /Clockwise direction,if you need CCW/Counter Clockwise motor,pls serach in our store
- KV: 2300
- Battery: 2S Li-poly
- Weight: 22.8g
- Height: 34.6mm
- Diameter: 27.5mm
- Prop hole: 5mm

X2204S  kv2300
3S 11.1V GWS 5043
Thrust Current RPM/Min
100g 1.3A 8500
150g 2.5A 11135
200g 3.9A 13200
250g 5.7A 15300
300g 7.0A 16600
350g 9.0A 18230
370g 9.7A 18625

Hobbywing XRotor-10A-opto ESC:
- Multirotor professional programme, very quick throttle response speed, surpass all kinds of open source software
- Specially designed for disc motor optimized firmware, has excellent compatibility
- Highly intelligence, well adaptive ability, easy operation
- Throttle signal cable is twisted pair, can effectly reduce the serial interference transmitted through  cooper wire, making the flying more stable
- Max support 621Hz throttle signal, compatible with all kinds of flight control
- Adopting MOSFET professional driving chip, performance and stability will surpass driver circuit made by seperated components
- Super low internal resistor MOSFET, strong current resistance
- Transient current: 15A
- Continuous current: 10A
- BEC: NO
- Battery pack: 2-3S
- Weight: 6.5g
- Dimension: 36.5*16.4*4.1
- Application: wheelbase 250mm multirotor

Recommended installation:(Not include)
- Battery: 4S 1300mah 45C/90C Nanotech, 4S 1400mah 40C/80C Nanotech, 4S 1500mah 35C/70C Nanotech
- Walkera Devo 7 or Walkera Devo 10 or Futaba Remote Control
- Receiver: FrSky D4R-II receiver
- CCD Camera: SONY Super HAD CCD 600TVL Board Camera w/ 2.8mm lens - Settings to use on camera
- HD Camera:  Action Camera
- Video Transmitter: ImmersionRC 600mw Video Transmitter
- Antenna: ImmersionRC SpiroNet V2 (SMA)

Package List:
- 250mm Carbon Fiber 4 Axis Mini Quadcopter  X  1pcs
- Openpilot CC3D Flight Control  X  1pcs (SKU:30743)
- Sunnysky X2204S KV2300 CW Brushless Motor CCW   X  2pcs
- Sunnysky X2204S KV2300 CW Brushless Motor CW   X  2pcs
- Hobbywing XRotor-10A-opto Series Multiroter ESC  X 4pcs (SKU:31350)
- 6*3 6030 Carbon Fiber Propeller  X 2 pairs(2pcs CW + 2 PCS CCW)
- BEC ESC Power Distribution Board
