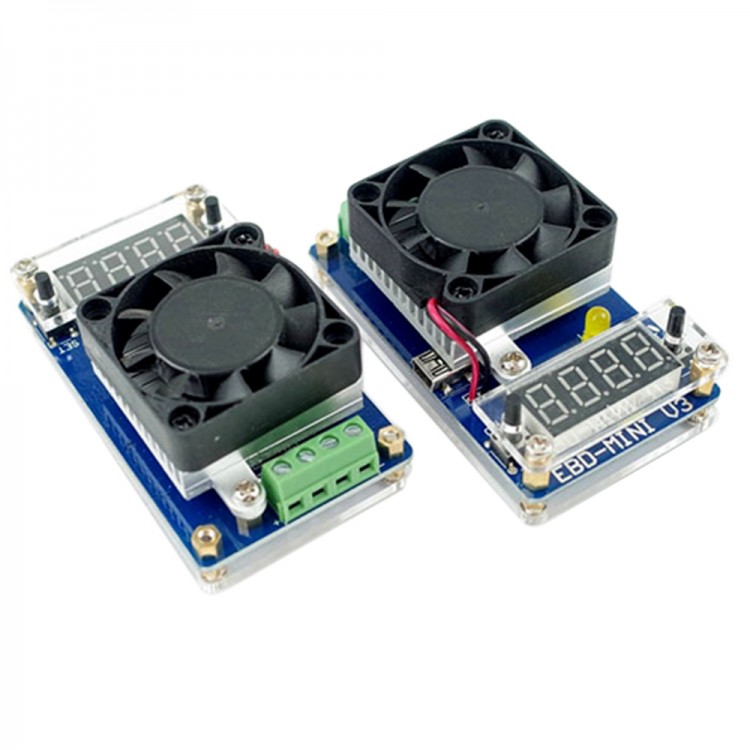

EBD-M03 Mini Electronic Load Battery Capacity Tester Mobile Power Charging Head Measurement w/Cable
Description:
EBD-M03 is a portable electronic load, suitable for all kinds of battery capacity testing, mobile power testing and power testing, support for connecting to the computer, through online software with more extended functions.
Specification:
- Power supply: MiniUSB port power supply (5V)
- Voltage range: 0.10-20.00V, termination voltage can be set, not limited battery type
- Current range: 0.05-3.00A (discharge power 20W, more than automatic limiting current), current can be set
- Cnnection mode: Four line detection, voltage measurement and current channel separate wiring, ensure measurement accuracy
- Test mode: constant current discharge, when the voltage is lower than the set of termination voltage automatically stop
- Digital tube display: voltage, current, capacity, and other test data (through the key switch)
- Computer control software: USB TTL (MiniUSB) connection, with a variety of extended functions:Computer control, drawing curve, calibration and measurement datum, upgrading equipment firmware, power supply current test, etc.
Package included:
- 1 x EBD-M03 Tester
- 1 x On line cable
