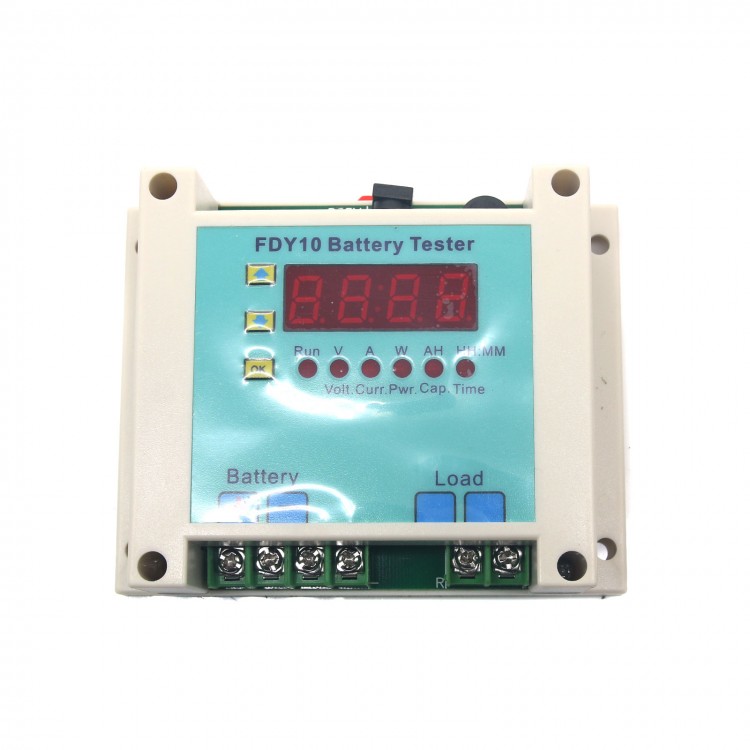

FDY10-S Battery Capacity Tester 10A Discharge Meter 1-20V Battery Capacity Indicator
Description:
- FDY10-S Battery tester structural is reasonable,easy to carry,may detect battery capacity,can also measure battery discharge time and discharge AH.
- Comprehensive detection and measure two function new type measure equipment.
- Can adaptive from 1V to 20V voltage range different varieties different types,Measure battery varieties:Ni-Cd, Li-Ion, Pb, Ni-Mh, Ag-Zn, LMP, Li-po, Pb
- Measure current range from 0.1A to 10A auto constant current
set stop discharge voltage range from 0V to 20V,when discharging LED can real time display battery voltage ,Current,Power, AH and total time.
- When stop discharge LED display AH and discharge time.
Features:
- The product structure is smallest,easy to carry.
- The host and heating device separation design,continuous work long times host is safety.
- Measure way use 4-Wire measure,remove wiring resistance has voltage.
- Display use 6LED lights and 4 Digital display,6LED lights mean current LED display details,4 Digital display resolution 0.01V,0.01
Parameters:
- Discharge termination voltage: 1V-20V
- Discharging current: the voltage <10V: 0.1A-10A; voltage>10V: 0.4A-10A
- Voltage measuring range: 0-20V
- Accuracy: 0.01V
- Tolerance: -+0.5%
- Current measuring range: 0A-10A
- Accuracy: 0.01A
- Tolerance: -+1%
- Battery power acccuracy: 0.1W
- Battery capacity acccuracy:0.01AH (within 100AH); 0.1AH(over 100AH)
- Maximum value of Battery capacity: 999.9AH
- Size: 116x90x40mm (LxWxH)
- Aluminum power resistor: 165x60x30mm
- Weight of host: 190g
- Weight of power resistor:450g
Package included:
- 1 x FDY10-S basic discharge device (host)
- 1 x 1Ω, 200W power ladder aluminum resistance
- 1 x DC5V power adapter
