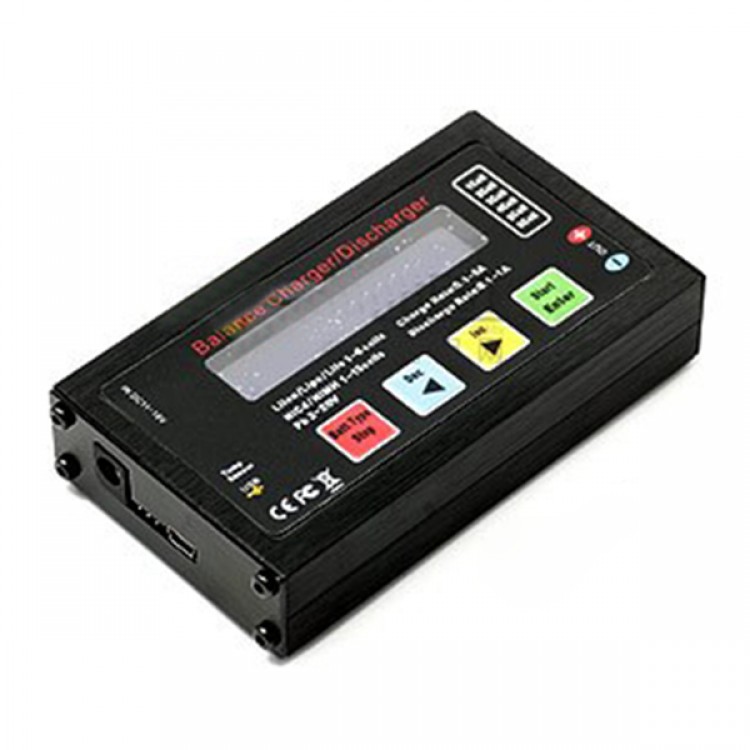

Full Function Version Mini Battery Charger 50W B6s+ Li-Po NiMH Battery Balance Charger

This Item is a rapid charger with a high performance microprocessor and specialized operating software. Muti-Function charger balancer and discharger. High-Power and high performance circuit. Monitoring the voltage of individual cell.
Features:
- Optimized operating software
- B6s+ features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Internal independent lithium battery balancer
- B6s+ employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

Balancing individual cells battery discharging
- During the process of discharging, B6AC can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to various type of lithium battery
- B6s+ is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery
- Purposes to charge Lithium battery varies, ?fast' charge reduce the duration of charging, whereas ?store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Maximum safety
- Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Automatic charging current limit
- You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity limit
- The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold*
- The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.

Processing time limit:
- You can also limit the maximum process time to avoid any possible defect.

Input power monitoring
- To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically.

Data store/load
- The maximum five batteries'data can be stored for users'convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Cyclic charging/discharging
- 1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and Balancing to stimulate the battery's activity.

Specifications:
- Operating voltage range: DC 11.0-18.0V; AC to DC adaptor (DC 11.0-18.0V/5A)
- Circuit power: Max. charge power 50W; Max. discharge power 5W
- Charge current range: 0.1-5.0A
- Discharge current range: 0.1-1.0A
- Current drain for balancing Li-po: 300mAh/cell
- NiCd/ NiMH battery cell count: 1-15cell
- Ii-ion/ Polymer cell count: 1-6 series
- Pb battery voltage: 2V-20V
- Product weight: 182g
- Product size: 113x65x23mm
- Package weight: 278g
- Package size: 128x115x31mm


Package Contents List:
- 1 x B6s+ Balance Charger
- 1 x Balance Socket
- 6 x Multifunctional Cables (as shown in the pictures)
- 1 x User Manual
