Tags: A1000 Gimbal
|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$388.83||$380.90||$369.00||$353.13||Contact US|

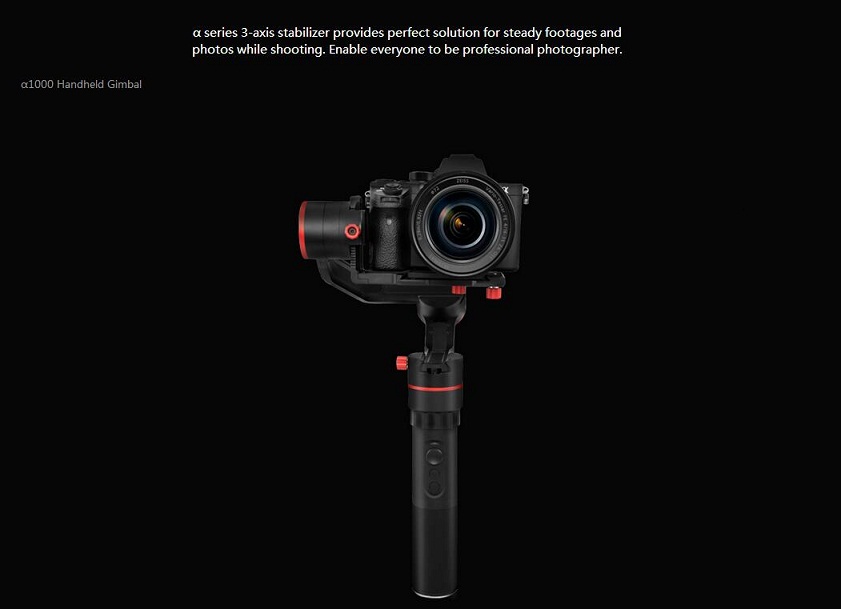

- Product Model:Alpha series Mirrorless Camera Gimbal
- α1000 3 Axis Gimbal for Mirrorless Camera EAN Code: 6970078070738
- Canon 5D Mark III (with standard lens), SONY A7RII / ILCE-7R / ILCE-5100, Panasonic LUMIX GH4/GH5, SONY NEX-5N/NEX-7 and other cameras of N-series,and other cameras with similar dimensions.
- Payload:250--2000g (Including the accessories of batteries, lens and ect.)
- SONY A7s(16~35mm lens),SONY 5100 , SONY RX100 Series (DSC-RX100M5 , DSC-RX100M4 , DSC-RX100M3) , α6000 , Gopro HERO5/4, Yi 4K Action Camera , - Panasonic LUMIX GH4 Camera and other similar size cameras of the total weight less than 1000g (including lens and other accessories)
- Note: Since action cameras (such as Gopro HERO5/4 )don’t have 1/4 inch thread hole, please mount it together with Gopro adapter.
- Payload:150g--1000g (Including the accessories of batteries, lens and ect.)
α1000 compatible the following smartphones:
iPhone 6 , iPhone 6s , iPhone 7 , iPhone 6 Plus , iPhone 6s Plus , iPhone 7 Plus.Android Smartphone 4.7 inch~5.7 inch (working together with Smartphone mounting plate,which has 1/4 inch thread hole to be mounted)
Tilting Angle:360° (Unlimited)
Rolling Angle:360° (Unlimited)
Panning Angle:360° (Unlimited)
Tilting Increments:2°/s ~ 75°/s
Panning Increments:3°/s ~ 150°/s
Battery:Battery model:18650, 2200mAh, 3.7V. (one positive side upward and the other negative side upward)
Battery could be charged from external power sources by Micro USB port (It is fully charged when the LED changes from solid red to solid blue), or charged by smart charger (LED in solid red indicates the battery is charging, LED in solid blue indicates battery is fully charged).
Installation:Camera could be placed on the left or right side by moving tilt axis to the left or right. When moving the lens forward, we suggest placing the camera on the left side so that you can use interfaces for HDMI, shutter control, headphone, microphone and so on.
Charging time:≥5 hours, recommending using smart charger for charging the battery, 5V/1A input.
Balance Way:Moving quick plate back and forth to balance tilt axis in horizontal direction.
Sliding the arms of three axis to balance the center of gravity of camera, and then tighten the lock screws for three axis.

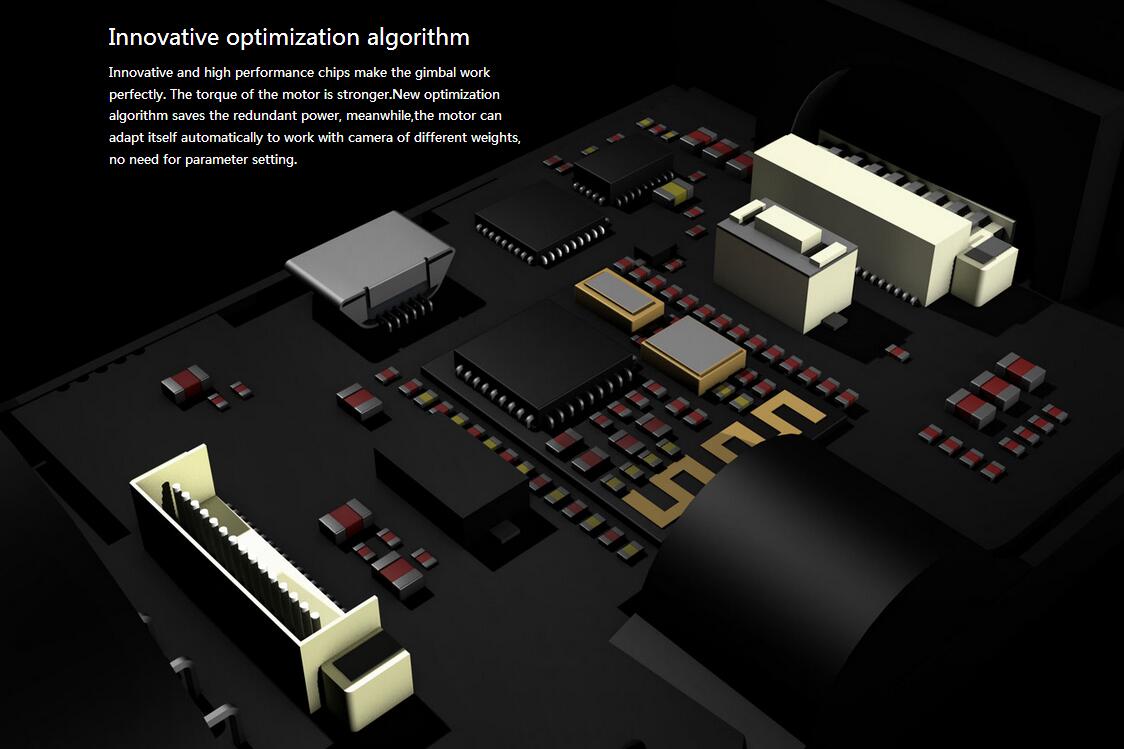

Adjusting Motor Strength:Automatic identification algorithm to detect weights of different cameras and produce right motor strength to match with them , so that the gimbal will automatically be in the best performance without adjusting the motor strength.
Extended Interface:There are three 1/4 inch screw holes for single handheld version of α2000 (one on the panning axis, one on the socket connector, and one on the bottom of the handle)
There are nine 1/4 inch thread holes could be found on α2000 with dual grip handle kit: four in the middle part of foldable arm, four on the two handles, the other one is on the socket connector.
- 857g (not inclusive of battery, camera, lens and so forth)
- Main functions for users:Initialize the gimbal
- Firmware upgrading by computer (only supports Window for now)
- Setting the start and the end of time-lapse by hand (auto-rotation mode)
- Tilt and panning axis could be locked in any angle by hand
- Controlling focus and take picture-control of camera (shutter release needs to be connected)
- Timed photography (shutter release needs to be connected)
- Connecting Feiyu ON App for firmware upgrade, setting parameters and virtual remote control
- Controlled by smart remote within 4m after making a connection with it

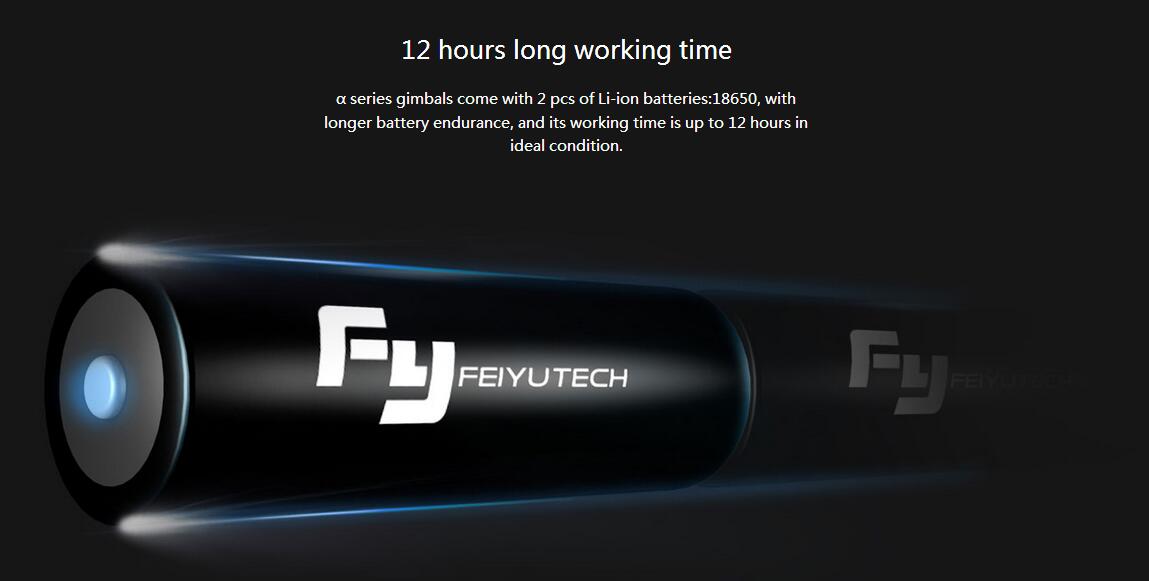

- Usage time:12 Hours
- All three axis could turn a full circle.
- 45 degree elevation design at rolling axis to insure the viewfinder screen will not be covered by rolling axis. Users can accurately compose the pictures without external monitor. (α1000)
- Payload range from 150gram to 1000gram to fit for many kinds of smartphones, action cameras,mirrorless cameras and lightweight DSLRs. (α1000)
- Automatic identification algorithm to detect weights of different cameras and Automatically match with them without adjusting the motor strength.
- EVA anti collision foam added to panning axis to prevent damage to camera.
Controllable roll axis as a new highlight.

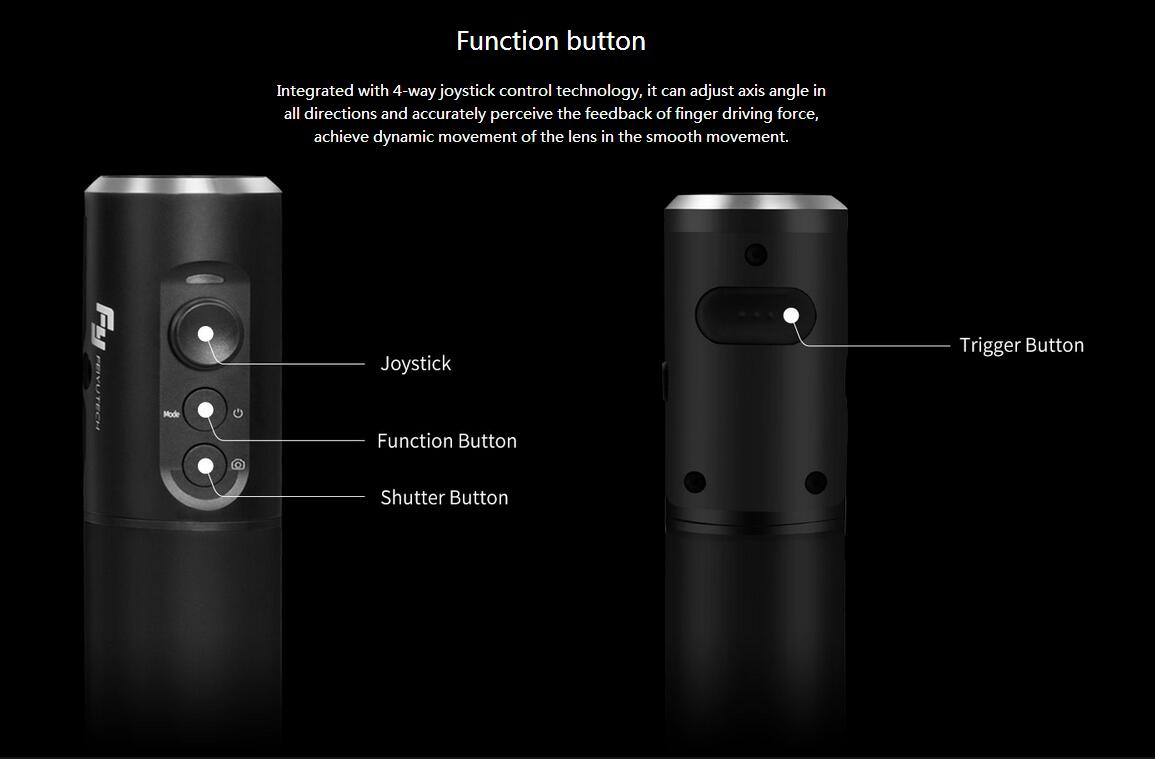

- Triggle button to quickly enter lock mode and reset the gimbal.
- Power on and off with a reminder of a beep, a sweet design for indoor or outdoor use.

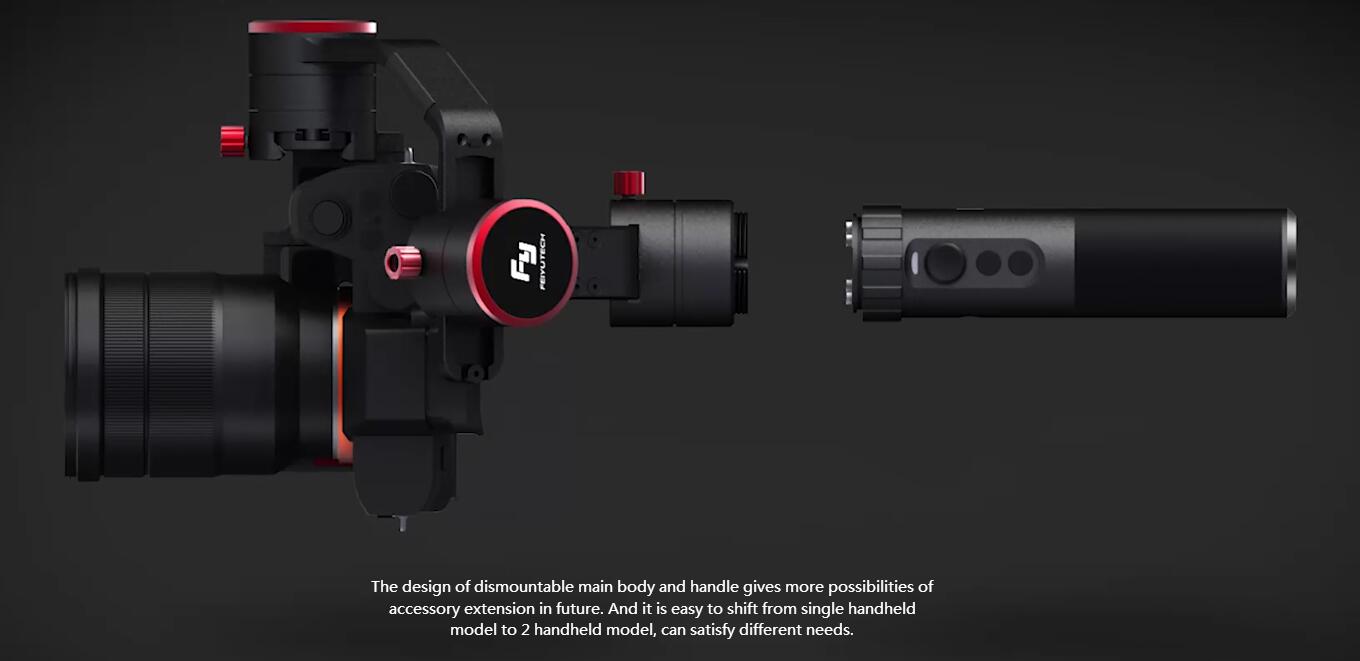

- Intelligent initialization to automatically check motionless desk and auto-complete with a reminder of a beep. Detachable handle to freely switch in installation ways.
- Double-hand set is foldable ,that make it easy to carry around.

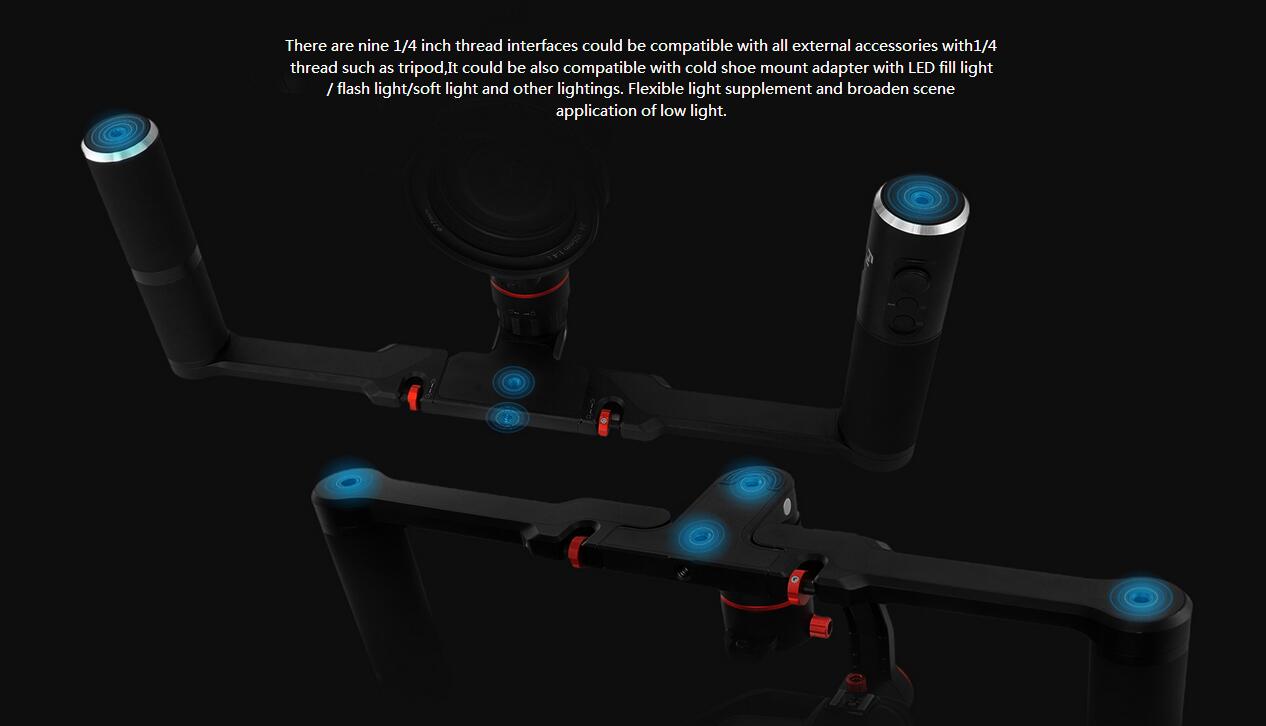

- Nine extended interfaces for a variety of compatible accessories.
- Anti-slip design added to handles for better grip.
- Intelligently follow pre-set route in auto-rotation mode, matching motion time-lapse or automatic shooting.
- Control focus and picture of camera by one shutter button.
- Get panoramic pictures pretty easily by configurable Timed photography function.
- Quick upgrade, set parameters, reset and virtual remote control with APP.
- Three main working modes fit for most scene.
- 1 x USB Cable
- 4 x 18650 battery
- 1 x Smart charger
- 1 x Sony shutter release
- 1 x FY general tripod
- 1 x Thumbscrew (α1000)
Accessories for dual grip handle kit:
- 1 x 1/4inch screw
- 1 x Cold shoe
- Smart remote
- Tripod with a 1/4 inch screw hold (make sure it can bear the weight of α2000 and the camera)
- Double-hand foldable set
(flashlight, microphone and other equipment could be added on α2000 by cold shoe which is mounted on double-hand foldable set ).
