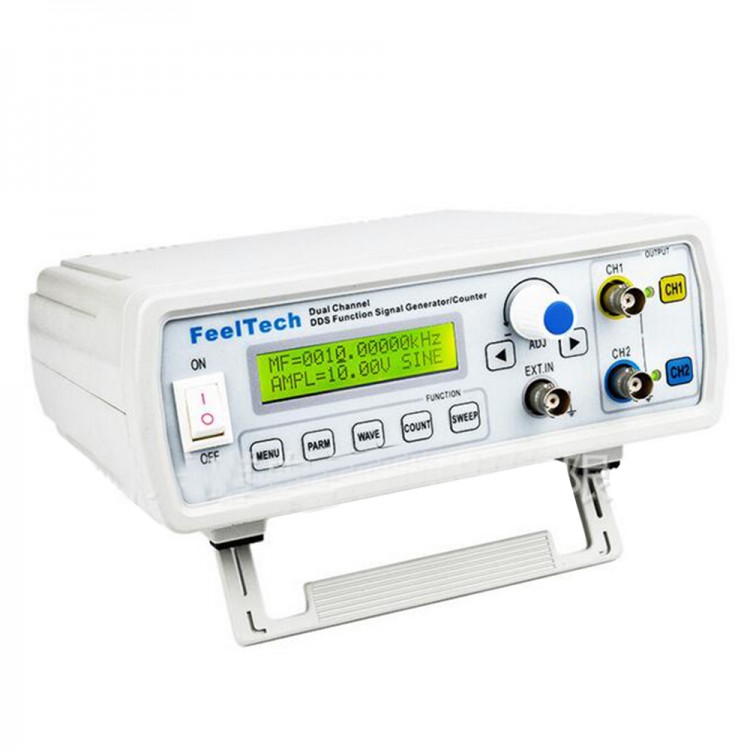

FY2208S 8MHz Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$66.04
  • Price in reward points: 660 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $64.72 $63.40 $61.42 $58.78 Contact US
Quantity:

FY2208S 8MHz Dual-Channel DDS Signal Generator Counter Arbitrary Waveform Frequency Meter

Features:
- Small volume and multi-function
- High precision frequency, frequency accuracy is up to 10-6
- Frequency resolution: 10mHz
- No range limit
- High precision waveform
- Multi waveform: Sine wave,square wave, triangle wave,rise sawtooth wave,fall sawtooth wave
- Frequency scan function
- Can store 10 groups of parameters
- Key operartion, LCD1602 English display
- High reliability
- With 60Mhz frequency meter function, test inner/outter signal

Specification:
- Model: FY2208S
- Sine wave: 0MHz-8MHz
- Square wave:0MHz-6MHz
- Triangle wave:0MHz-6MHz
- Other wave:0MHz-6MHz

Signal output parameter:
- Output channel: Dual channel output
- Output waveform:  Sine wave,square wave, triangle wave, step wave,pulse wave,rise Sawtooth, fall Sawtooth,DC voltage
- Output range: >=20Vp-p (No-load)
- Output impedance: 50Ohm-+10%
- DC offset: -+10V
- Frequency resolution: 0.01Hz(10mHz)
- Frequency accuracy: -+0.000005
- Frequency stability: -+0.000002/3 h
- Sine wave distortion: <=0.8%
- Triangle wave linear degree: >=98% (0.01Hz-10Khz)
- Square wave rise and fall : <=100ns
- Square wave duty cycle range: 1%-99%

TTL output:
- Range: >3Vp-p
- Fan-out: >20 TTL load
- Rise and fall of TTL: <=20ns

Frequency meter function:
- Range: 1-4294967295
- Testing frequency range: 1Hz-60Mhz
- Input range: 1Vp-p~20Vp-p

Scanning function:
- Scanning: Linear /Log scan
- Frequency setting range: Arbitrary setting of the starting and ending
- Frequency scanning range: M1 preset frequency-M2 Preset frequency
- Scanning speed: 1s-999s/stepping

Others:
- Display: LCD1602 English display
- Storage and call function: M0-M19
- Buzzer tip: Yes
- Power supply: AC85V  AC260V
- Operating temperature: 0-40 deg C
- Humidity:<80%
- Dimension: 200*190*90mm
- N.W: 550G

Package included:
- 1 x  DDS Signal Generator
