FY606 Data Link Data Transmission Radio Station
Description
- FY606 digital module, use ZIGBEE high power module for development
- Carrier frequency 2.4GHz
- Receiving sensitivity -100dBm
- TX power +19dBm
- TX current <120mA
- RX current <45mA
- Broad environment, the maximum communication distance can reach 4 km
- Power supply voltage: 4.2-6V DC
- Volume: 45MM×22MM×8MM
- Weight: 10g
- Interface features:
- Serial TTL level
- 19200 Baud rate: 19200
- Data bits 8, stop bits 1, no calibration
- Interface connection:
- Red:Input
- Black: GND
- Yellow: RX
- Green: TX
Include :

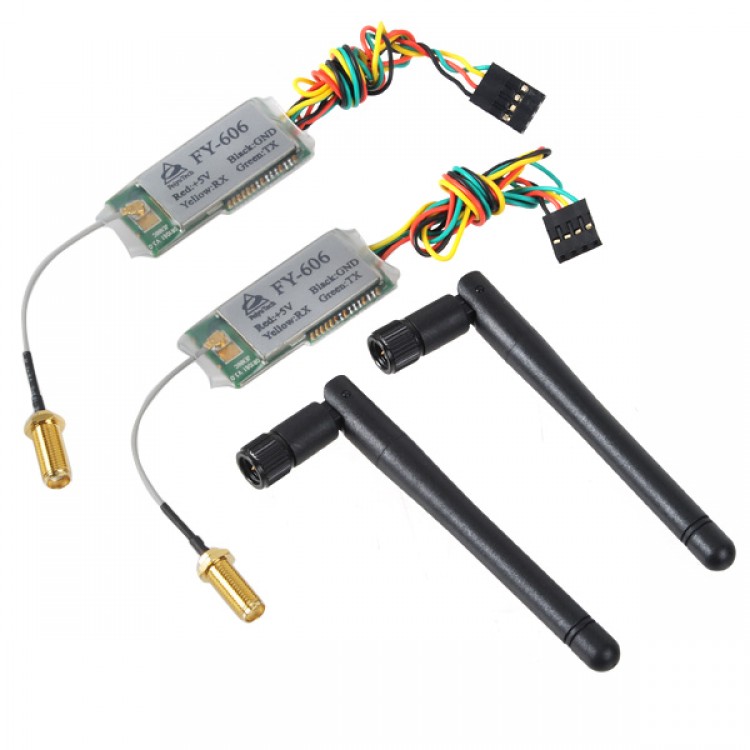

- FY606 Data Radio (Transmit power:100MW Frequency: 2.4GHZ) *2
- Related Wirings
