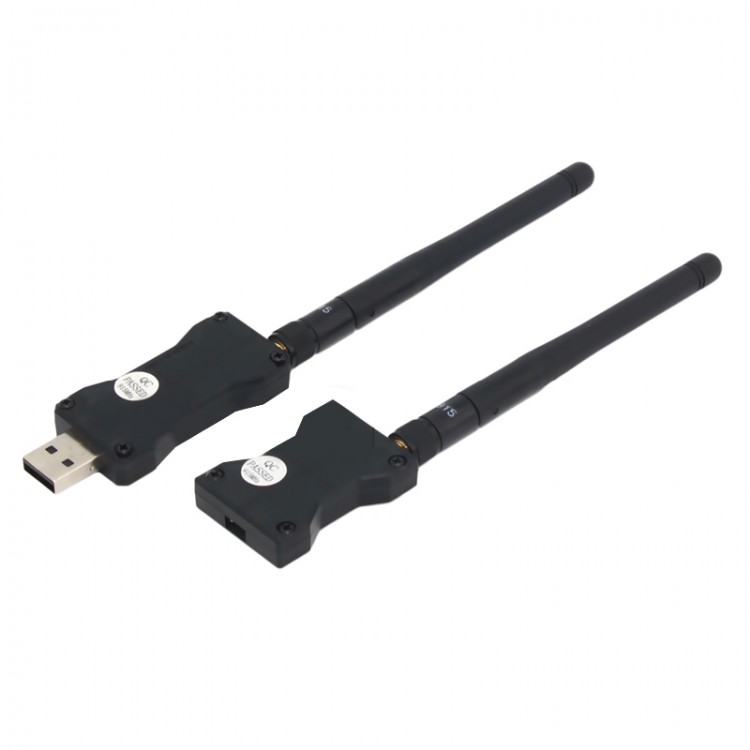

V2 433MHz 100MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini

Availability: Out Of Stock

  • Price:$59.54
  • Price in reward points: 595 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.35 $57.16 $55.37 $52.99 Contact US
Quantity:

V2 433MHz 100MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini

Features:

- Very small size
- 433MHz or 915MHz (optional)
- Receiving sensitivity is -121DBM
- Transmitting power 20DBM (100MW)
- Transparent serial link
- Over-the-air data transfer rate up to 250KBPS
- MAVLINK protocol frames and status reports
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- LBT and AFA support
- Configurable duty cycle
- Built-in error correction code (can correct up to 25% of data bit errors)
- Coverage of up to several kilometers using small omnidirectional antennas
- Greater range available with bidirectional amplifier
- Open source firmware
- AT command configuration data transmission
- RT command remote configuration data transmission
- Adaptive flow control when used with APM
- Based on HM-TRP wireless module with SI1000 8051 microcontroller and SI4432 wireless module
- Support for APM2.8, Pixhawk, PIX4, PIX4mini, PIX2, CUAV V5, etc.
- Supported ground station software: for MissionPlanner, DroidPlanner, AndroPilot, PlayUAV, etc.
- High quality: The product has passed tests before shipment to ensure the safety and stability of the flight
- Omnidirectional antennas with high gain: Using 2DBI (100Mw) antennas, featuring stronger signal and anti-interference capability

Specifications:
Performance Parameters:
- Model: V2
- Communication distance (outdoor and unobstructed): 100MW (800m/2624.7ft)
- Communication frequency: 433MHz or 915MHz (optional)
- Maximum transmitting power: 100mW
- Baud rate: 57600 (default)

Physical Parameters:
- Working temperature: -10℃ to 60℃
- Working humidity: 10%RH~90%RH (non-condensing)
- Dimensions (without the size of antenna): 49 x 25 x 13mm/1.9 x 1 x 0.5" (LxWxH)
- Net weight: 45g/0.1lb

Power Requirements:
- Working voltage: DC 3.7V~6V
- Current when transmitting: 100mA at 30dBm
- Current when receiving: 25mA

Package Included:
- 1 x V2 Ground Side (100MW)
- 1 x V2 Sky Side (100MW)
- 2 x Foldable Omnidirectional Antennas
- 1 x 4PIN-5PIN Cable
- 1 x 4PIN-6PIN Cable
- 2 x Adhesive Tapes
