• V2 433MHz 500MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini
  • V2 433MHz 500MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini

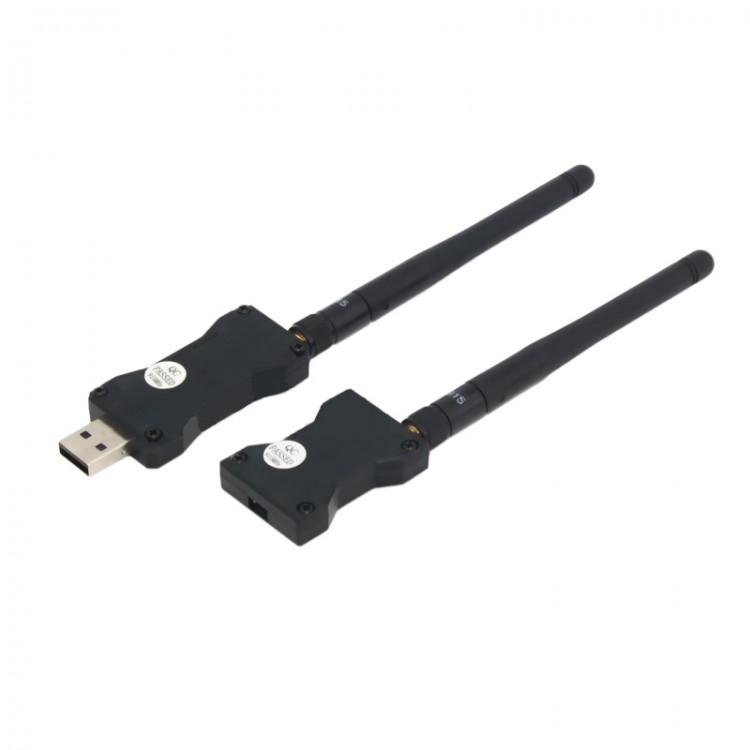

V2 433MHz 500MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini

Availability: Out Of Stock

  • Price:$59.54
  • Price in reward points: 595 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.35 $57.16 $55.37 $52.99 Contact US
Quantity:
V2 433MHz 500MW 3DR Radio Telemetry Kit Drone RC Plane Telemetry for APM2.8 Pixhawk PIX4 PIX4mini

Features:

- Very small size
- 433MHz or 915MHz (optional)
- Transmitting power 500MW
- Receiving sensitivity -121DBM
- Transparent serial link
- Over-the-air data transfer rate up to 250KBPS
- MAVLINK protocol frames and status reports
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- LBT and AFA support
- Configurable duty cycle
- Built-in error correction code (can correct up to 25% of data bit errors)
- Coverage of up to several kilometers using small omnidirectional antennas
- Greater range available with bidirectional amplifier
- Open source firmware
- AT command configuration data transmission
- RT command remote configuration data transmission
- Adaptive flow control when used with APM
- Based on HM-TRP wireless module with SI1000 8051 microcontroller and SI4432 wireless module
- Support for APM2.8, Pixhawk, PIX4, PIX4mini, PIX2, CUAV V5, etc.
- Supported ground station software: for MissionPlanner, DroidPlanner, AndroPilot, PlayUAV, etc.
- Omnidirectional antennas with high gain: Using 5DBI (500Mw) antennas, featuring stronger signal and anti-interference capability
- High quality: The product has passed tests before shipment to ensure the safety and stability of the flight

Specifications:
Performance Parameters:
- Model: V2
- Communication distance (outdoor and unobstructed): 500MW (2000m/6561.7ft)
- Communication frequency: 433MHz or 915MHz (optional)
- Maximum transmitting power: 500MW
- Baud rate: 57600 (default)

Physical Parameters:
- Working temperature: -10℃ to 60℃
- Working humidity: 10%RH~90%RH (non-condensing)
- Dimensions (without the size of antenna): 49 x 25 x 13mm/1.9 x 1 x 0.5" (LxWxH)
- Net weight: 45g/0.1lb

Power Requirements:
- Working voltage: DC 3.7V~6V
- Current when transmitting: 100mA at 30dBm
- Current when receiving: 25mA

Package Included:
- 1 x V2 Ground Side (500MW)
- 1 x V2 Sky Side (500MW)
- 2 x Foldable Omnidirectional Antennas
- 1 x 4PIN-5PIN Cable
- 1 x 4PIN-6PIN Cable
- 2 x Adhesive Tapes
