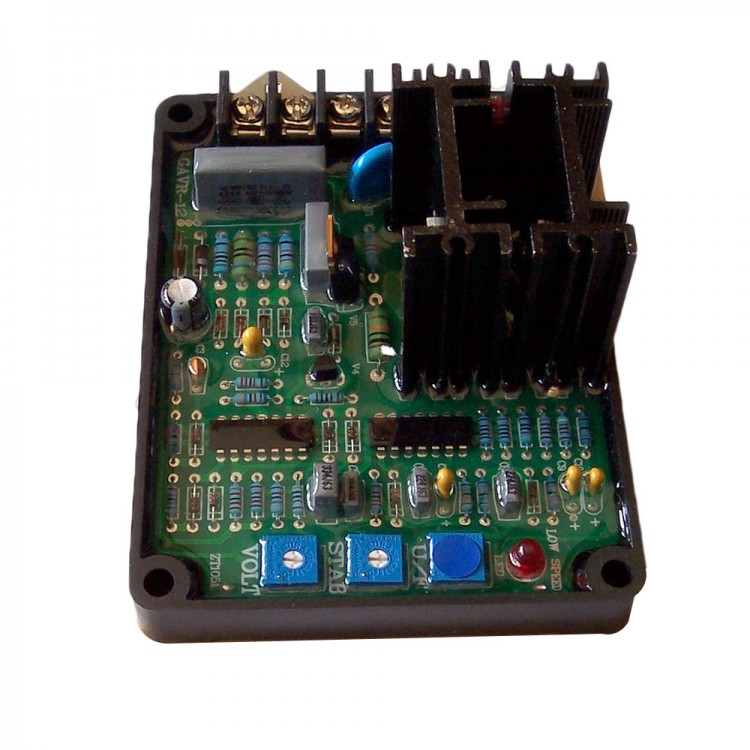

GAVR-12A Brushless Generator AVR 12A Voltage Stabilizer Automatic Voltage Regulator Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.25
  • Price in reward points: 263 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.73 $25.20 $24.41 $23.36 Contact US
Quantity:

GAVR-12A Brushless Generator AVR 12A Voltage Stabilizer Automatic Voltage Regulator Module

Specifications:

- Voltage adjustment rate: <=1%
- Rugged compact design
- With under frequency protection
- Soft start voltage ramping
- EMI suppression
- Built-in high capacity 12 Amp fuse

Specifications:
- SensingInput Voltage:   220/400VAC,1phase 2wire
- Power Input  Voltage:  180~240VAC, 1phase 2wire
- Output Voltage: Max. 90VDC@240VAC input
- Current: Continuous 6A , Intermittent 10A for 10SEE
- Voltage Build-up: esidualvolts at AVR teminal>5VAC
- External Volts Adjustment: +/-7%with 1Kω 1watt trimmer
- Unit Power Dissipation:  Max. 8Watt
- Under Frequency Protection: 60Hz system presets knee point at 57Hz

Package list:
- 1 x Automatic Voltage Regulator
