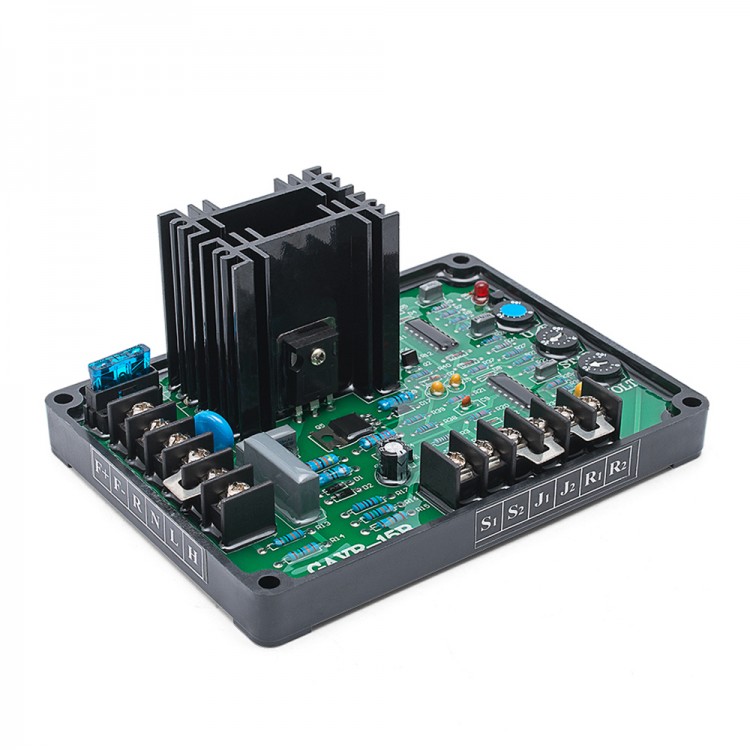

Maxgeek GAVR-15A Brushless Generator Automatic Voltage Regulator AVR Excitation Regulator Board
Specification:
Voltage: 220/400VAC, 1 phase 2 wire
Output voltage: max 90V DC@240V AC input
Current: continuous 6A, intermittent 12A for 10secs
Resistance: Min.10Ω, Max.100Ω
Voltage build-up: residual voltage at AVR terminal >5VAC
Voltage regulation: <0.5% with 4% engine governing
Operating temperature: -40℃ to +65℃
Storage temperature: -40℃ to +85℃
External volts adjustment: +/-7% with 1KΩ 1W trimmer
EMI suppression: internal electromagnetic interference filtering
Unit power dissipation: Max.8W
Under frequency protection: 60Hz system presets knee point at 57Hz; 57Hz system presets knee point at 47Hz
Size: 157*117*70mm (L*W*H)
Package List:
1 x Generator Voltage Regulator
