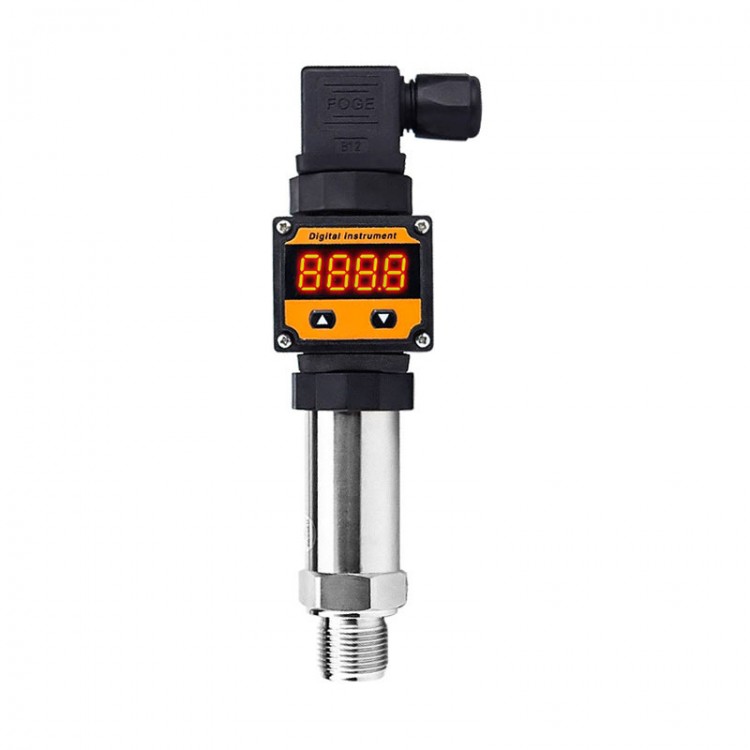

4-20mA Diffused Silicon Pressure Sensor (with Digital Display) for Water Liquid Gas and Oil Pressure

4-20mA Diffused Silicon Pressure Sensor (with Digital Display) for Water Liquid Gas and Oil Pressure

Features:
Diffused Silicon Pressure Sensor
* Imported chip
* High measurement accuracy
* 304 stainless steel

Pressure Port
* After hundreds of repeated tests, a 3 mm diameter pressure port was selected to effectively reduce the impact of instantaneous pressure on the internal diaphragm. For pressure ranges above 10MPa, a damping and buffer gasket is included to provide enhanced shock resistance.

Imported Diffused Silicon Core
* Durable and stable, reliable performance
* 10ms fast response
* Up to 150% instantaneous pressure resistance
* Compensation Temperature: -10~70°C
* Zero Drift: 0.2%FS
* Equipped with three intelligent protections (over-pressure, over-current and reverse connection)

Laser Marking
* Each pressure transmitter has a unique identification number. From production to usage, parameters can be quickly checked.

Threaded Interface
* Made of 304 stainless steel

Specifications:
* Product Name: Compact Pressure Transmitter
* Measurement Range: -100 kPa~0~100MPa (Selectable within range)
* Output Signal: 4–20mA (default)
* Installation Thread: M20×1.5 (default)
* Power Supply: 12–24V (default)
* Compensation Temperature: -10~70°C
* Measurement Accuracy: 0.5%FS (default)
* Operating Temperature: -20~70°C
* Housing Protection: IP65
* Media Compatibility: Various fluid media compatible with 316 stainless steel
* Measured Media: Gas, liquid, water, oil
* Overpressure: 150%FS
* Long-term Stability: ±0.2%FS/year

Packing List:
* 1 × Pressure Sensor

Packaging Details:
* Weight: 0.36kg
