Description:
DCT1158C is a widely used, economical, clip type, time difference ultrasonic flow meter. It is easy to install, no need to break your pipe or stop water supply. Customers can easily achieve flexible pipe flow measurement. The product can also be equipped with a permanent installation fixture, which does not require daily maintenance and provides reliable, drift-free measurement for a long time. It uses the most advanced digital correlation technology and intelligent adaptive sound wave technology to make its measurement stability more outstanding. At the same time, it uses the patented acoustic focusing technology, which significantly improves the signal reception and quality of the product during continuous measurement.

Features:
- Positive, negative flow measurement and cumulative flow measurement
- 50,000 hours of trouble-free test
- Traffic statistics by period
- The life span of buttons is greater than 200,000 times
- Imported chip enables stable and excellent performance
- Waterproof connectors and elegant design without screws on its surface
- The transmitter perfectly match with the sensor
- With FPGA technology, its speed rate is dramatically improved
- With ARM32bit platform, it consumes less power

Specifications:
- Measuring Range: 200m3/h
- Precision Grade: 1.0
- DN: 25-1200mm
- Applicable Medium: Water or homogeneous liquid
- Operating Pressure: 1.6MPa
- Working Temperature: -40 to 80℃

Product Parameters & Options:
Model Selection Format: DCT1158C-A-B-C-D-E
DCT1158C:
- Item Name: Economical Ultrasonic Flow Meter
- Installation Method: Wall Mounted
- Flow Range: 0-12m/s
- Accuracy: ±1% of Measured Value
- Repeatability: 0.2%
- Keyboard: 16 (4X4) Buttons
- Display: 20X2 Dot Matrix Characters Backlight LCD Display
- Power Supply: 10-36VDC/@1A Max.
- Shell Material: PC/ABS Plastic
- Protection Level: IP65
- Ambient Temperature: -10℃ to 50℃
- Output: Frequency Output @0-5KHz. OCT Way: 4-20mA Output
- Communications: RS-485 Communication interface, supporting for Modbus protocol

A: I/O Option
- 1: OCT frequency output, 4-20mA output & RS-485 communications interface
- E: GPRS function

B: Transmitter Shell
- 1: Shell: IP65, PC/ABS Plastic
- 2: Explosion-Proof Shell: Ex d II B T4
- 3: Explosion-Proof Shell: Ex d II C T4
- 4: Explosion-Proof Shell: Ex d II B T6
- 5: Explosion-Proof Shell: Ex d II C T6

C: Sensor
- CP:
 Type: Normal Temperature Clamp-on Sensor
 Installation Way:Clamp-on
 Compatible Pipe Diameter: 25mm-1200mm
 Sensor Cable Length: 9m
 Material: PC
 Operating Temperature: 0℃ to 50℃
 Environmentally Friendly: The probe material meets RoHS environmental requirements
- CH:
 Type: High Temperature Clamp-on Sensor
 Installation Way:Clamp-on
 Compatible Pipe Diameter: 25mm-1200mm
 Sensor Cable Length: 9m
 Material: Stainless Steel
 Operating Temperature: -40℃ to 150℃
- MC:
 Type: Permanent Clamp-on Sensor
 Installation Method: Permanent Clamp-on
 Compatible Pipe Diameter: 65mm-1200mm
 Sensor Cable Length: 9m
 Probe Shell: Zinc Alloy, PEI. Base: Carbon Steel
 Measuring Medium Temperature: 0℃ to 50℃

D: Cable Length
- 009: Standard Cable Length: 9m
- XXX: Sensor Cable Length: It can be prolonged by every 5m and up to 305m

E: Power Supply Converter
- 1: Not Needed
- 2: Needed (Input 220V, output 12V & load current 1A)

Package Included:
- 1 x Transmitter
- 1 x Sensor
- 1 x Set of Pipe Clamp
- 1 x Set of Fixing Screws

Note: Please tell us the type you want when purchasing. Thank you!

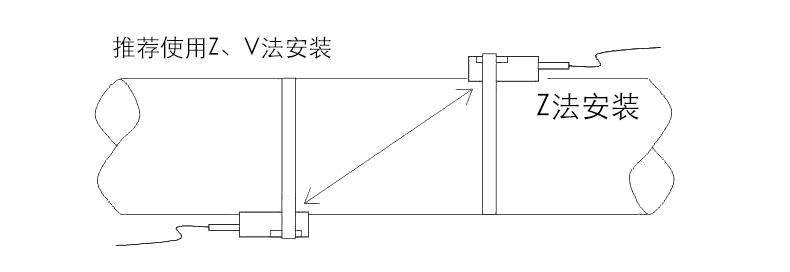

Z-/ V-shaped Installation Method
