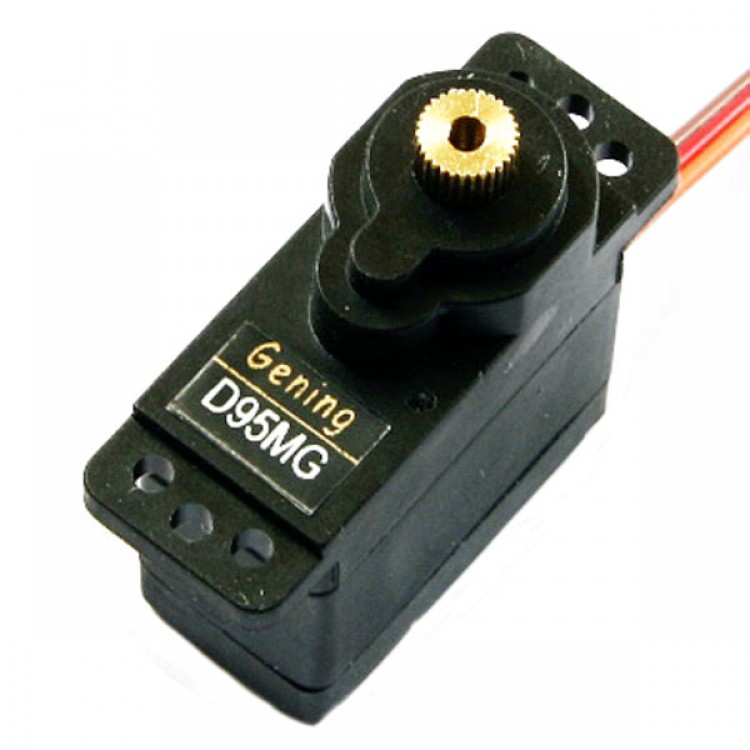

• GENING 14g/ 2.2kg/ .09 sec High Speed Metal Gear Digital Servo D95MG

GENING 14g/ 2.2kg/ .09 sec High Speed Metal Gear Digital Servo D95MG

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.11
  • Price in reward points: 131 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.85 $12.59 $12.19 $11.67 Contact US

GENING 14g/ 2.2kg/ .09 sec High Speed Metal Gear Digital Servo D95MG
- The D95MG is a high speed and accurate digital servo for 3D airplanes and helicopters, and glider applications. The D95MG Digital Servo provides extremely accurate neutral position. These servos are tailored for 3D fixed wing planes and micro electric helicopters. These digital servos can also find their position in the field of industrial automation which needs accurate and high speed control.
High fidelity MCU and excellent algorithm make it work smoothly and keep high frequency noise minimized.
The D95MG Digital Servo adopts Frequency Conversion Technology which guarantees cool running temps under wild and long time 3D flight! This advanced technology also provides lower power consumption and guarantees the durability of D95MG Digital Servos. The servo has excellent performance as tail servo and can bring you lots of fun in 3D flying.

- High speed and sensitivity
- Accurate, centers well
- Full AVCS Gyro DS mode compliant
- Strong, Stable
- Metallic Gears
- Fall safe feature (Lost Signal Protection) --- The Digital Servo holds its position and torque during occasional signal lost.
- Light weight but perdurable structure will not affect the 3D maneuverability of your plane.
- Full AVCS Gyro DS mode compliant
- Operating Voltage: 4.8-6.0 Volts
- Operating Speed (4.8V): 0.10sec/60°
- Operating Speed (6.0V): 0.09sec/60°
- Stall Torque (4.8V): 2.0kg.cm
- Stall Torque (6.0V): 2.2kg.cm
- Dead Band Width: ≤3usec
- Dimensions: 23.6 x 11.8 x 22mm
- Weight: 14g
- Bearing Type: Top Ball Bearing
- Gear Type: Metal Gears
- Motor Type: 3-Pole Neodynium Magnet
- Connector Wire Length: 180mm
- Current Drain (4.8V): 5.3mA/idle and 140mA no load operating
- Current Drain (6.0V): 6.6mA/idle and 150mA no load operating
Package Includes:
- 1 x digital servo with servo horns
