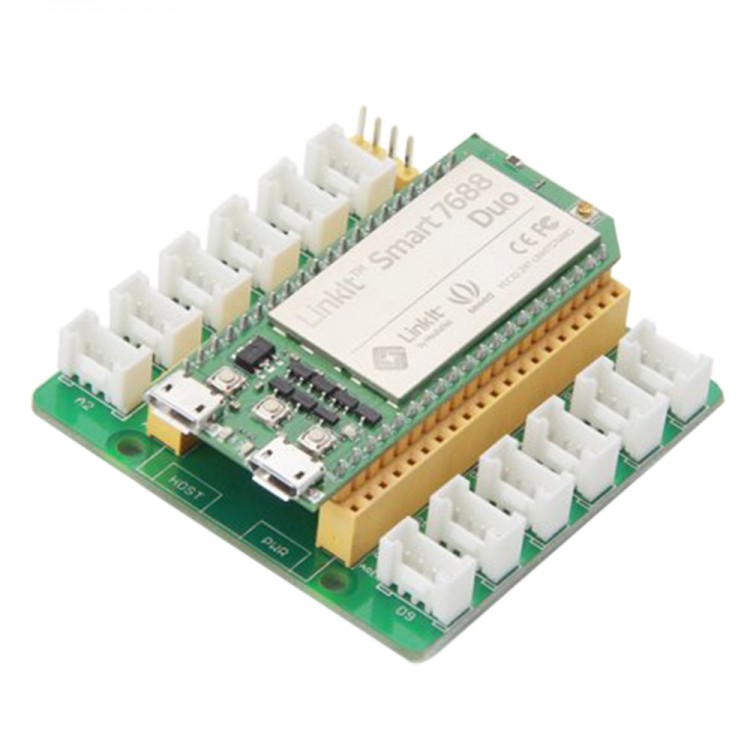

Grove Breakout for LinkIt Smart7688 Duo Sensor Development Board Expansion Module DIY
Description:
Grove Breakout for LinkIt Smart 7688 Duo is a Grove port integrated and featured expansion board for LinkIt Smart 7688 Duo development board. This breakout board will save a lot of work for quicker prototyping especially for novices through simplified wiring procedure. So it will help a beginner get fast at the start. It supports different usual bus and such as I2C, UART and reserve original pins of LinkIt Smart 7688 Duo.
LinkIt Smart 7688 Duo(a compact controller board) is an open development board, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich Application IoT devices for smart house.
Features:
- 1 x Ethernet to conect internet
- 1 x USB 2.0 for more peripherals
- Grove interfaces: I2C × 3, Analog× 3, Digital× 6
Specification:
- Input voltage: 5.0V(With USB Power port)
- Operating voltage: 3.3V
- Debug pins conect with MT7688
- Other pins connect with ATmega32U4
Related Documents link: Click here
Packing List:
- 1 x Expansion Board
