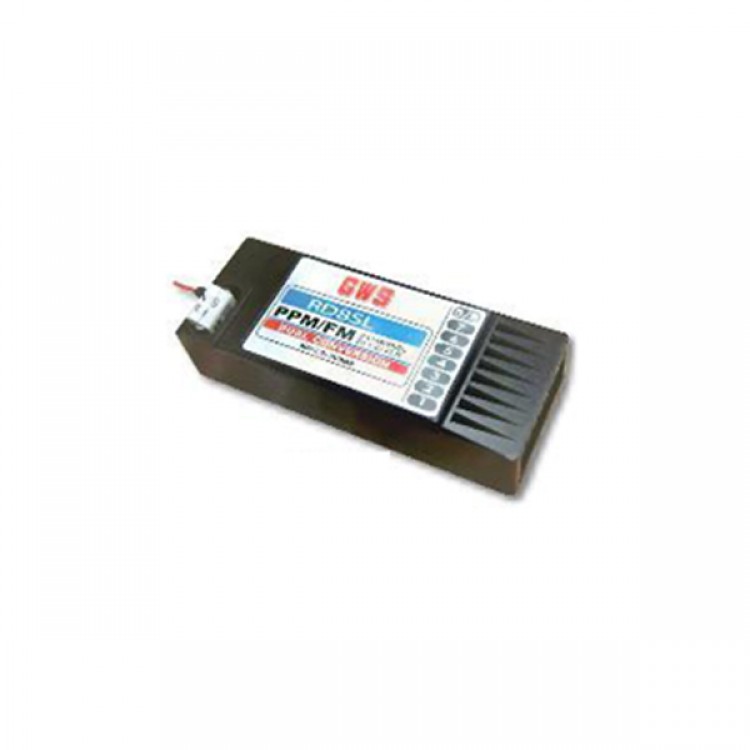

GWS RD8SL 8-channel 8ch Dual Conversion Receiver GWRXS001

Whole new designed, active front end with dual gate MOS-FET to improve the inter-modulation and interference suppression. The AGC (Automatic Gain Control) stage features a broad regulatory range and ensures optimum reception both at close and long range.

Specifications:
- Model: GWRXS001
- Channels: 8ch
- System: FM (PPM) Dual Conversion
- Voltage: 4.8~7.2v
- Current Drain: 10mA
- Size:65x25x15.5mm
- Range:600mtr+ / 2000ft
- Sensitivity : 1V
- Adjacent channel rejection : better than 65dB at 10k Hz
- Image rejection : better than 65dB
- Spurious rejection : better than 80dB
- Inter modulation : better than 65dB
- Frequency selectable:
35MHZ
36MHZ
40MHZ
41MHZ
72MHZ
75MHZ
