USB to CAN Analyzer USB-CAN Converter Adapter Dual-Channel Support ZLGCANpro
Description
- CANalyst-II
- Performance and technical indicators
- USB and CAN bus protocol conversion;
- USB-CAN-1 (x) has a channel CAN interface;
- USB-CAN-2 (x) with 2-channel CAN interface;
- CANalyat-II analyzer has two CAN interfaces;
- USB interface supports USB2.0 compatible with USB1.1;
- support CAN2.0A and CAN2.0B agreement, supports standard and extended frames;
- support bidirectional transmission, CAN transmit, CAN receiver;
- supports data frame, remote frame format;
- CAN controller baud rate between 10Kbps-1Mbps optional software configuration;
- USB-CAN-(x) A series of products: CAN bus interface is not isolated;
- USB-CAN-(x) B / C series: CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supply;
- CANalyst-II analyzer: CAN bus interface with high-speed magnetic coupling isolation, isolated DC-DC power supply;
- Maximum flow: each CAN channel for receiving the 8000 / s, and send to 8000 / s;
- internal CAN send buffer capacity of 1000 per channel (sending failed automatic retransmission) CAN receive buffer capacity of 2500 per channel;
- USB bus powered directly, eliminating the need for an external power supply;
- USB-CAN-(x) A series of products, the isolation module insulation voltage: not isolated;
- USB-CAN-(x) B Series products, isolation module insulation voltage: 1000V;
- USB-CAN-(x) C series products, isolation module insulation voltage: 2500V;
- CANalyst-II analyzer, isolation module insulation voltage: 2500V;
- Operating Temperature: -20 ~ 85 ℃;
- Shell Size: 70 * 45 * 24mm.
- Compatibility: library similar to Luminary the company ZLG-USBCAN interface adapter.
- Product of USB_CAN interface adapter can take advantage of the CANTools software tools, direct CAN bus configuration, send and receive. Users can also reference the DLL dynamic link library, VC / VB routine to write your own applications, to facilitate the development of application software products CAN system.
Typical applications
- PC or laptop's USB interface to send and receive CAN bus network;
- the fast CAN network data collection, data analysis;
- CAN bus-USB gateway;
- USB interface to CAN network interface;
- extend the length of the CAN bus network communications;
- Industrial CAN network data monitoring;
- CAN-bus network debugging and testing;
- CAN2.0A/2.0B packet analysis;
- iCAN protocol analysis;
- DeviceNet protocol analysis;
- CANopen protocol analysis;
- SAE J1939 protocol analysis.

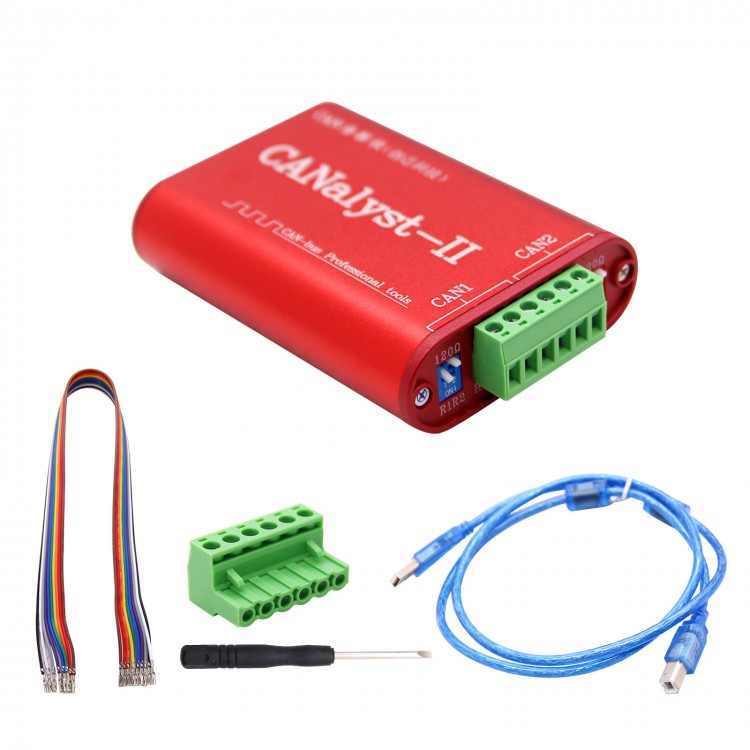

Package List:
- 1* Adapter host
- 1* CD
- 1* USB Cable
- 1* 8P terminals
- 1* Screwdriver
