HDPM01 Electric Barometer + Compass Module with Altitude

HDPM01 Electric Barometer + Compass Module with Altitude

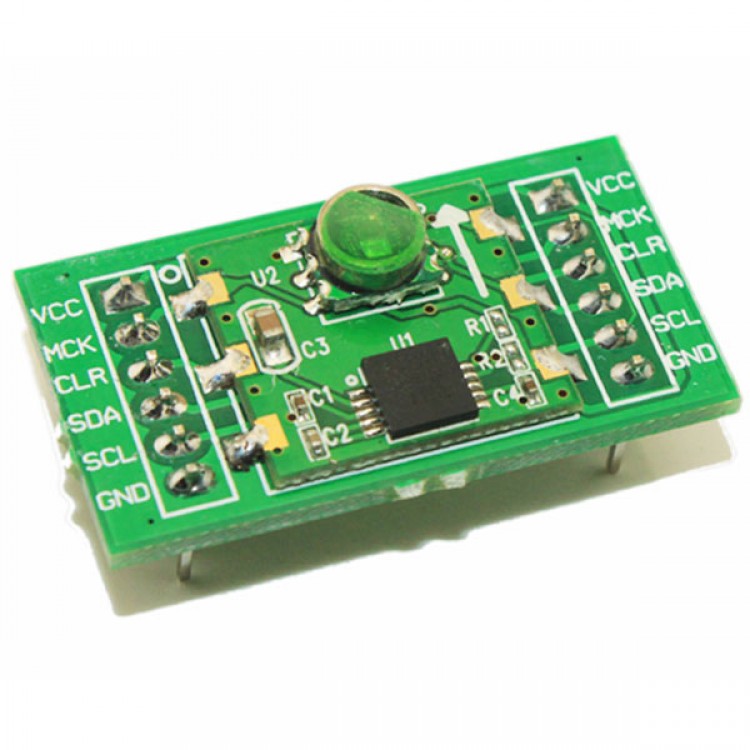

The Heading Breakout is a small board containing the HDPM01 compass module(Compass module with altitude),can be developed for outdoor products.

The HDPM01 pressure module includes a piezo-resistive pressure sensor and an ADC interface. It provides 16 bit word data for pressure and temperature related voltage. With the help of a highly accurate calibration of the senor, 11 unique coefficients were stored on the chip, thus accurate pressure and temperature reading can be realized. HM03 is a low power, low voltage device with automatic power down switching. I2C Serial Interface is used for communications with a microprocessor. Sensor packaging options are SMD (with metal cap)

The HDPMO1 is a dual-axis magnetic sensor, it is a complete sensing system with on-chip signal processing and integrated I2C bus, allowing the device to be connected directly to a microprocessor eliminating the need for A/D converters or timing resources. It can measure magnetic field with a full range of ±2 gausses and a sensitivity of 512counts/gauss @3.0 V at 25°C.

Specifications:
- Operation voltage: 2.2V~3.6V
- Operation temperature: -20°C to + 60°C
- No need external circuits
- High speed IIC protocol, speed upt to 400Khz
- Stand 2.54 pins, can be used directly on bread board.

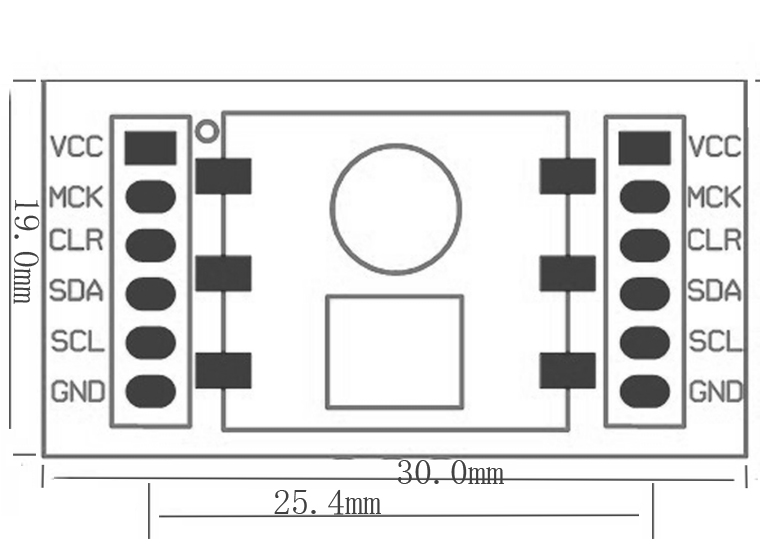

- Dimension: 30 x 19 x 1.6mm

Documents:
Datasheet
Schematic
Compass module programming guide

Package includes:
- 1 x HDPM01 Compass Breakout
