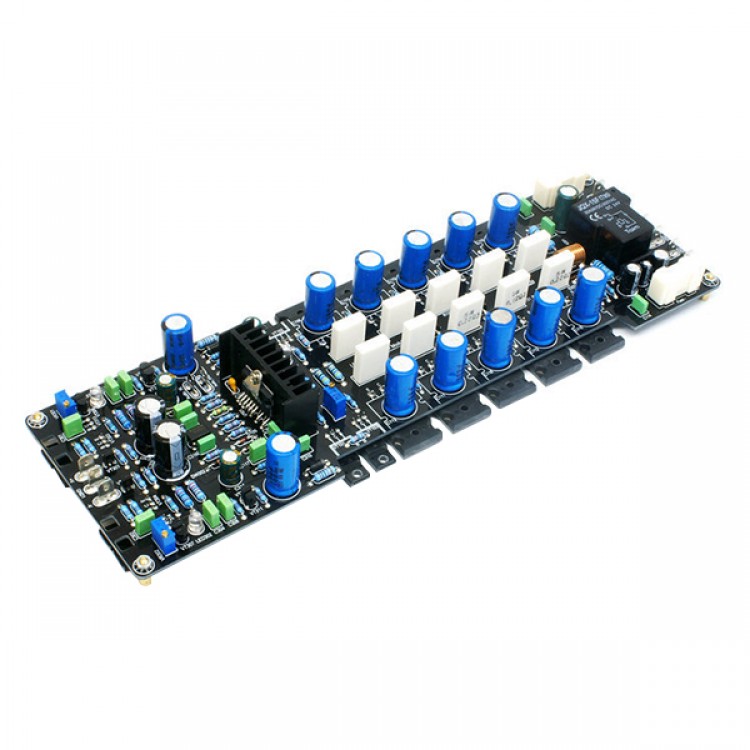

High-end Pure Class LME49830+2SK1530+2SJ201 FI-FI 400W Mono Power Amplifier Board

Description:
- LME49830 chip main parameters:
- Wide voltage range of ± 20V to ± 100V
- Slew Rate 39V/μs
- Driving Current 60mA (typ)
- PSRR (f = DC) 105dB
- Total harmonic distortion + noise (f = 1kHz) 0.0006

Electrical Characteristics:
- PCB size:  298.5 x 93.5 mm
- Work status: type A and B (according to the need to adjust into the CPI)
- Output power:  400W*(4ω)<* V=±60V>
- Operating voltage: Recommended voltage driver stage  DC±65V /  output stage DC±55V
- Input interface: mono signal input
- Output Interface: mono speaker output
- Power mode: dual power mode, the voltage drive and current power output level to separate power supply, can also be voltage level and current level of merger supply, freedom of choice.

Packing included:
- 1*LME49830+K1530/J201 Mono Power Amplifier Board
